What Is a 180 Ohm Resistor and Why Does It Matter in Electronics
A 180 ohm resistor is a passive two-terminal component that limits current flow to a fixed resistance of 180 ohms in an electronic circuit. It belongs to both the E12 and E24 standard value series, which means it is widely stocked and easily sourced worldwide. In practice, this specific resistance value is not arbitrary: it sits precisely between the 150-ohm and 220-ohm steps in the standard series, making it the preferred choice when designers need to limit LED current to a safe range, create low-impedance voltage dividers, condition analog signals, or protect sensitive input pins on microcontrollers.
For technicians working with AC motor systems — particularly those who service equipment using a CBB60 capacitor — the 180 ohm resistor appears in a completely different context: as a discharge tool. Before measuring or replacing a CBB60 capacitor on a water pump, washing machine, or single-phase AC motor, the stored charge must be safely bled away through a resistor connected across the terminals. Understanding both roles of this component — precision circuit control and safe capacitor discharge — gives engineers and technicians a clear, practical foundation.
- Tolerance: ±1% to ±5%
- Power: 1/4W to 2W+
- Range: 171Ω – 189Ω (±5%)
180 Ohm Resistor Color Code: How to Read It Correctly
Resistors use printed color bands as their identification system because text markings would be too small to read on the component body. The color code for a 180 ohm resistor follows a specific and recognizable pattern once you know the system.
Reading left to right: the first band (brown) gives the digit 1, the second band (grey) gives the digit 8, the third band (brown) is the multiplier of 10, and the gold band at the end indicates ±5% tolerance. So the calculation is 18 × 10 = 180 ohms. For applications requiring tighter precision, a five-band version is available with the sequence Brown–Grey–Black–Black–Brown, delivering a ±1% tolerance that restricts actual resistance to between 178.2Ω and 181.8Ω.
One practical note: grey bands can appear bluish or violet under poor workshop lighting. When in doubt, always verify with a digital multimeter set to resistance mode rather than relying on visual identification alone. This is especially relevant when sourcing replacement components from mixed component bins.
| Band Position | Color | Meaning (4-Band) | Meaning (5-Band) |
|---|---|---|---|
| 1st Band | Brown | Digit: 1 | Digit: 1 |
| 2nd Band | Grey | Digit: 8 | Digit: 8 |
| 3rd Band | Brown | Multiplier: ×10 | Digit: 0 |
| 4th Band | Gold | Tolerance: ±5% | Multiplier: ×1 |
| 5th Band | — | Not applicable | Tolerance: ±1% (Brown) |
Types of 180 Ohm Resistors and Their Construction Differences
Not all 180 ohm resistors are built the same way. The resistance value is identical across types, but the internal construction — and therefore the noise performance, stability, size, and cost — varies significantly. Choosing the wrong type for an application is a common source of circuit unreliability, especially in precision analog designs.
Built from a blend of carbon particles and a ceramic-resin binder, these resistors have a tolerance of 5–20% and relatively high noise. They absorb energy surges well and were common in older equipment. For modern circuits, they are largely replaced by better alternatives, though they still appear in vintage restoration projects and high-surge-energy applications.
A thin metal alloy film deposited on a ceramic substrate, laser-trimmed to precise values. Tolerance is typically 1–5%, with much lower noise and better thermal stability than carbon composition. This is the standard choice for audio circuits, instrumentation amplifiers, and any design where signal integrity matters. For precision voltage dividers used alongside sensitive sensors, metal film at 1% is the correct default.
Surface-mount devices in packages such as 0402, 0603, 0805, and 1206. These offer the smallest footprint and tolerance as low as 0.1%. They are the standard for production PCBs and compact consumer electronics. Through-hole resistors remain preferable for prototyping and repair work where hand soldering without magnification is the norm. The 0805 package is generally the smallest that can be reliably hand-soldered.
For motor control boards, amplifier output stages, and high-demand power supply applications, a standard 1/4W resistor simply cannot handle the heat. A 2W metal film 180 ohm resistor maintains stable resistance values under sustained electrical and thermal stress, making it the correct choice when continuous current dissipation is involved.
| Parameter | Carbon Composition | Metal Film | SMD Chip |
|---|---|---|---|
| Tolerance | 5–20% | 1–5% | 0.1–5% |
| Noise Level | High | Low | Low |
| Thermal Stability | Lower | Higher | Higher |
| Physical Size | Larger | Medium | Smallest |
| Best Use Case | Vintage / Surge Protection | Precision Circuits | Modern PCB Production |
Common Applications of the 180 Ohm Resistor in Circuit Design
The 180 ohm value occupies a specific functional niche in circuit design. It is not as universally placed as 100Ω or 1kΩ, but it fills gaps in LED driver design, low-impedance voltage dividers, and digital logic biasing where neither 150Ω nor 220Ω provides the right operating point.
LED Current Limiting
The most common use for a 180 ohm resistor in hobbyist and production electronics is limiting current through a light-emitting diode. With a 5V supply and a standard red or green LED dropping 2V across its junction, the remaining 3V falls across the resistor. Using Ohm's Law: I = V/R = 3V / 180Ω = 16.7mA. This falls within the safe operating range for most standard LEDs, which are rated at 20mA maximum, and stays well below the typical 40mA output limit of a microcontroller GPIO pin. For blue LEDs with a higher 3.2V forward voltage on a 5V supply, the calculation yields exactly 10mA through a 180Ω resistor — a clean, safe current for indicator purposes.
Voltage Divider Circuits
A pair of 180 ohm resistors forms a precise 2:1 voltage divider. When dividing a 12V supply toward a 5V microcontroller ADC input, a 180Ω upper resistor combined with an 82Ω lower resistor produces approximately 3.3V at the midpoint — matching common 3.3V logic levels. The total current through this low-impedance divider is I = 12V / 262Ω = 46mA, dissipating about 0.55W, which means 1W resistors should be used. This low-impedance design benefits sensor circuits because it minimizes the effect of input resistance on measurement accuracy.
Pull-Up and Pull-Down Resistors in Digital Logic
In digital circuits, floating input pins can pick up electromagnetic noise and randomly switch between logic HIGH and LOW, producing unpredictable behavior. A pull-up resistor connects the input pin to the supply voltage (VCC) through a fixed resistance, so when the external switch or sensor is open, the pin reads HIGH. A pull-down resistor does the opposite. While 10kΩ is the default pull-up value in many designs, 180Ω pull-ups are used when the circuit must switch states very quickly — the lower resistance charges and discharges the pin's stray capacitance faster, reducing rise and fall times in high-speed digital designs.
Amplifier Biasing and Signal Conditioning
Transistor amplifiers require a stable DC bias current at the base to set the operating point in the linear region. A 180 ohm resistor in the bias network provides precisely this base current, determining both gain and input impedance. In signal conditioning circuits, resistor networks built around 180Ω components handle attenuation, impedance matching, and filtering before signals reach analog-to-digital converters. Impedance matching at 180Ω prevents signal reflections in transmission line systems, preserving signal integrity across long cable runs or high-frequency designs.
The 180 Ohm Resistor and CBB60 Capacitor: Discharge and Testing Procedures

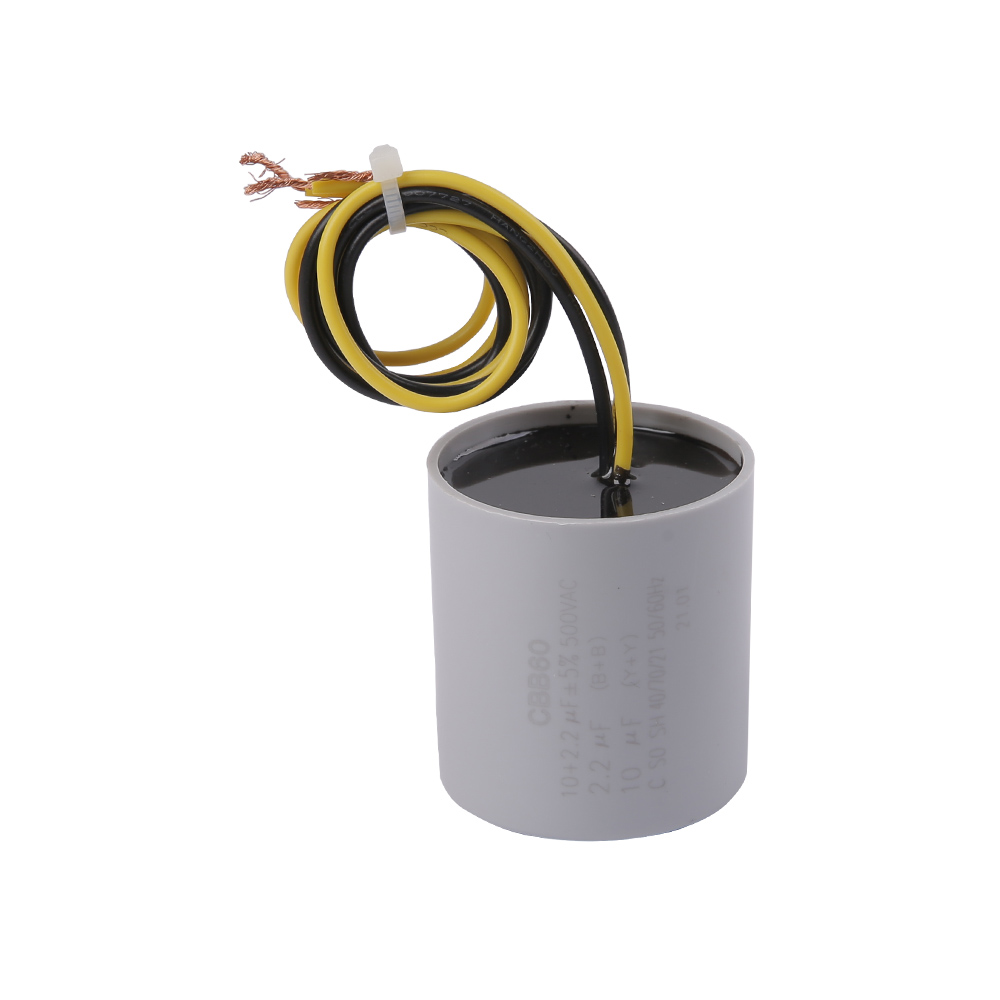

One of the most safety-critical applications of resistors in AC motor service work involves discharging a CBB60 capacitor before handling or measurement. A CBB60 capacitor is a metallized polypropylene film capacitor designed for continuous-duty motor run applications in single-phase AC circuits. It is used in water pumps, washing machines, ceiling fans, cleaning equipment, and air conditioning systems. Unlike electrolytic start capacitors that engage for only a few seconds during startup, the CBB60 remains connected across the motor's auxiliary winding the entire time the motor operates.
After the motor is switched off, a CBB60 capacitor can retain a dangerous residual voltage across its terminals. This charge does not dissipate instantly on its own. Before connecting a multimeter to test the capacitance value, or before unbolting and replacing the component, the stored energy must be safely bled away. A resistor connected momentarily across the two terminals provides this discharge path.
Recommended Resistor Values for CBB60 Capacitor Discharge
The appropriate resistor value depends on the capacitance of the CBB60 unit being serviced:
- Small capacitance values (1–10µF): A 100Ω resistor discharges quickly with a short time constant. Momentary contact is sufficient.
- Mid-range values (10–50µF): Resistors in the 150Ω to 220Ω range — including a 180 ohm resistor — work well. Hold the resistor leads across the terminals for 5–10 seconds.
- Larger values (above 50µF): Use 10kΩ or higher to avoid excessive current spikes during the initial discharge phase.
For a typical 25µF CBB60 motor run capacitor operating at 250VAC, using a 180 ohm resistor rated at 2W or above safely dissipates the stored charge. The time constant (RC) = 180Ω × 25×10⁻⁶F = 4.5 milliseconds, meaning the voltage drops to approximately 37% of its initial value within 4.5ms and approaches zero within about five time constants (22.5ms).
What Is a CBB60 Capacitor and Where Is It Used

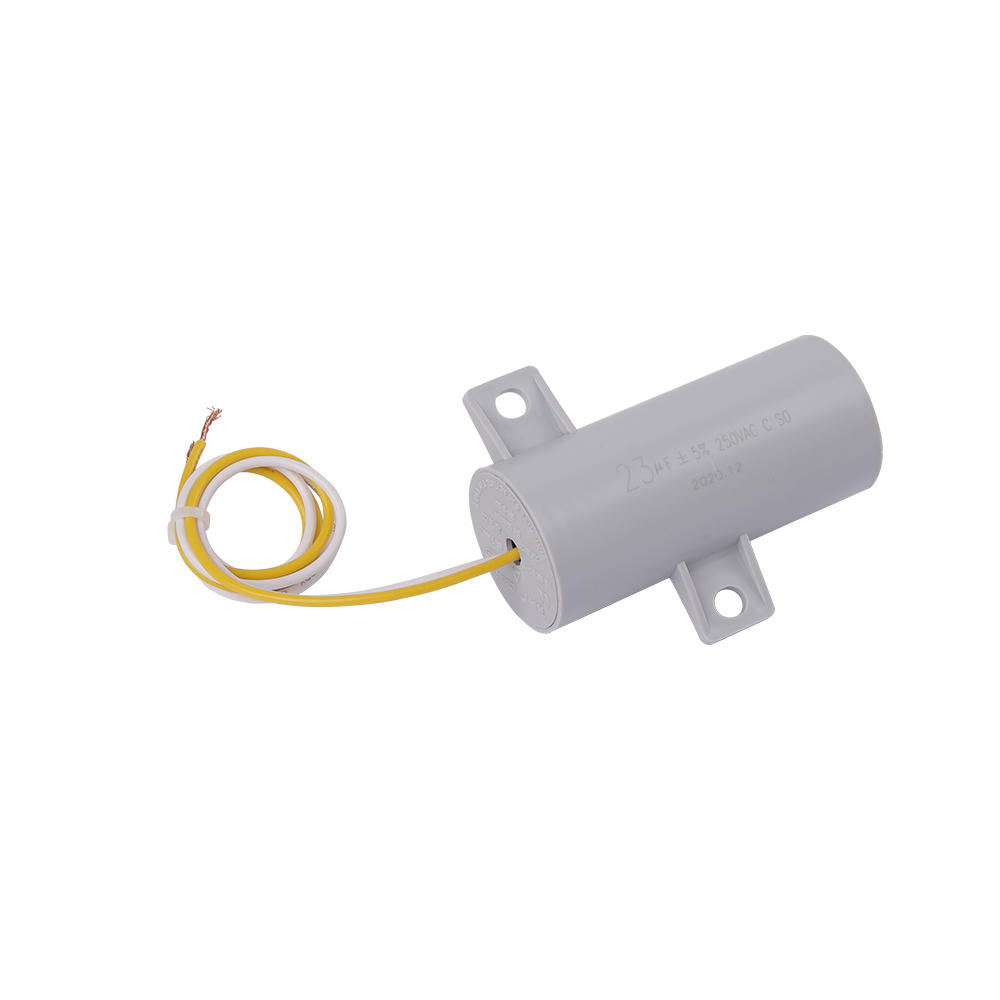

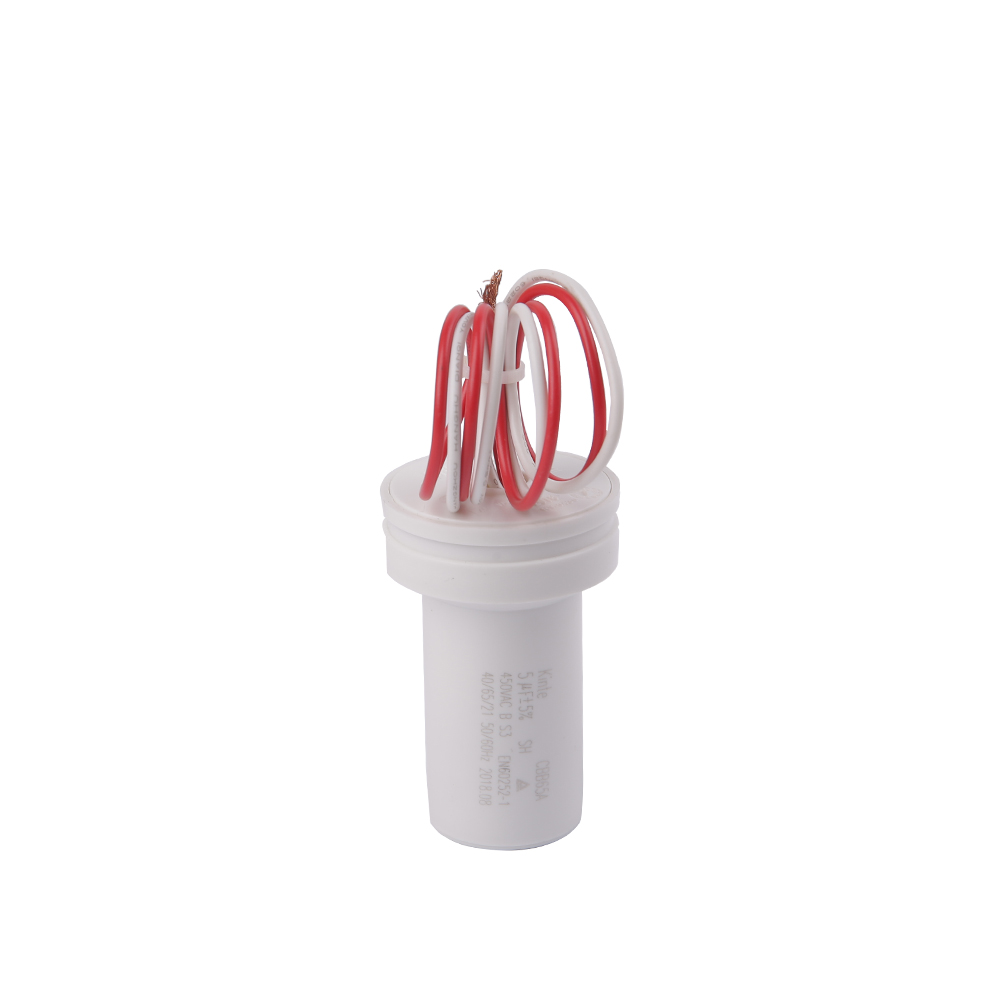

The designation CBB60 breaks down systematically: "C" identifies it as a capacitor, "BB" specifies the dielectric material as polypropylene (a non-polar organic film), and "60" denotes the cylindrical plastic-cased form factor designed for motor run and start applications. CBB60 capacitors are encapsulated with resin and housed in a self-extinguishing plastic case, providing superior reliability against mechanical shock and vibration. Their low-loss metalized polypropylene film construction allows them to operate continuously at rated AC voltage without degradation — a characteristic that distinguishes them from aluminum electrolytic types that are only suited for brief startup duties.
Available voltage ratings typically include 250VAC and 450VAC, with capacitance values spanning from 1µF to 100µF depending on the motor application. Single-phase asynchronous motors — the workhorse design found in residential pumps, washing machine drums, and fan assemblies — require a CBB60 motor run capacitor permanently connected to the auxiliary (start) winding. This capacitor creates the necessary phase shift between the main and auxiliary windings, generating the rotating magnetic field that produces torque. Without it, or with a capacitor that has drifted more than 10% below its rated value, the motor will either fail to start or overheat under load.
How to Test a CBB60 Capacitor Using a Resistor and Multimeter
Testing a suspect CBB60 capacitor requires two things: a safe discharge path and a multimeter with a capacitance measurement function. The complete procedure is as follows:
- Disconnect all power to the motor. Confirm with a voltage tester that no AC supply is present.
- Identify the CBB60 capacitor terminals. Two-pin and four-pin configurations are common; discharge all terminal pairs.
- Connect a resistor of appropriate value (100Ω to 1kΩ for typical CBB60 sizes) across the terminals using insulated test leads. Hold for at least 10 seconds.
- Set the digital multimeter to capacitance mode (µF). Connect the probes to the capacitor terminals.
- Read the measured capacitance. If the reading is more than 10% below the rated value printed on the label, the capacitor should be replaced even if the motor is still running. A degraded CBB60 forces the motor winding to draw excess current continuously, shortening motor life.
When replacing a CBB60 capacitor, the capacitance value must be matched exactly. Using a 30µF unit in place of a rated 25µF capacitor pushes approximately 20% more current through the auxiliary winding than the motor manufacturer designed for. The voltage rating, on the other hand, may be equaled or exceeded safely — a 450VAC-rated CBB60 works correctly in any circuit that originally specified a 250VAC rating of the same capacitance.
Ohm's Law Calculations with a 180 Ohm Resistor: Practical Examples
Understanding how to apply Ohm's Law (V = IR) with a 180 ohm resistor removes guesswork from circuit design and troubleshooting. The following worked examples cover the most common scenarios encountered in real-world electronics work.
I = 9V ÷ 180Ω
= 50mA
= 3V ÷ 180Ω
= 16.7mA
P = (3V)² ÷ 180Ω
= 50mW
V = 0.02A × 180Ω
= 3.6V
One important design principle: when a calculation yields 165Ω as the ideal value, using a 180 ohm resistor from stock is a reasonable substitution — the LED will operate at slightly reduced brightness but within safe limits. If the calculation yields 195Ω, using a 180 ohm resistor will deliver a few milliamps more than calculated; for most general-purpose LEDs this remains safe, but it should be verified against the LED's maximum current specification before proceeding.
How to Select the Right 180 Ohm Resistor for Your Application
Selecting a resistor by value alone is an incomplete specification. Four additional parameters — type, power rating, tolerance, and package — determine whether the component will perform reliably in a given application.
Power Rating (Wattage)
Calculate the actual power the resistor will dissipate using P = I²R or P = V²/R. Then select a resistor with a rating at least double the calculated value. For LED current limiting at 5V with 16.7mA, the dissipation is P = (0.0167)² × 180 = 50mW. A standard 1/4W (250mW) resistor handles this with a 5× safety margin. For a 12V voltage divider passing 46mA, dissipation is P = (0.046)² × 180 = 381mW, which requires a 1W resistor minimum. Always calculate before selecting, not after.
Tolerance: 5% vs 1%
A 5% tolerance on a 180 ohm resistor means the actual measured value may be anywhere between 171Ω and 189Ω. For LED circuits, audio amplifier bias, and most general-purpose applications, this spread is completely acceptable. For precision voltage dividers feeding ADC inputs, instrumentation amplifiers, or reference circuits where a 2Ω error causes a measurable offset, 1% metal film resistors are the correct specification. The price difference between 5% carbon film and 1% metal film in 1/4W packages is typically under $0.05 per unit in small quantities.
Package: Through-Hole vs SMD
Through-hole 1/4W resistors measure approximately 6mm in body length with 0.55mm lead diameter. They insert into breadboards reliably, handle repeated insertion and removal better than surface-mount parts, and can be soldered with a standard iron without magnification. SMD packages (0805 is the smallest practical for hand assembly without optical aids; 0603 requires magnification) are the standard for all production PCBs designed for automated pick-and-place assembly. Mixing through-hole and SMD on the same board adds assembly cost; match the package to the overall board design philosophy.
Temperature Coefficient
The temperature coefficient of resistance (TCR) describes how much the resistance changes per degree Celsius. Carbon film resistors typically have a TCR of ±200 to ±500 ppm/°C. Metal film resistors achieve ±25 to ±100 ppm/°C. For equipment operating in a narrow indoor temperature range (15–35°C), this difference rarely matters. For outdoor industrial equipment, automotive electronics, or anything exposed to temperature swings of 60°C or more, a high TCR can shift the actual resistance by several percent over the operating range — enough to meaningfully affect circuit behavior. In such cases, specify a metal film 180 ohm resistor with a TCR rating explicitly stated in the BOM.
Practical Questions About 180 Ohm Resistors Answered
In non-critical applications, staying within ±10% of the specified value is generally acceptable. A 150Ω or 220Ω resistor will both work in most LED circuits, though brightness will vary slightly. For precision applications — reference voltages, bridge circuits, instrumentation — substitution is not recommended without recalculating the effect on output accuracy.
Set a digital multimeter to the resistance measurement mode. Touch the probes to each lead. The display should read between 171Ω and 189Ω for a 5% unit, or 178.2Ω to 181.8Ω for a 1% unit. If the reading shows "OL" (overload/open) or a value far outside these limits, the resistor has failed and should be discarded. Do not rely on visual color-code reading alone for critical circuits — always measure.
Using a resistor that is too low in value (such as 3Ω or 10Ω) will create a very short time constant and a very high instantaneous current surge at the moment of connection. For a 25µF CBB60 capacitor charged to 340V peak (corresponding to 240VAC), the initial discharge current through a 10Ω resistor would be 34A — far above what most general-purpose resistors can handle, potentially causing the resistor to fail open or explode. Using an excessively high value (such as 1MΩ) is safe but slow; for a 25µF capacitor, the RC time constant would be 25 seconds, meaning 125 seconds (five time constants) to reach near-zero voltage. A value in the range of 100Ω to 10kΩ, matched to the capacitance being discharged, is the sensible operating range.
In low-power signal-level circuits within motor control boards — gate drive resistors for MOSFETs, current sense signal conditioning, feedback network voltage dividers — a 180 ohm resistor in standard 1/4W or 1/2W ratings works correctly. For power dissipation positions on the board, such as snubber networks across switching transistors or current-limiting paths in higher-voltage sections, a 2W or higher rated unit is required. Always check the board's schematic to identify whether a specific 180Ω position is a signal-level component or a power component before selecting a package.
