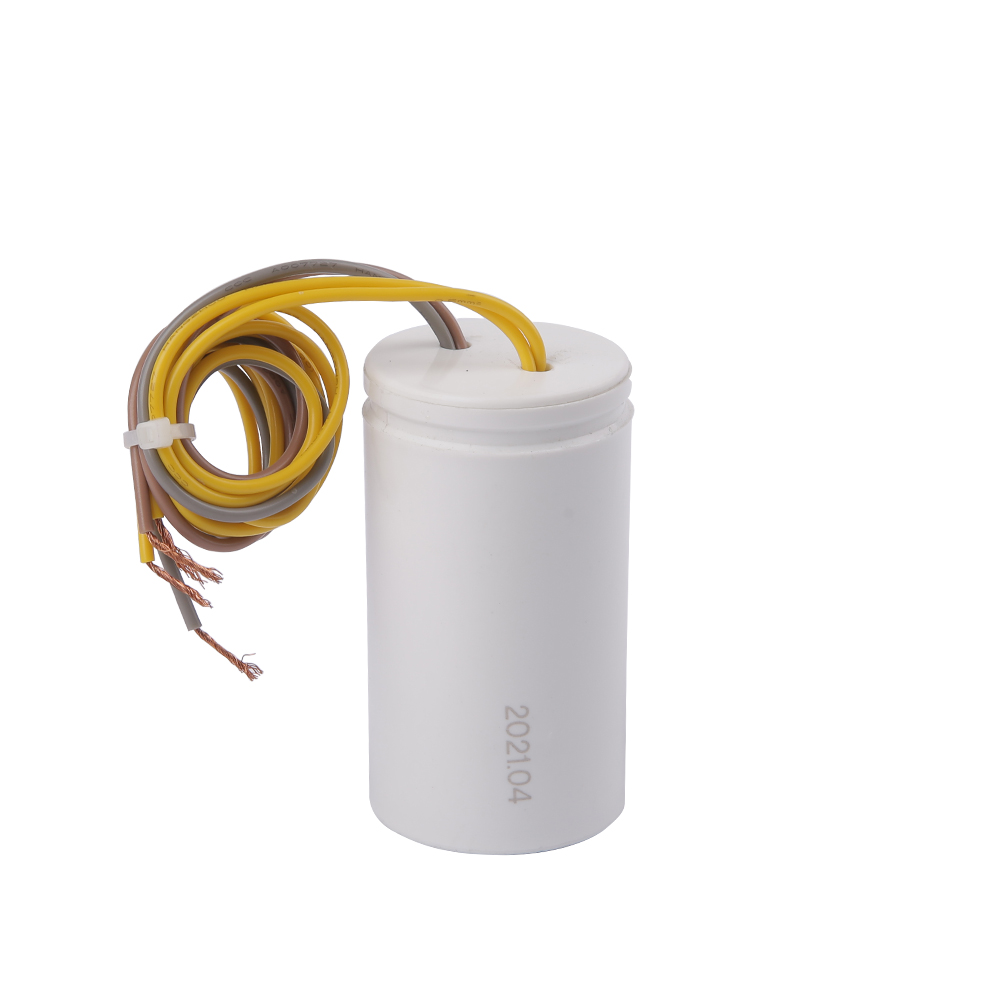

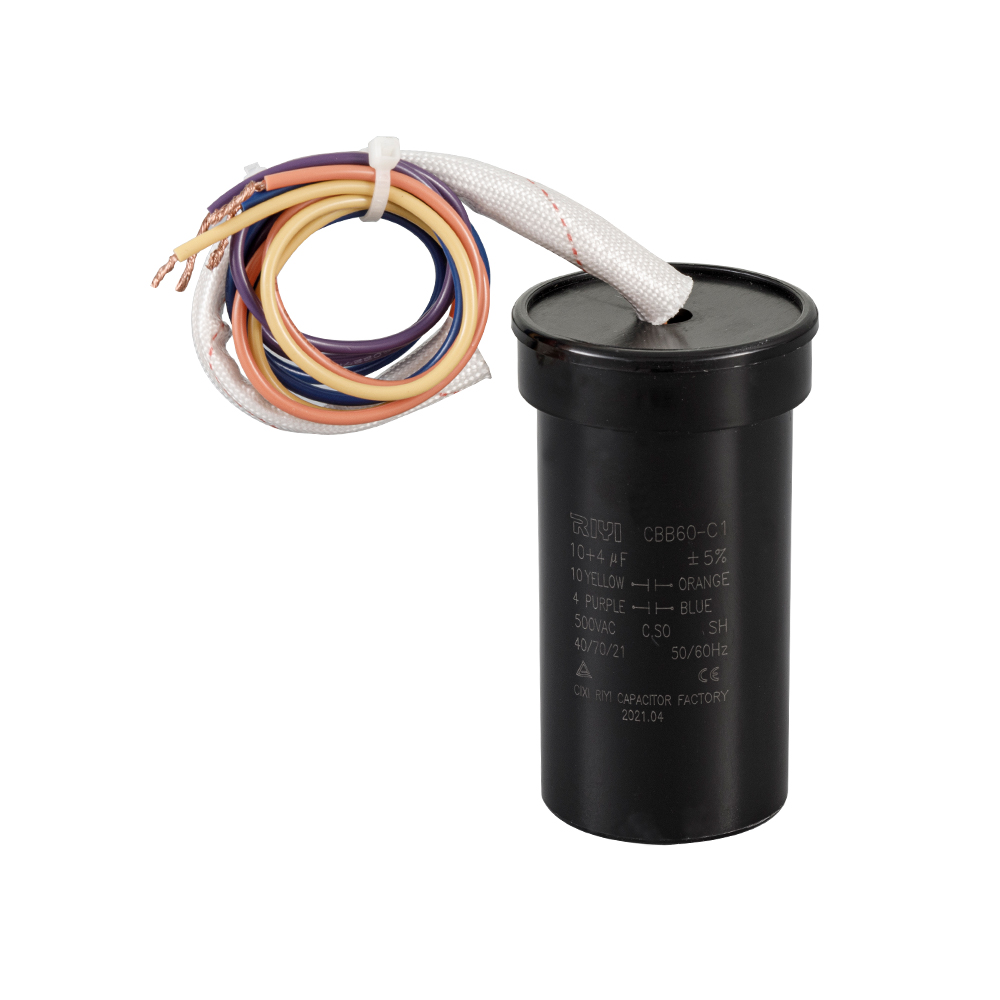

CBB60 AC Motor Capacitor

Home / Product / CBB60 AC Motor Capacitor

AC CBB60 Start & Run Capacitor Manufacturers

Company Profile

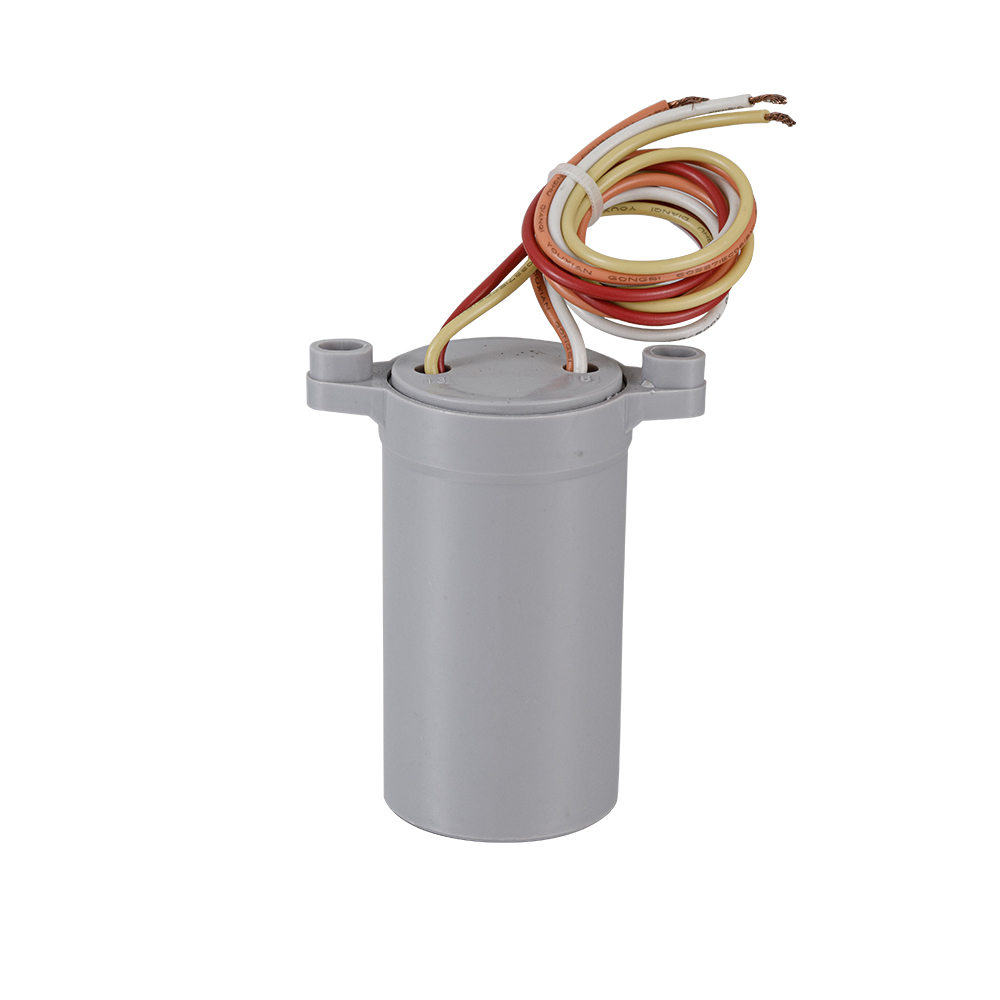

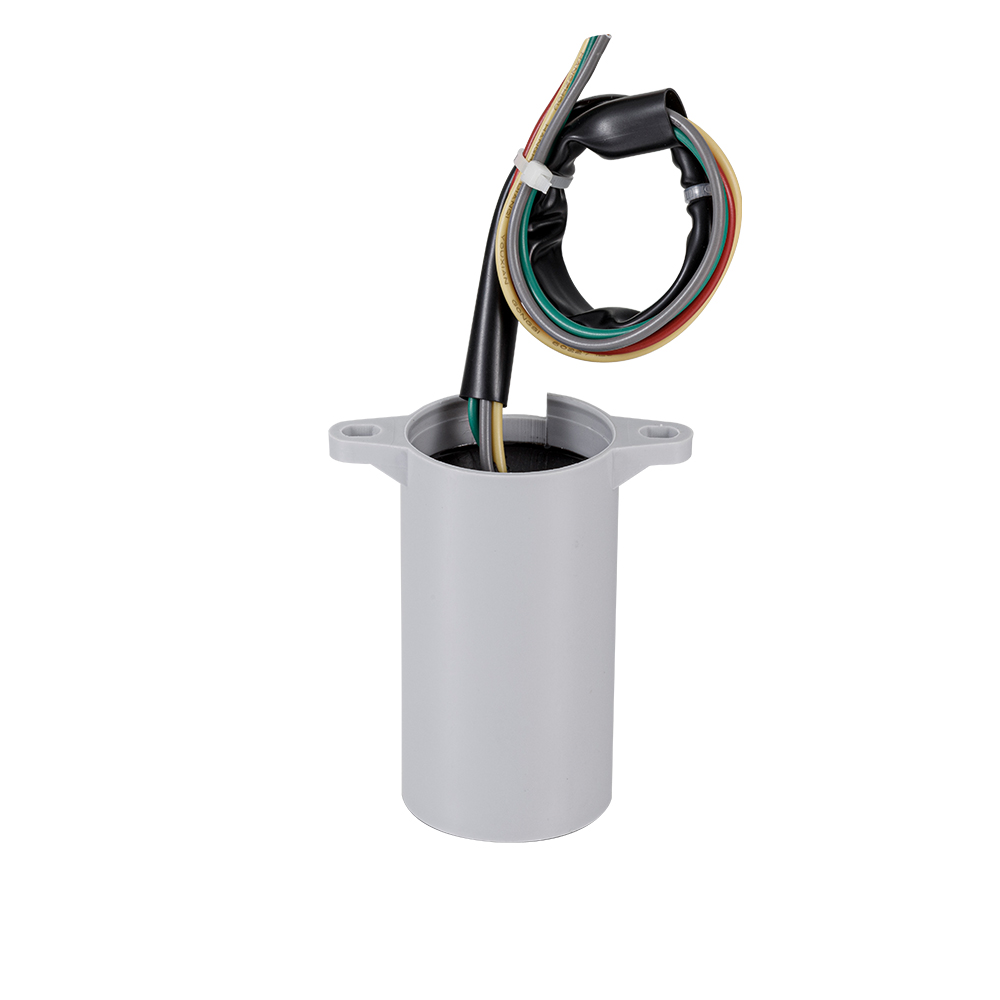

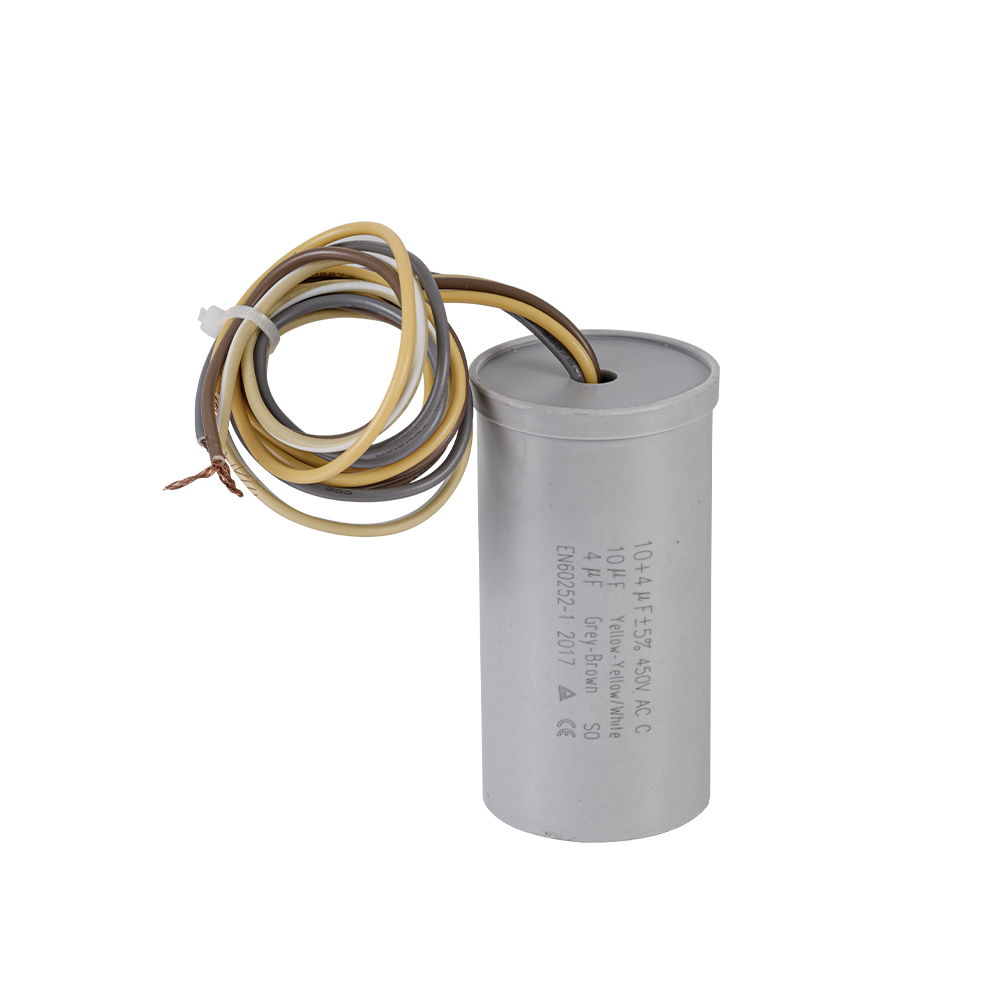

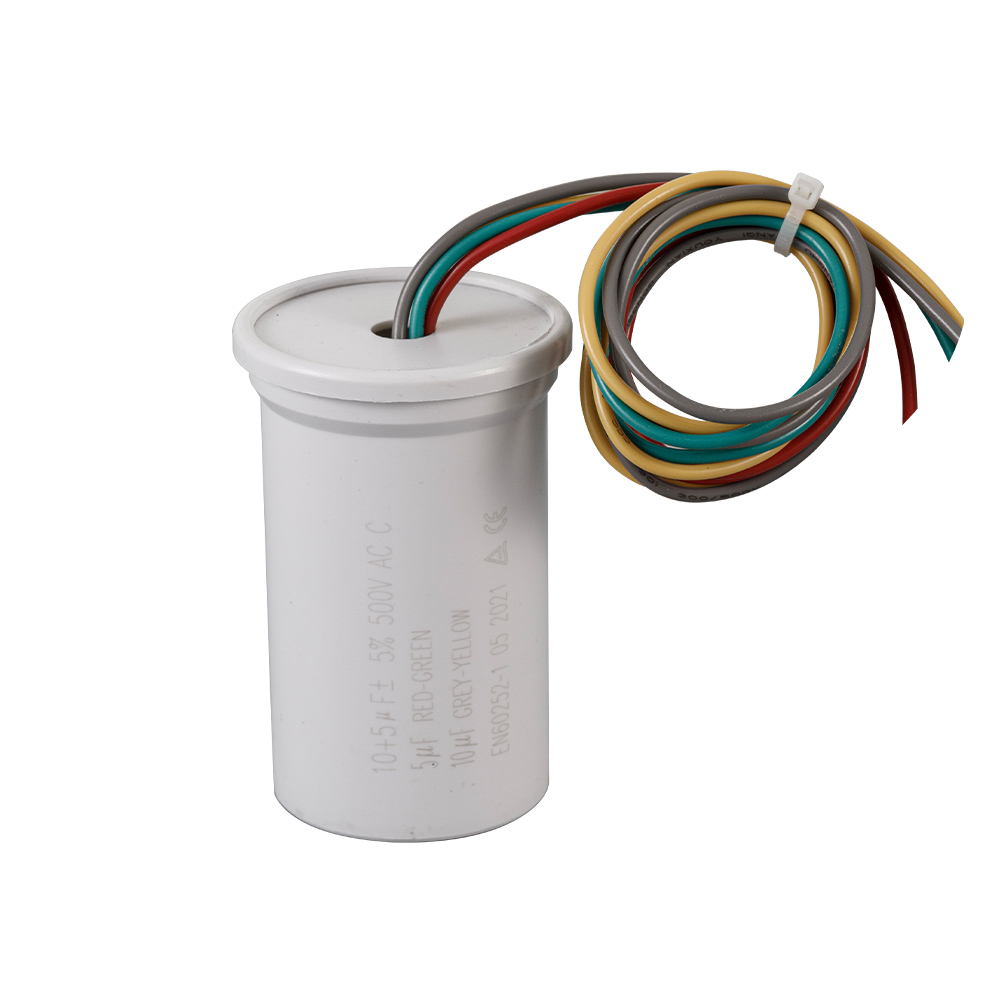

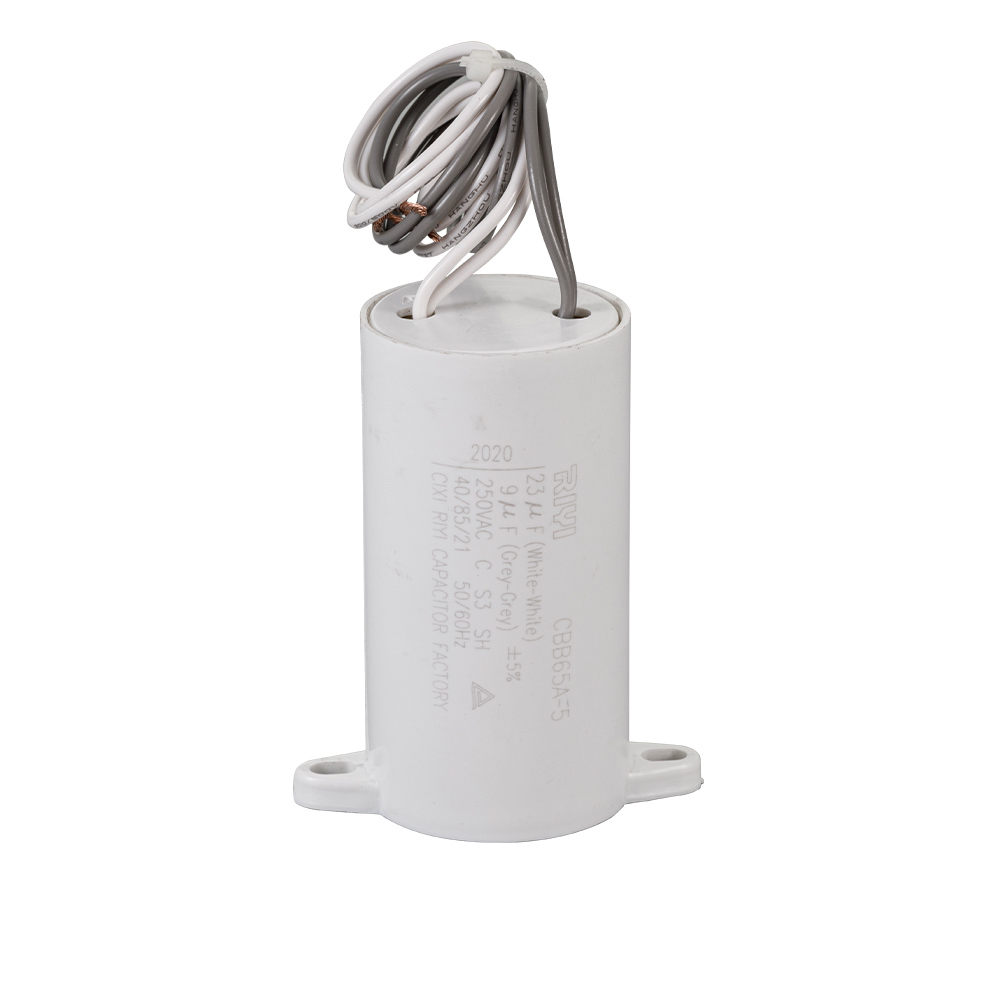

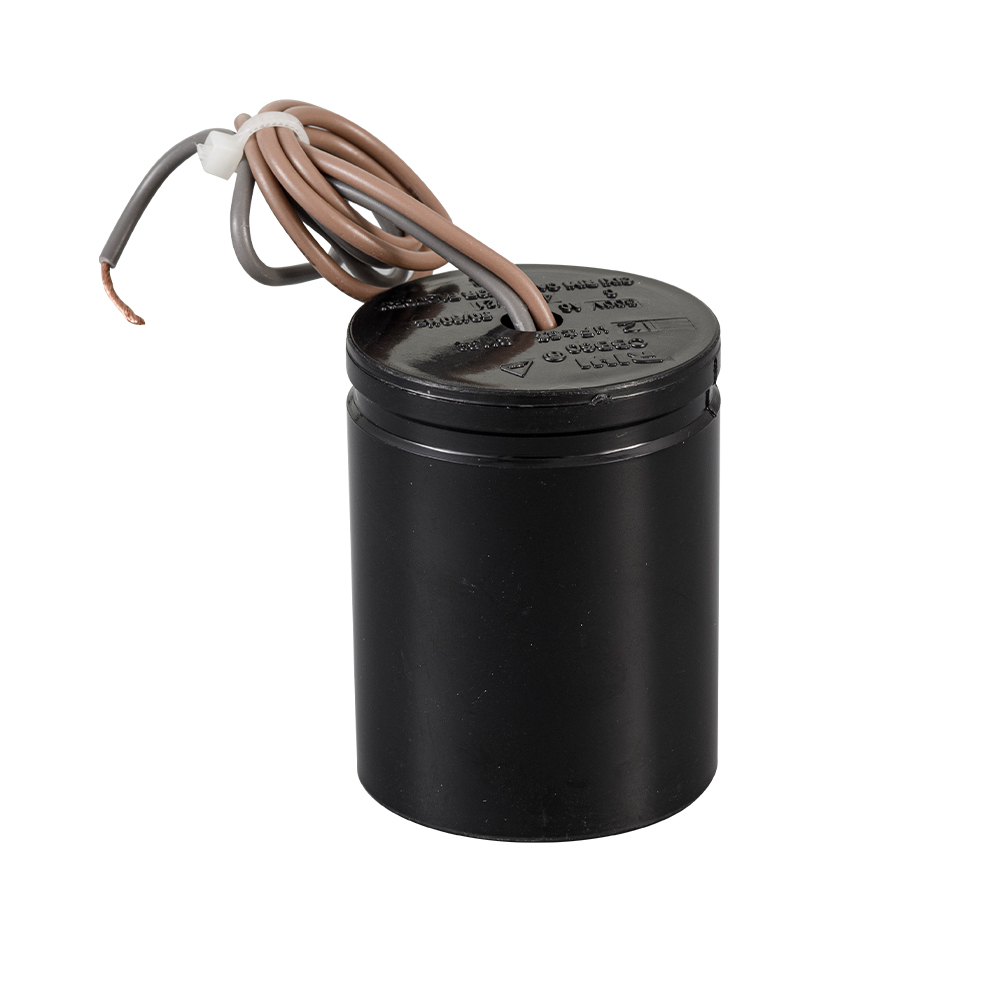

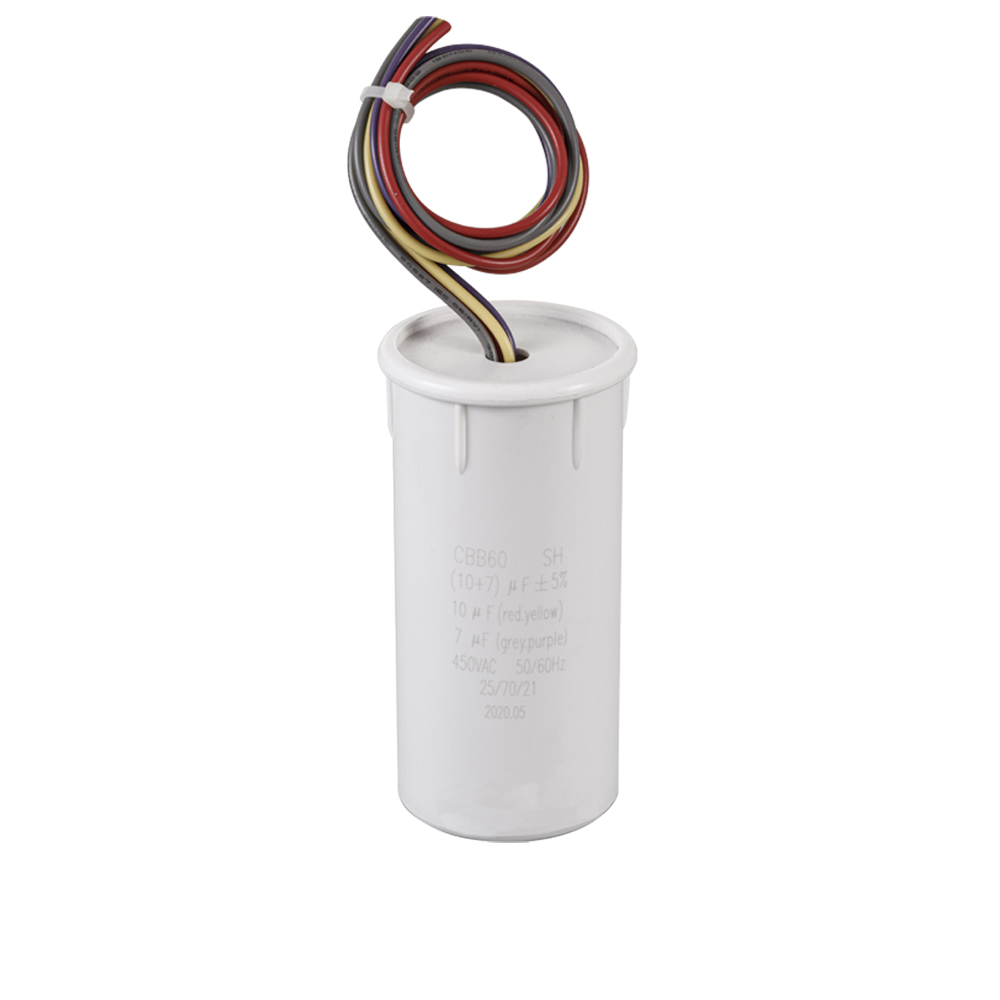

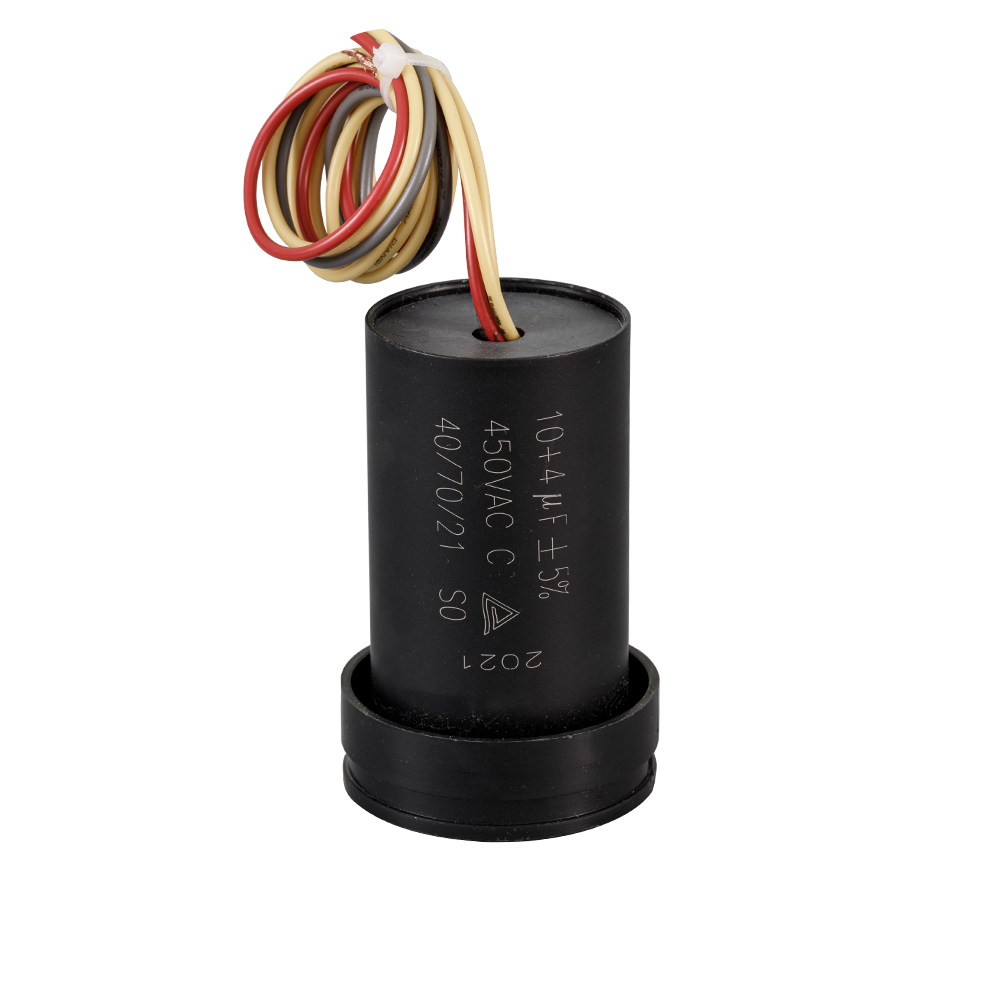

The product has the characteristics of low loss, high insulation resistance, good self-healing, stable performance, impact current resistance, and strong overload capability. The epoxy resin fully sealed structure is suitable for washing machines, air coolers, fans, range hoods, electric water pumps, etc., helping to start and run the motor.

Cixi Riyi Capacitor Factory is direct CBB60 Run Capacitor Manufacturers and China Start Capacitor suppliers. Our Capacitors varieties are diversified and applicable to a wide range of fields, such as washing machines, dryers, air conditioners, range hoods, water pumps, fans, motors, etc. We can wholesale CBB60 AC Motor Run And Start Capacitor. Many capacitors can be installed universally. We also can make customized products. We develop and produce products based on drawings or samples provided by customers. These Capacitors have been exported to dozens of countries such as the United States, Indonesia, the Philippines, Indonesia, Turkey, and Egypt. All kinds of products have obtained certificates such as CQC, TUV, VDE, IMQ, UL, CE, etc.
  • 25000+m²

    Factory area

  • 25 million+

    Annual output

  • 2 major ports

    transport

Honor

latest news

28

2023.06
What is a Capacitor?What are the symptoms of a bad AC capacitor?

What is a Capacitor?AC capacitors are used to store energy for a variety of electrical circuits. They also help reduce voltage spikes in the circuit and reduce the chance of fire or explosion.What are the sympt...

Read more

19

2023.06
What Are the Different Types of AC Capacitors?

Ac Capacitors store energy by separating charge carriers (electrons) in an electric field between two electrode plates. The amount of stored energy is a function of the material and the separation distance betw...

Read more

12

2023.06
What causes a capacitor to fail?

Ac CapacitorAs you can imagine, they're susceptible to wear and tear. They're also extremely sensitive to overheating. They can even become damaged by regular power surges and short circuits.When a capacitor fa...

Read more

05

2023.06
How does an AC capacitor work?

Capacitors are the heart of your home's air conditioning system, and they're one of the most important components for effective operation. They're responsible for giving your air conditioner the initial jolt of...

Read more

31

2023.05
What Are the Signs That My AC Capacitor is Failing?

A failing AC capacitor can cause your AC unit to be inefficient and unresponsive. It can also be a contributing factor behind blown fuses or tripped circuit breakers.Your HVAC technician will check for these sy...

Read more

22

2023.05
What is an AC capacitor?

What is an AC capacitor?Capacitors are a critical part of your air conditioner, but many homeowners don't know much about them. The capacitors in your unit work much like batteries, but instead of holding a con...

Read more

15

2023.05
How to Replace a Washing Machine Motor Capacitor?

A washing machine motor capacitor is an electrical component that helps start a washer's main motor. A capacitor is like a battery that stores energy and releases it when the motor needs an extra boost of power...

Read more

Industry Knowledge Development

The AC CBB60 capacitor is a type of capacitor commonly used in single-phase electric motors for both starting and running applications. It is designed to provide the necessary capacitance and electrical characteristics required for motor operation.

Here's a breakdown of its functions:
1.Starting Capacitor: When an AC motor starts, it requires an extra boost of power to overcome inertia and initiate rotation. The starting capacitor, connected in series with the motor winding, provides this initial boost by creating a phase shift between the current and voltage. The CBB60 capacitor is designed to handle the high current demands during motor starting.
2.Running Capacitor: Once the motor is up and running, the starting capacitor is no longer needed. However, a running capacitor is still required to improve the motor's efficiency and power factor. The running capacitor helps maintain the desired phase shift and provides a smooth current flow, which improves the motor's torque and reduces power losses.

The CBB60 capacitor is named after its construction and specifications. "CBB" refers to metallized polypropylene film capacitors, which are widely used in AC applications. The number "60" indicates its voltage rating, typically 60 volts AC. Capacitor values can vary depending on the motor's power requirements, but common values for CBB60 capacitors range from a few microfarads (μF) to tens of microfarads.

The AC CBB60 Start & Run Capacitor is a type of motor capacitor commonly used in single-phase AC induction motors. Here are the main features of the AC CBB60 capacitor:
1.Capacitance: The AC CBB60 capacitor has a specific capacitance value, typically measured in microfarads (μF). The capacitance rating is an important parameter that determines the amount of electrical charge the capacitor can store.
2.Dual Functionality: The CBB60 capacitor serves a dual purpose as both a start capacitor and a run capacitor. During motor startup, it provides an extra boost of power to initiate rotation. Once the motor is running, the capacitor continues to provide steady current to maintain motor performance.
3.Dielectric Material: The capacitor employs a dielectric material, usually polypropylene film, which serves as the insulating medium between the capacitor's metal plates. Polypropylene is commonly used due to its high dielectric strength, good temperature stability, and low power dissipation.
4.Cylindrical Shape: The AC CBB60 capacitor is typically cylindrical in shape, enclosed in a plastic or metal case. This design ensures efficient heat dissipation and protects the internal components.
5.Voltage Rating: The capacitor has a specified voltage rating, which indicates the maximum voltage it can safely handle. It is crucial to use a capacitor with a voltage rating equal to or higher than the voltage of the motor system to avoid damage or failure.
6.Terminal Connections: The capacitor features two terminals for electrical connections. These terminals are typically labeled as "C" (common), "H" (hermetic), and "F" (fan). Proper wiring is essential to ensure correct operation and prevent any electrical hazards.
7.Self-Healing Property: The AC CBB60 capacitor possesses a self-healing property. In the event of a minor dielectric breakdown or internal short circuit, the capacitor can recover and continue to function, reducing the risk of catastrophic failure.
8.Long Life Expectancy: CBB60 capacitors are designed for long service life, with a typical lifespan of several thousand hours of operation. However, their longevity can be influenced by factors such as operating conditions, voltage fluctuations, and temperature.

These features make the AC CBB60 Start & Run Capacitor a suitable choice for various applications that require the reliable and efficient operation of single-phase AC induction motors, such as air conditioners, refrigerators, pumps, and fans.
