AC Sourcing Cbb60, Cbb61, Cbb65, Cbb80 Capacitor Direct Here

AC Motor and Lighting Capacitors Made in Cixi

Cixi Riyi Capacitor Factory is a direct manufacturer of metallized polypropylene film capacitors for single-phase AC motors and lighting circuits. From our 25,000 m² plant on the south bank of Hangzhou Bay in Cixi, Zhejiang, we produce the four families collected on this AC Sourcing Cbb60, Cbb61, Cbb65, Cbb80 Capacitor Direct Here range: CBB65 explosion-proof run capacitors, CBB60 motor run and start capacitors, CBB61 square-body capacitors and CBB80 lamp power factor compensation capacitors.

Our output serves air conditioner compressors, washing machines and dryers, range hoods, water pumps, fans and lighting fixtures. Standard catalogue values cover direct replacement programmes, while custom capacitance, termination and case builds are developed from customer drawings or samples.

Our Range: Four Capacitor Families

• CBB65 explosion-proofAluminium housing with an internal explosion-proof device. Insert terminals in 2+2, 4+4, 2+4, 2+3+4 and 1+1 with screw layouts, plus wire-lead versions with inductance, screw, mounting plate or ferrule.

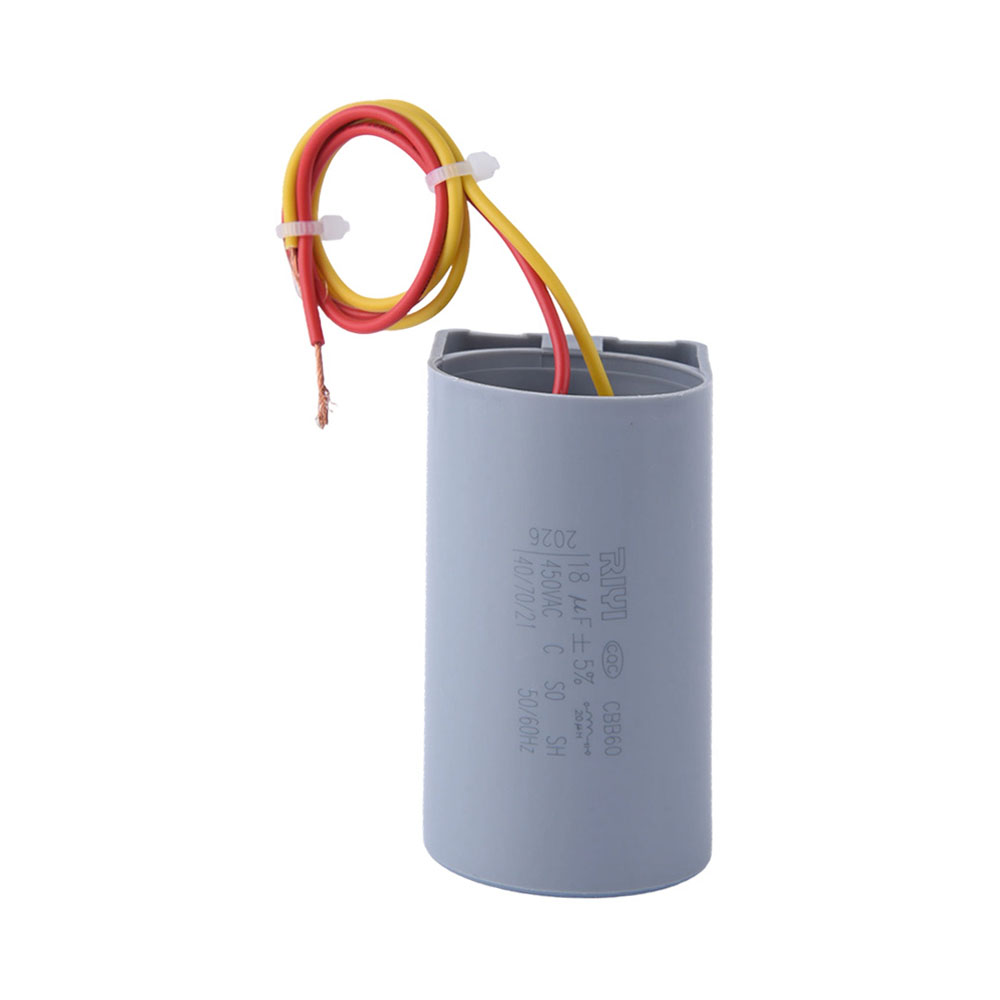

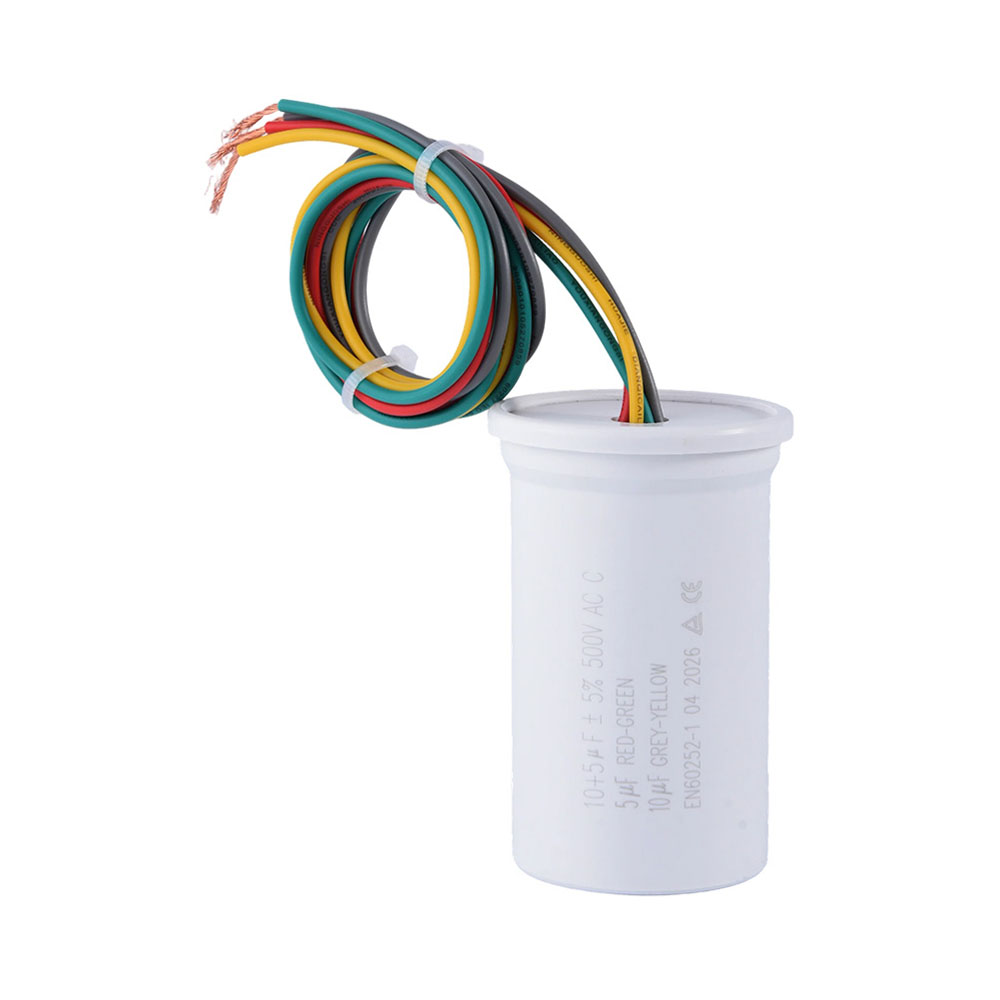

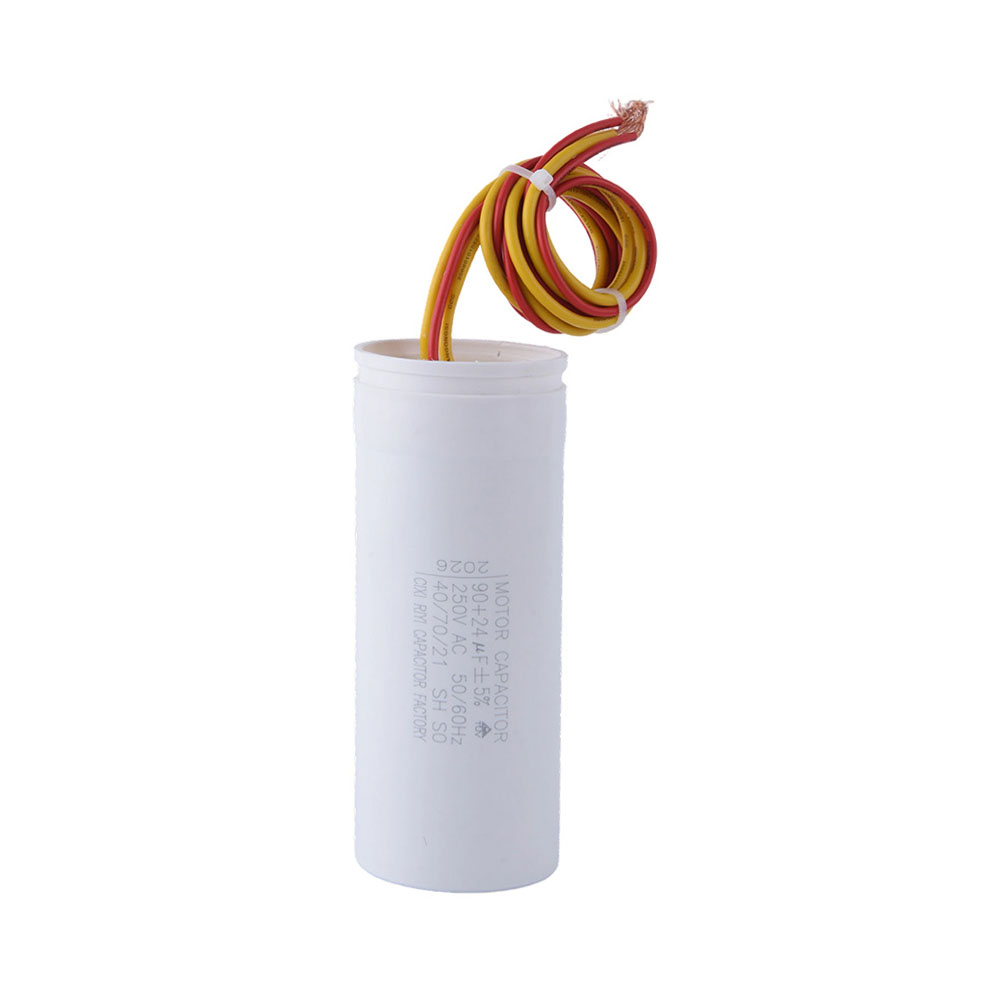

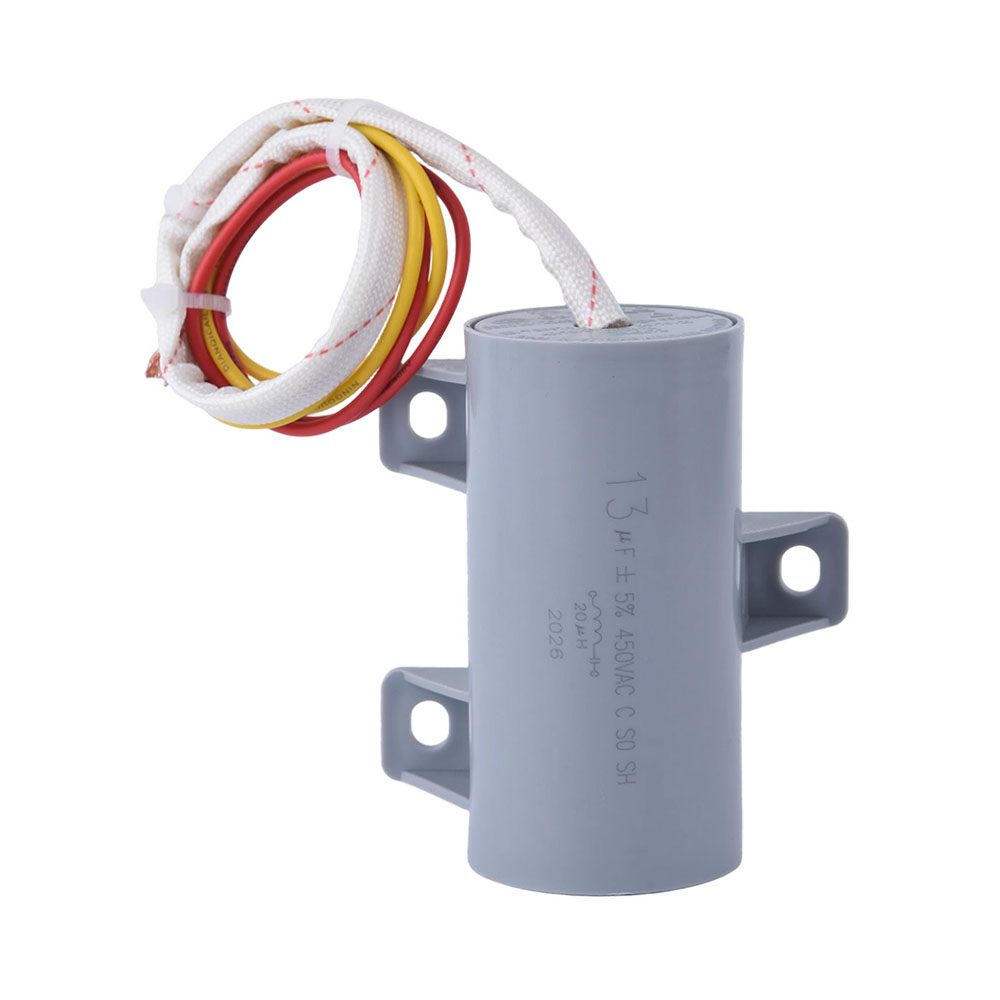

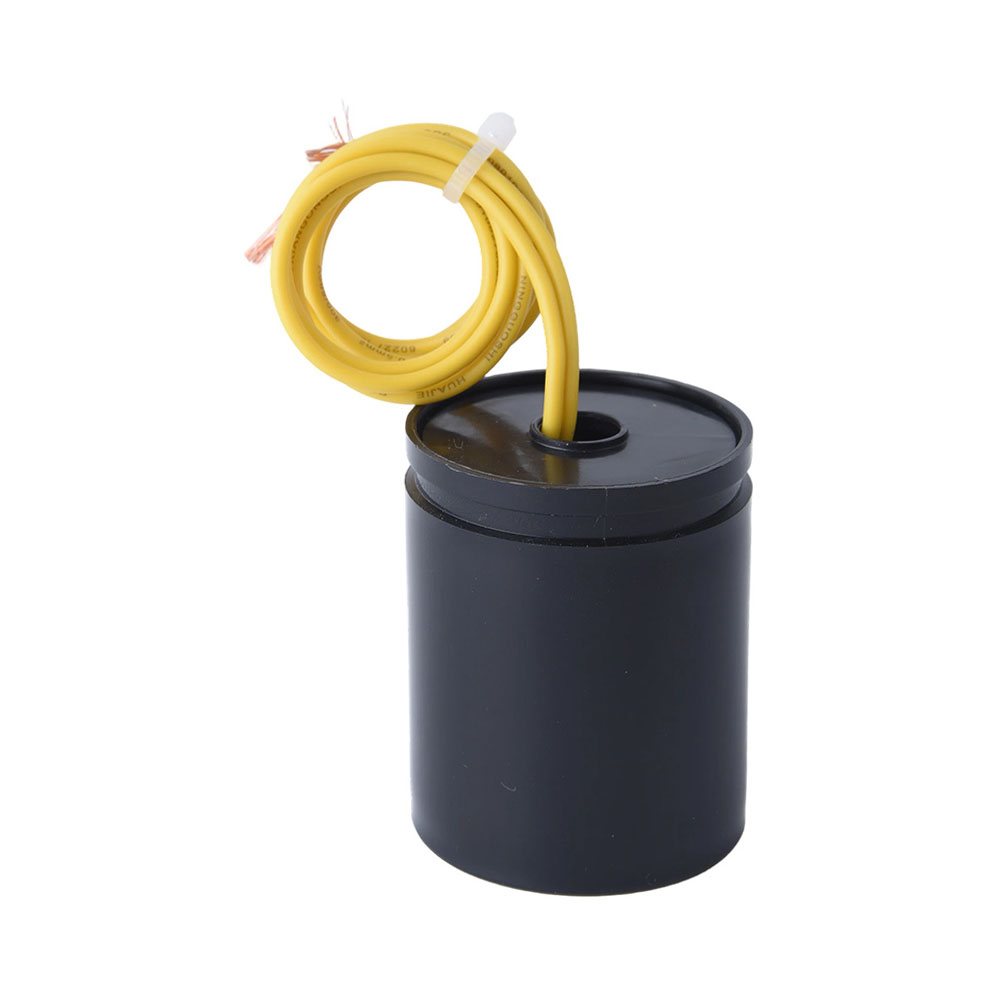

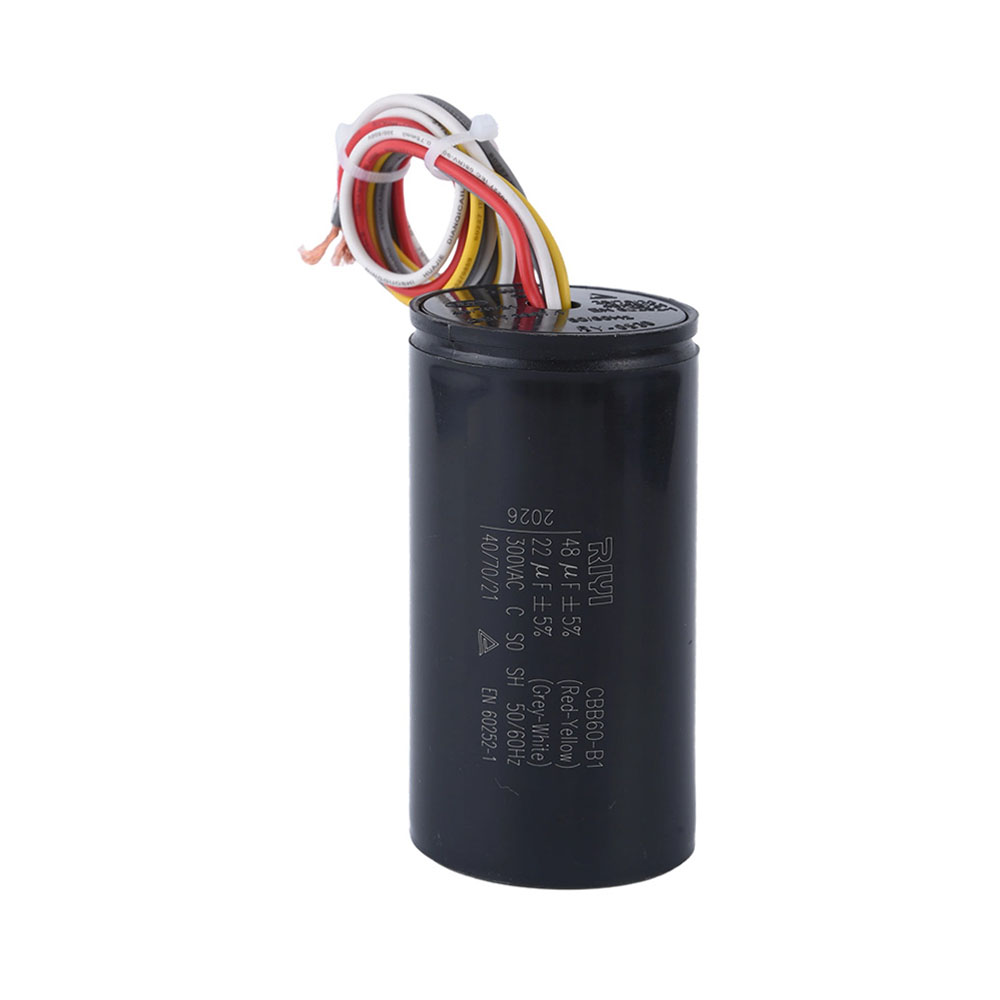

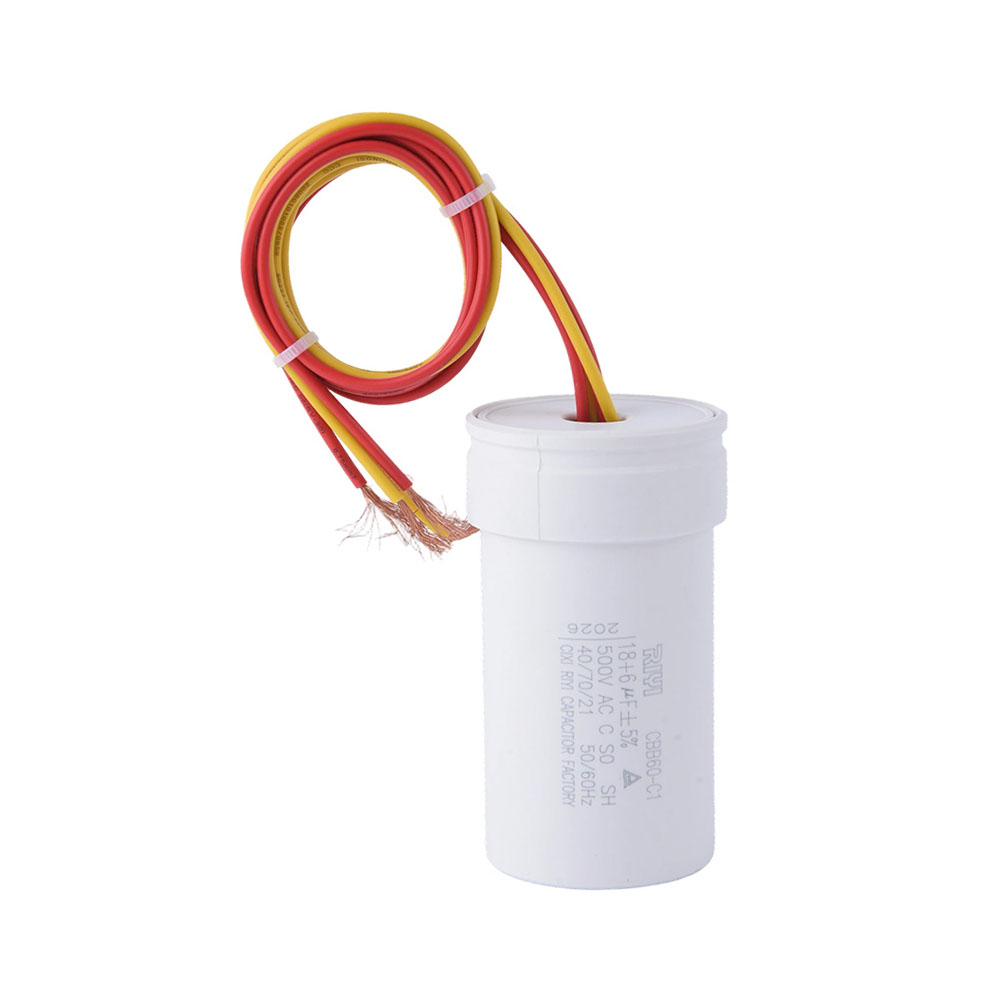

• CBB60 run and startAluminium case and plastic case bodies for cooler motors, electric motors, water pumps and washing machine motors, including oil-resistant plastic-shell models and combination-lead versions.

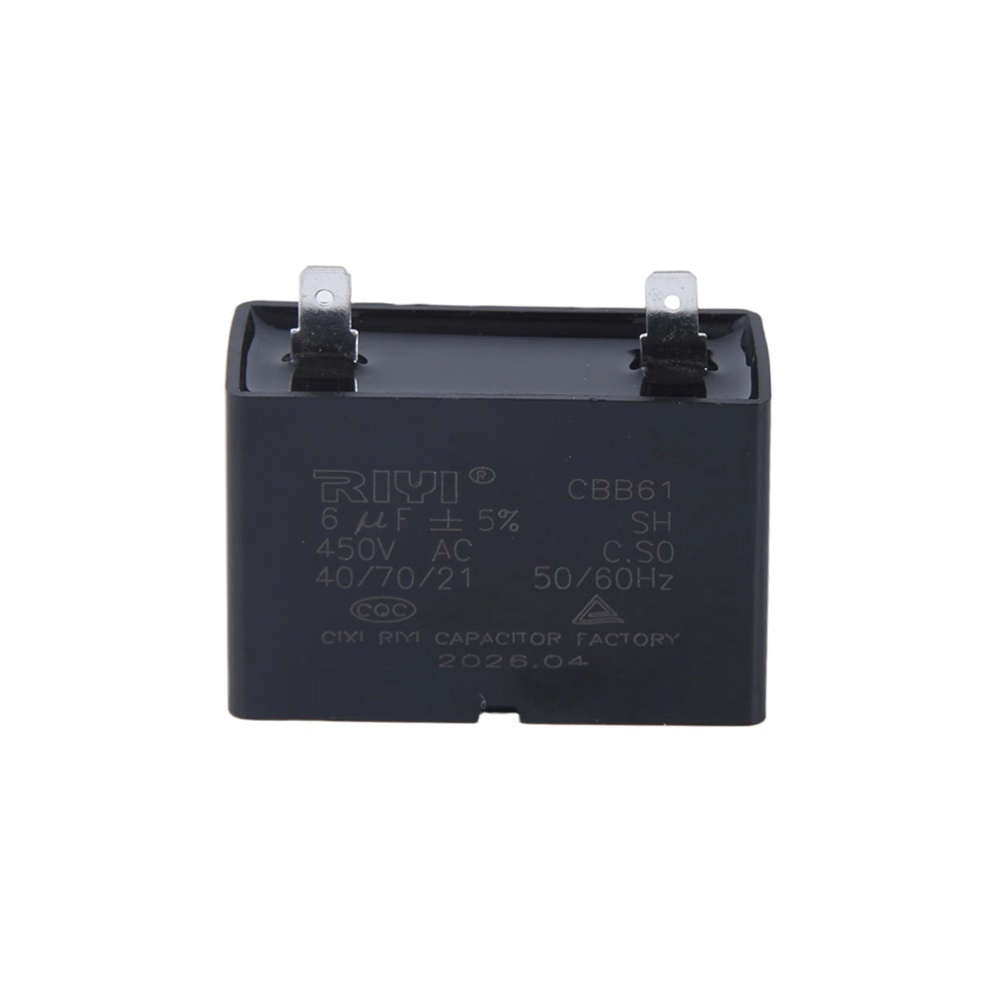

• CBB61 square bodySquare fan capacitor with insert or wire-lead termination, offered in single and dual-section values such as 7.4+3.6 µF 420 V S3 explosion-proof with leads.
• CBB80 lamp compensationPower factor compensation capacitor for lighting fixtures, supplied in aluminium housing or plastic shell versions for luminaire assembly lines.

Product Range at a Glance

Catalogue Range Profile

Highest catalogue value listed per family, and the voltage classes we build across the range.

• CBB65 / CBB65A — up to 66 µF
• CBB60 — up to 40 µF
• CBB65 single section — up to 35 µF
• CBB61 — dual 7.4+3.6 µF

• 250 V
• 300 V
• 370 V
• 420 V
• 450 V
• 500 V

Reading a Model String

• Family — CBB60 motor run and start, CBB61 square fan, CBB65 explosion-proof, CBB80 lamp compensation.
• Capacitance — single value or dual value (for example 30+6 µF) where one housing serves two windings.
• Voltage class — 250 V to 500 V ratings across the catalogue, matched to the motor winding and supply.
• Case letter and class code — case style letters and S0, S2 or S3 class codes, confirmed against the application when we quote.
• Termination — insert layout, double lead, sheathed line, with screw, mounting plate, ferrule or contact piece.
• Temperature — 85 °C lead models sit within the CBB65 lead group for warmer compartments.

Configuration and Line Integration

Terminal layout is decided by the way your appliance is assembled. Insert terminals in 2+2, 4+4, 2+4, 2+3+4 and 1+1 with screw suit units built around a terminal block, while wire-lead bodies with an inductance coil, mounting ferrule or sheath line suit harnesses that are fixed at assembly. We match lead length, wire colour and marking to your drawing so the part drops into the existing routing.

• Low loss
• High insulation resistance
• Self-healing dielectric
• Inrush and overload capability
• Internal explosion-proof device
• Oil-resistant plastic shell option

Quality Control and Production Capacity

• 25,000 m²plant and production workshops
• 60,000 pcsdaily output
• 26 machines11 slitting and 15 imported winding units
• 150+ staff21 technical personnel, 3 engineers

The works run under ISO9001 quality and ISO14001 environmental management systems, and our capacitors hold certificates including CQC, TUV, VDE, IMQ, UL and CE. Detection equipment on site supports in-house inspection of each production batch before packing. The CBB65 group is built with AC CBB65 Explosion-Proof Capacitor Manufacturers-grade safety construction, using an internal explosion-proof device for reliable performance in compressor circuits.

Information We Use to Configure Your Solution

Send the working point and the equipment context, and we return a configured model list with a quotation. Where a part replaces an existing capacitor, a photo of the nameplate plus lead or terminal detail shortens the confirmation.

• Equipment type and motor duty — compressor, pump, fan, washing machine, dryer or luminaire
• Capacitance value, dual-section split and tolerance
• Rated voltage, frequency and expected inrush conditions
• Case preference and class code, with ambient temperature at the mounting point
• Termination: insert layout, lead length, wire colour, screw, plate or ferrule
• Annual volume, packing and labelling requirements, and destination port

Questions We Answer Most Often

• Are you a direct manufacturer or a trading company?Cixi Riyi Capacitor Factory is a direct manufacturer in Cixi, Zhejiang, producing AC motor capacitors, lighting compensation capacitors and related products. Orders are produced in our own workshops.
• Can you build custom capacitors?Yes. We develop and produce from drawings or samples, covering capacitance, dual-section split, case style, terminal layout, lead length and colour, and shell material such as the oil-resistant plastic case.
• Which appliances does the range serve?Washing machines, dryers, air conditioners, range hoods, water pumps, fans and motors are the main applications, with CBB80 units used for lamp power factor compensation.
• Are standard values interchangeable across models?Many capacitors in the group can be installed universally where capacitance, voltage class, case dimensions and termination match the original position. We confirm these four points before shipping a replacement.
• What capacity and transport do you work with?Eleven automatic slitting machines and fifteen imported automatic winding machines give a daily output of 60,000 pieces. Shipment is normally by sea from Ningbo, with air freight available when a project is urgent.
• What documents accompany an order?Certificate copies for the models supplied, the packing list and shipping documents. Inspection scope is agreed per order, and we also support the CBB60, CBB61 and CBB80 families through the same production and inspection flow: CBB60 AC Motor Run And Start Capacitor Manufacturers and AC Cbb61 Square Motor Fan Capacitor Manufacturer lines are quoted from the same engineering data.
