How to use Square Motor Fan Capacitor correctly?

Using a square motor fan capacitor correctly involves proper installation and adherence to safety guidelines. Capacitors are critical components in many motor-driven devices, such as fans, air conditioners, and other appliances. Here's a step-by-step guide on how to use a square motor fan capacitor correctly:

  1. Safety Precautions: Before handling the capacitor, ensure that the power to the fan or motor is turned off and disconnected to prevent electrical shocks or accidents.

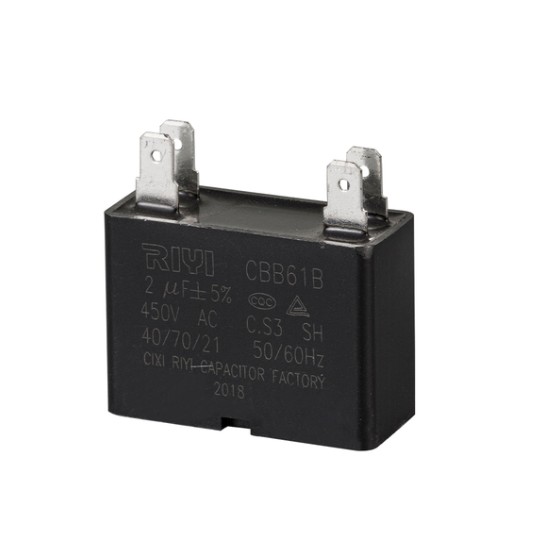

  2. Identify the Capacitor: Square motor fan capacitors usually have markings indicating their capacitance value and voltage rating. Make sure to check these specifications and ensure that the replacement capacitor matches the original one.

  3. Discharge the Capacitor: Even after disconnecting the power, capacitors may retain some residual charge. To discharge it safely, use an insulated screwdriver or a resistor across the terminals. This step is crucial for your safety.

  4. Capacitor Location: Locate the existing capacitor in your fan or motor. It is usually positioned near the motor or fan assembly.

  5. Remove the Old Capacitor: Unscrew or detach the existing square motor fan capacitor from its mounting. Take note of the wiring connections and how the capacitor was connected in the circuit. Take a picture or make a diagram if necessary to aid in the reinstallation process.

  6. Connect the New Capacitor: Install the new square motor fan capacitor in the same position and orientation as the old one. Make sure to connect the wires correctly according to the diagram or picture you took earlier.

  7. Secure the Capacitor: Fasten the new capacitor securely to its mounting, ensuring it is stable and won't move during operation.

  8. Inspect Connections: Double-check all the wiring connections and ensure they are tight and properly insulated to avoid any short circuits or electrical issues.

  9. Reconnect the Power: Once you have installed the new square motor fan capacitor and verified all connections, you can turn the power back on.

  10. Test Operation: Turn on the fan or motor and check if it operates correctly. Listen for any abnormal sounds or vibrations, which could indicate incorrect installation.

  11. Monitor Performance: After installation, monitor the performance of the fan or motor to ensure that the new capacitor is functioning as expected. If you notice any issues, consult a qualified technician for further inspection and assistance.

It's essential to handle capacitors with care and follow safety guidelines when working with electrical components. If you are unsure about how to replace a square motor fan capacitor, consider seeking help from a professional electrician or technician to ensure the correct and safe installation of the new capacitor.
