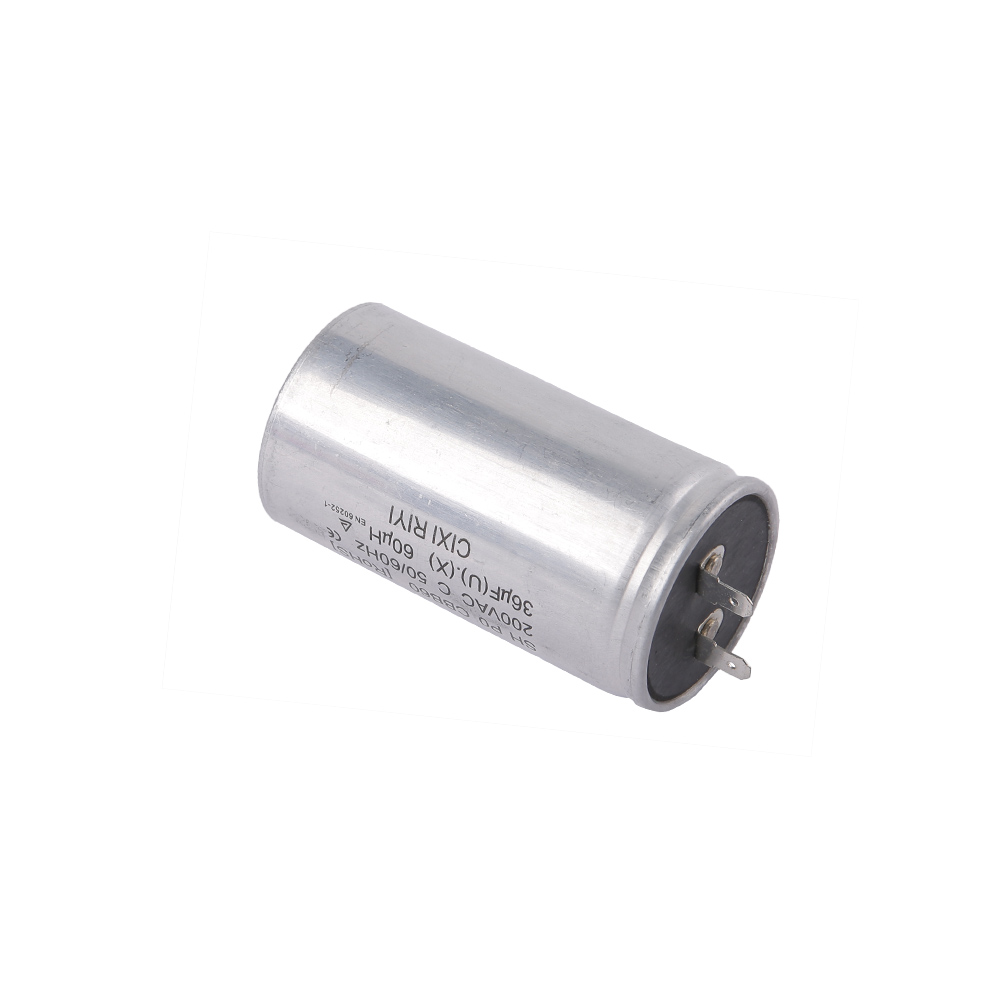

CBB60 1+1 Terminal 200v C With Inductance

This CBB60 450V B S0 combination lead capacitor is, simply put, an indispensable "energy storage" and "booster" for AC motors. In power systems, it belongs to the category of metallized polypropylene film capacitors, specifically designed to ensure smooth starting and stable operation of single-phase motors. The 450V voltage rating and B-class lifespan design ensure its durable and efficient performance in various home appliances and small industrial equipment. Core Features:Extremely Low Loss and High Insulation:  Utilizes high-quality dielectric materials internally, resulting in minimal heat generation during operation. This low power consumption not only improves the motor's energy conversion efficiency but also effectively prevents component aging due to overheating. Excellent Self-Healing Capability: This is its most crucial "immune system." When the film dielectric experiences localized breakdown due to instantaneous voltage overload, the metal layer around the breakdown point quickly evaporates, automatically restoring insulation at the fault point. This mechanism significantly extends the capacitor's actual service life. Impact Resistance and Strong Overload Capacity:  Can withstand the powerful surge current generated during motor startup. Facing voltage fluctuations or short-term current overloads, the internal structure possesses sufficient resilience to ensure that performance does not experience a sudden decline. Epoxy Resin Fully Sealed Structure: The exterior features a fully sealed encapsulation, completely isolating it from external moisture and dust. This physical reinforcement ensures high stability even in humid or environments with large temperature differences (such as inside water pumps and air coolers). Application Scenarios and Compatibility: Due to its leaded design, this model offers flexible installation and is widely used in the following areas: Air Circulation Systems: Fans, air coolers, range hoods, etc. Fluid Power Equipment: Various miniature electric pumps, automatic booster pumps. Automation Drives: Various small AC drive modules requiring frequent starting and stopping.

The CBB60 1+1 terminal capacitor is a core component widely used in the starting and running of AC motors. It utilizes polypropylene film as the dielectric material, combined with a special physical encapsulation process, to provide continuous and stable reactive power compensation for various small household appliances and industrial motors. Its unique "1+1" wiring design simplifies circuit connections while significantly improving installation flexibility, making it the preferred solution for small and medium-sized induction motors on the market. Core Physical CharacteristicsLoss Suppression and High Resistance Design: This component exhibits extremely low dielectric loss during energy conversion, effectively reducing self-heating during operation. Coupled with extremely high insulation resistance, it ensures efficient charge storage between the plates, significantly reducing the probability of leakage current and extending the overall circuit's service life. Instantaneous Environmental Adaptability: Its internal materials possess excellent resistance to surge currents. Under the instantaneous high-load conditions of motor startup, it can quickly respond to and withstand the pressure caused by current fluctuations, providing a strong overload protection margin and ensuring equipment stability under high-intensity operation. Physical Self-Healing Mechanism: When the dielectric develops local weak points due to accidental pulses, this product has the ability to automatically repair the physical barrier. This self-protection mechanism prevents the expansion of breakdown failures, allowing the capacitor to maintain its performance even in non-ideal voltage environments. Fully Sealed Encapsulation Process:  Using epoxy resin for full-dimensional filling and sealing, it creates a protective layer that is physically isolated from the outside world. This structure not only enhances the capacitor's moisture-proof and shock-resistant performance but also enables it to withstand complex and variable operating environments, ensuring that internal components are not affected by oxidation or external contamination. Industry Application LogicInduction Equipment Driving: Provides critical phase shift for rotating household appliances such as fans, air coolers, and range hoods, assisting the motor in achieving smooth self-starting. Fluid Pumping Systems: Acts as a voltage stabilization and power support center in equipment requiring high-frequency starting and stopping, such as electric pumps, ensuring the smooth operation of the water pump. Environmental Control Terminals: Widely adapted to various ventilation and purification units, maintaining the equipment's long-term low-noise and efficient operation through smooth energy conversion.

This capacitor is a "power assist component" specifically designed for AC motors. It acts as an energy storage and phase-shifting element in the circuit, providing the motor with sufficient torque during startup and maintaining stable speed during operation. Its 200V rated voltage and built-in inductance design give it superior filtering and anti-interference capabilities in specific voltage environments. Key Features:Physical Packaging and Sealing: This component is entirely encapsulated in epoxy resin. This fully sealed structure not only prevents the intrusion of external moisture and dust but also provides excellent mechanical strength, enabling it to withstand long-term high-frequency vibration in the working environment. 1+1 Wiring Logic: The "1+1 Terminal" refers to its standard dual-terminal design. This interface simplifies circuit layout, making wire connections more intuitive and secure, effectively reducing the risk of temperature rise due to poor contact and ensuring the stability of current transmission. Electrical Self-Healing and Protection Mechanism: It possesses excellent "self-healing" properties. When the internal dielectric experiences partial breakdown due to overload, the breakdown point automatically evaporates and reforms insulation, thus preventing complete device failure. Coupled with strong overload protection capabilities, it can effectively withstand the impact of transient surge currents. Dynamic Operating Stability: The low-loss design ensures that the capacitor does not generate excessive heat during prolonged operation. This characteristic not only maintains the constancy of capacitance but also allows the capacitor to exhibit high reliability in equipment with frequent starts and stops (such as water pumps, fans, etc.). Diversified Application Scenarios: Due to its specially tuned electrical parameters, it is very suitable for use in air coolers, range hoods, and various small electric water pumps. It acts as both a "starter" for the motor and a "timing device" for maintaining efficient operation.

This CBB60 1+1+1 terminal combination capacitor is essentially an integrated power compensation component. It encapsulates multiple independent capacitor units within a single housing, specifically designed to provide starting and running support for equipment requiring multi-speed adjustment or multiple motor drives. Its 200V voltage rating and S0 safety explosion-proof design ensure extremely high stability and reliability in specific voltage environments. Technical Features and Core AdvantagesCombined Structure Design:  Adopts a 1+1+1 three-way output mode, enabling quick connection via plug-in terminals. This structure not only saves installation space but also simplifies internal wiring, providing phase shift support for multiple windings or multiple small motors simultaneously. Physical Protection and Sealing Process: The interior of the housing is completely vacuum-potted with epoxy resin. This fully sealed structure completely isolates external moisture and air, ensuring that the capacitor maintains extremely high insulation resistance even in humid or dusty conditions, preventing breakdown risks. Self-Healing and Attenuation Control: The core film possesses excellent self-healing capabilities. When a local instantaneous breakdown occurs in the dielectric, the metallized layer around the breakdown point quickly evaporates and disappears, automatically restoring the insulation state. This characteristic ensures minimal capacitance decay during long-term operation and stable performance. Electrical Load Bearing Capacity:  This capacitor has strong surge current resistance to handle the high peak currents during motor startup. The special treatment of its internal metallized layer allows it to maintain low dielectric loss and reduce heat generation even under overload pressure or voltage fluctuations. Industry Application ScenariosDue to its unique combination characteristics, this model performs particularly well in the following areas: Air Circulation Systems: Such as household or commercial cooling fans, ventilation fans, and air conditioning circulation pumps. Kitchen Appliances: Suitable for multi-speed control of high-power range hoods. Fluid Conveyance: Provides stable phase-shifting torque for small electric water pumps, ensuring smooth starting. Precision Matching: Widely used in various induction motors that require strict installation volume requirements and continuous long-term operation.
