Is a CBB60 Capacitor Polarized?

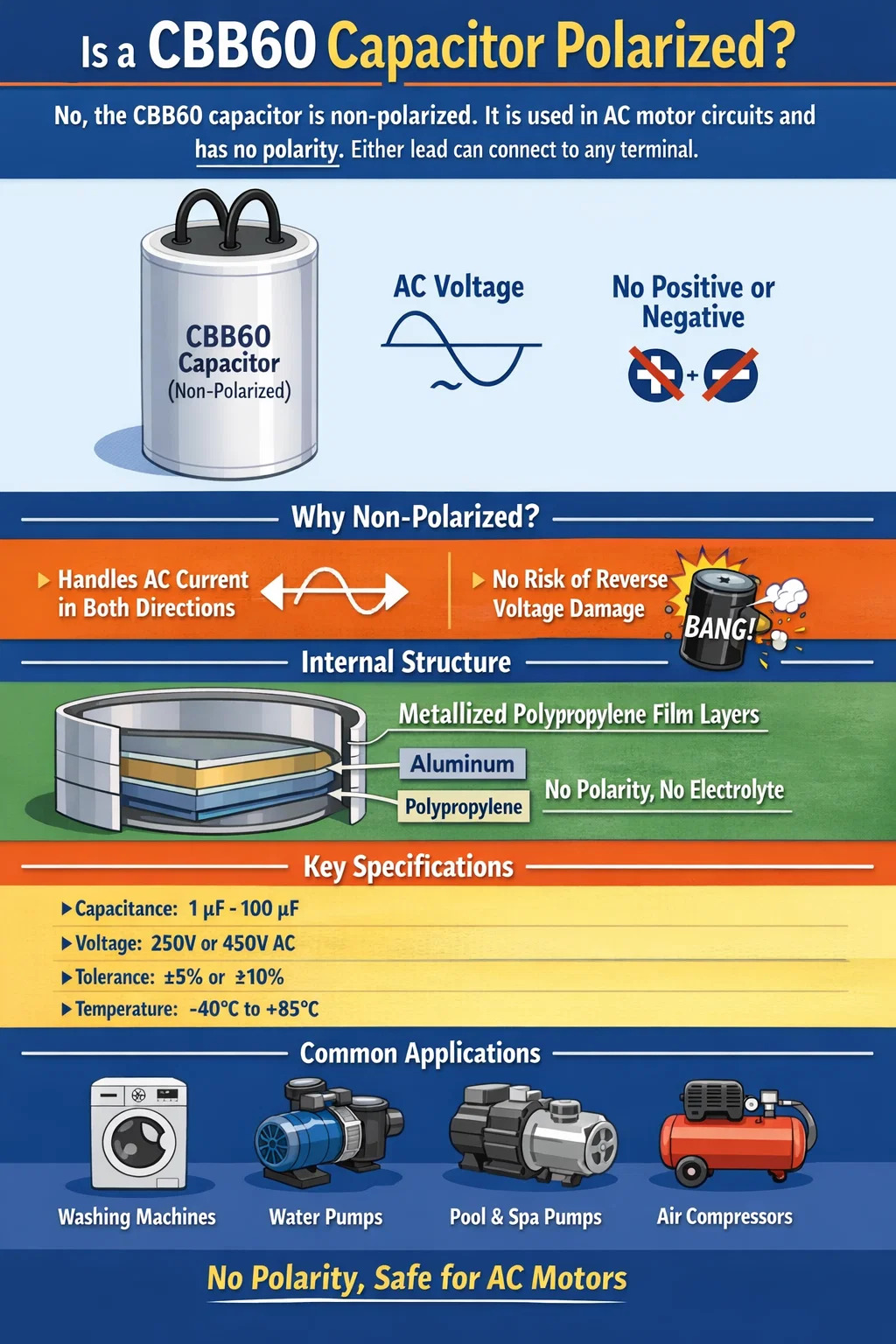

No, a CBB60 capacitor is not polarized. It is a non-polarized, AC-rated film capacitor designed specifically for use in alternating current circuits. Unlike electrolytic capacitors, which have a clearly marked positive and negative terminal and will fail — or even explode — if connected backwards, the CBB60 has no polarity whatsoever. You can connect either terminal to either side of your circuit without any concern. This is not a minor technical footnote; it is one of the defining reasons the CBB60 exists and why it is so widely used in AC motor applications.

The CBB60 belongs to the family of metallized polypropylene film capacitors. Inside the component, two layers of polypropylene film — each coated with a very thin layer of aluminum — are wound together into a cylindrical body. Because both electrodes are made of the same material and the dielectric (polypropylene) behaves symmetrically under alternating voltage, there is no preferred direction of current flow. The capacitor handles both half-cycles of an AC waveform equally well, which is exactly what motor run and motor start applications demand.

This non-polarized nature is not unique to the CBB60 — other film capacitors such as CBB61, CBB65, and MKP types share this property. However, the CBB60 has become one of the most recognizable due to its cylindrical plastic case with flying leads, its popularity in single-phase induction motors, and its wide availability in capacitance values ranging from 1 µF to 100 µF with voltage ratings typically at 250 VAC or 450 VAC.

What Type of Capacitor Is the CBB60?

The CBB60 is a metallized polypropylene film capacitor — a type that sits in a completely different category from the electrolytic and tantalum capacitors that dominate power supply and signal filtering circuits. Understanding this distinction clarifies immediately why polarity is irrelevant here.

Film Capacitors vs. Electrolytic Capacitors

Electrolytic capacitors achieve their large capacitance values by using an electrolyte as one of their plates and an extremely thin oxide layer grown on an aluminum or tantalum foil as the dielectric. This oxide layer forms directionally — it only blocks current in one direction. Apply voltage the wrong way and the oxide layer breaks down. That is why electrolytic capacitors are always polarized and always have a clear negative stripe or positive lead marking.

Film capacitors like the CBB60 use a solid plastic film as the dielectric. Polypropylene is particularly well-suited for this because it has very low dissipation factor (typically less than 0.0001 at 1 kHz), excellent voltage stability, and no directional electrochemical behavior. Both electrodes are simply metal — either foil or a thin metallized coating — and there is no asymmetry anywhere in the structure.

The "CBB" Naming Convention

The "CBB" designation is a Chinese standard (GB/T 6346) code for metallized polypropylene film capacitors. The number "60" specifies the particular package style and intended application — in this case, a cylindrical body with axial or radial leads designed for motor use. You will also see CBB61 (flat, box-shaped, for ceiling fans and air conditioners), CBB65 (round metal can, for compressor motors), and others. All of them are non-polarized film capacitors.

Why Non-Polarized Capacitors Are Essential in AC Motor Circuits

In a standard 50 Hz or 60 Hz AC power system, the voltage reverses direction 100 or 120 times per second respectively. Any capacitor placed directly in such a circuit must be able to charge and discharge in both directions without damage. A polarized electrolytic capacitor would face reverse voltage on every negative half-cycle — within seconds, this destroys the oxide layer, causes the capacitor to overheat, and in many cases causes a catastrophic venting or rupture.

Single-phase induction motors — the kind found in washing machines, water pumps, air compressors, and pool pumps — use a run capacitor to create a phase shift between the main winding and the start (or auxiliary) winding. This phase shift is what makes the motor self-starting and keeps it running efficiently. The capacitor sees the full AC supply voltage continuously during operation. For a 220–240 VAC motor, the CBB60 run capacitor is typically rated at 450 VAC to provide a safe margin above the peak voltage (which reaches approximately 311–339 V even in a nominally 220 VAC circuit).

Using any polarized capacitor in this role would be not just ineffective but dangerous. The CBB60's non-polarized, AC-rated design is therefore not optional — it is a fundamental requirement for the application.

Key Specifications of CBB60 Capacitors

The table below summarizes the most commonly encountered specifications for CBB60 capacitors available on the market. These values cover the vast majority of residential and light commercial motor applications.

One point worth emphasizing from the table: the voltage rating on a CBB60 is an AC voltage rating, not a DC rating. A capacitor marked "450 VAC" can withstand a much higher peak voltage than a DC-rated component of the same nominal value, because the AC rating already accounts for the sinusoidal peak (which is √2 × RMS, or about 636 V peak for a 450 VAC-rated component). Never substitute a DC-rated capacitor in an AC motor circuit — the rating system is entirely different.

How to Install a CBB60 Capacitor Correctly

Because the CBB60 is non-polarized, installation is straightforward — but there are still several points that matter for safety and long-term reliability.

No Polarity to Worry About

Unlike a DC electrolytic capacitor where you would carefully match the positive terminal to the positive rail, with a CBB60 you simply connect the two leads to the correct circuit nodes. There is no correct or incorrect way around — either lead can go to either terminal of the motor or capacitor circuit. Both leads on a CBB60 are typically the same color (usually black or transparent) or are at most labeled "1" and "2" purely for reference, not for polarity.

Match the Capacitance Value Exactly

When replacing a CBB60 in a washing machine drum motor, water pump, or pool pump, the most critical spec to match is the capacitance value in µF. A motor designed for a 10 µF run capacitor will overheat if you install an 8 µF unit (the phase shift will be insufficient) or may draw excessive current if you install a 12 µF unit. Motor manufacturers calculate the required capacitance precisely for optimal torque and current efficiency. The tolerance should be ±5% or better for run capacitor duty.

Never Downgrade the Voltage Rating

If the original capacitor was rated at 450 VAC, replace it with a 450 VAC unit. It is acceptable to install a higher-rated capacitor (e.g., a 630 VAC unit in a 450 VAC application) if that is what is available — the higher-rated component simply has more headroom. However, installing a 250 VAC capacitor in a 450 VAC circuit will cause premature failure or immediate breakdown. The dielectric in an underrated component cannot withstand the electric field stress.

Discharge Before Handling

Even though CBB60 capacitors are non-polarized and AC-rated, they can retain a charge after the circuit is de-energized — particularly if they were at peak voltage when power was cut. Always wait at least 60 seconds after disconnecting power, or use a discharge resistor (typically 10 kΩ to 20 kΩ rated for the appropriate wattage) to safely bleed the charge before touching the terminals. A fully charged capacitor in the 10–50 µF range at 450 V stores enough energy to cause a serious shock or even a fatal injury.

Check the Physical Dimensions

CBB60 capacitors come in various physical sizes depending on capacitance and voltage rating. A 25 µF / 450 VAC unit is substantially larger than a 5 µF / 250 VAC unit. When ordering a replacement, confirm that the new capacitor will fit in the available space and that the lead length and spacing are compatible with the mounting arrangement. Most suppliers list diameter and length in millimeters; a typical 10 µF / 450 VAC CBB60 measures approximately 35 mm in diameter and 60–70 mm in length.

Common Applications of CBB60 Capacitors

The CBB60 is one of the most widely deployed motor capacitor types in household and light industrial equipment. Below are the most frequent use cases:

• Washing machine motors: Both drum drive motors and drain pump motors commonly use CBB60 run capacitors in the 8–12 µF range at 450 VAC. The run capacitor is one of the most frequently replaced parts in washing machine repair.
• Water pumps and irrigation pumps: Single-phase submersible and surface-mounted pumps use CBB60 capacitors, typically in the 12–30 µF range depending on motor power.
• Pool and spa pumps: These motors run for hours at a time under continuous load, making capacitor quality especially important. Premature capacitor failure is a primary cause of pump motor burnout.
• Air compressors: Small single-phase piston compressors use CBB60 capacitors both for starting assistance and steady-state run operation.
• Grinders and bench tools: Single-phase induction motors in woodworking and metalworking equipment rely on run capacitors for phase splitting.
• HVAC blower motors: While the CBB65 is more common in compressor applications, CBB60 units appear in some blower and fan motor assemblies.

In all of these applications, the non-polarized characteristic of the CBB60 is not just convenient — it is technically necessary. An AC motor's run winding sees alternating voltage every cycle, and the capacitor must accommodate this without degradation.

Signs That a CBB60 Capacitor Has Failed

Although CBB60 capacitors are generally robust, they do fail — especially in high-temperature environments or after years of continuous operation. Recognizing failure symptoms early can prevent damage to the motor itself.

Motor Fails to Start or Starts Slowly

A run capacitor that has dropped significantly in capacitance value (a common failure mode in film capacitors after prolonged thermal stress) provides inadequate phase shift for the auxiliary winding. The motor may hum loudly without rotating, rotate slowly with less torque than normal, or require a manual spin to get going. If your washing machine drum or pump hesitates before starting, a degraded CBB60 is a likely cause.

Motor Overheats

A capacitor that is out of specification — whether too high or too low in capacitance — causes the motor windings to carry unbalanced currents. This leads to higher-than-normal operating temperatures, which accelerates insulation degradation in the windings. If a motor that previously ran cool is now hot to the touch, measuring the capacitor with a capacitance meter is an important diagnostic step.

Visible Physical Damage

Inspect the CBB60 body for cracks, bulging ends, burn marks, or evidence of leaking epoxy resin. A capacitor that has experienced an internal dielectric breakdown may show these signs. Any visible physical deformation is grounds for immediate replacement, regardless of what a meter shows.

Measured Capacitance Out of Tolerance

Using a digital multimeter with a capacitance function or a dedicated LCR meter, you can measure the actual capacitance of a suspected faulty unit. A capacitor labeled 10 µF ±5% should measure between 9.5 µF and 10.5 µF. If it measures below 8 µF or shows open circuit (OL), it should be replaced. Note that you must discharge the capacitor before measuring and that some basic multimeters are not accurate for capacitance measurement at these values — an LCR meter gives more reliable results.

CBB60 vs. Other Capacitor Types: A Comparison

It helps to see how the CBB60 compares directly to other capacitor types that a technician or DIYer might encounter when working on motors or power circuits.

The key takeaway from this comparison: any non-polarized, AC-rated film capacitor with matching capacitance and voltage ratings is a valid substitute for a CBB60. An MKP motor capacitor from a European brand, for example, is electrically equivalent to a CBB60 of the same specification — the naming difference is purely a matter of the standard used (IEC vs. Chinese GB). What you must never do is substitute an electrolytic capacitor, regardless of its capacitance value, in any AC motor run application.

Frequently Asked Questions About CBB60 Capacitors

Can I use a CBB60 capacitor in a DC circuit?

Technically yes — a non-polarized capacitor can be used in a DC circuit without damage, since there is no wrong polarity to apply. However, the CBB60 is not optimized for DC use. Its large capacitance values and physical size make it impractical for most DC applications. More importantly, its AC voltage rating does not directly translate to a DC voltage rating in the way you might expect — film capacitors are generally rated at higher DC voltages than their marked AC voltage, but you should consult the manufacturer's datasheet rather than assume. In practice, you would only use a CBB60 in DC circuits if no better option were available.

Does it matter which lead of a CBB60 goes to live and which goes to neutral?

No. Since the CBB60 is non-polarized, it makes no electrical difference which lead connects to the live conductor and which connects to the neutral. Both terminals are identical in function. The capacitor will perform the same phase shift and carry the same current regardless of orientation.

What happens if you install a CBB60 with a lower µF rating than required?

A lower capacitance value reduces the phase angle between the main and auxiliary motor windings. This results in reduced starting torque, lower running efficiency, and increased current draw in the auxiliary winding. Over time, the motor runs hotter than designed and winding insulation degrades faster. As a rule, do not deviate from the specified capacitance by more than 5–10% in a motor run application.

How long do CBB60 capacitors typically last?

Under normal operating conditions — meaning the capacitor is not running above its rated voltage, not exposed to temperatures above its rated maximum, and not subject to voltage spikes — a quality CBB60 capacitor can last 10 to 20 years. Capacitors used in environments with high ambient temperatures (such as motor housings that run at 60–70°C continuously) will age faster, with capacitance drift accelerating beyond the specified tolerance in as little as 5–7 years. If a pump or washing machine motor is older than 10 years and shows any starting difficulty, checking the run capacitor is a sensible first diagnostic step.

Is a CBB60 the same as a motor run capacitor?

In most contexts, yes. "Motor run capacitor" is a functional description; CBB60 is a specific component designation. Most motor run capacitors sold in markets that follow Chinese GB standards are CBB60 units. However, the term "motor run capacitor" also covers CBB61, CBB65, and MKP types. When someone asks for a "motor run capacitor" for their washing machine or pump, they will most often be handed a CBB60 — it is the dominant form factor for those applications.

Self-Healing Property of CBB60 Capacitors

One technical advantage of the CBB60 that often goes unmentioned is its self-healing capability. Because the electrode is a very thin metallized layer rather than a solid foil, a small localized breakdown in the dielectric film causes the electrode material around the breakdown point to vaporize and evaporate due to the energy of the arc. This isolates the fault site and restores the dielectric integrity of the capacitor, albeit with a marginally reduced capacitance. This is why metallized film capacitors are considered "self-healing" — minor defects do not cause catastrophic failure but instead result in gradual capacitance drift over time.

This self-healing behavior gives CBB60 capacitors considerably longer practical service lives than older paper-and-foil designs. It also explains why a CBB60 may measure slightly below its nominal capacitance after years of service — each self-healing event removes a tiny amount of electrode area. Once capacitance drift exceeds 10% below the nominal value, the capacitor should be considered for replacement in motor run service, even if the motor is still technically operating.

Sourcing and Quality Considerations When Buying CBB60 Capacitors

The global market for CBB60 capacitors is large, and quality varies significantly between manufacturers. Here are the practical points to consider when purchasing replacements:

• Brand reputation: Established manufacturers such as Comar (Italy), Vishay, TDK, Panasonic, and Chinese manufacturers like KYET, Faratronic, and Suntan have documented quality control processes. Unbranded or market-stall CBB60 units may have poorly controlled capacitance values and thin dielectric that fails prematurely.
• Certification marks: Look for CE marking (for European market compliance), CQC (China Quality Certification), or UL certification. These indicate the product has been tested against relevant safety standards.
• Capacitance tolerance: For motor run service, buy ±5% (J grade) rather than ±10% (K grade) where possible. The tighter tolerance ensures the motor phase split remains within design parameters throughout the capacitor's life.
• Temperature rating: Standard CBB60 units are rated to +85°C. If the capacitor will be installed in a hot motor housing or in a high-ambient-temperature environment, look for units rated to +105°C — these use thicker or higher-grade polypropylene film and are measurably more durable in thermal stress conditions.
• Avoid counterfeit or remarked parts: On online marketplaces, it is not uncommon to find capacitors that are labeled as 450 VAC but are actually 250 VAC units with a remarked label. Buying from reputable distributors (Farnell, RS Components, Mouser, Digi-Key, or authorized local suppliers) largely eliminates this risk.

For most repair applications, a quality CBB60 from any reputable brand will cost between €2 and €8 for common values (5–20 µF at 450 VAC). Higher capacitance values (40–100 µF) are more expensive due to larger physical size and greater material content. The relatively low cost makes it worth buying a quality unit rather than the cheapest available — given that a failed capacitor can damage the motor it was supposed to protect, the price difference is negligible compared to the cost of a motor rewind or replacement.
