CBB60 10uf 450V S0 C Automatic Capacitor

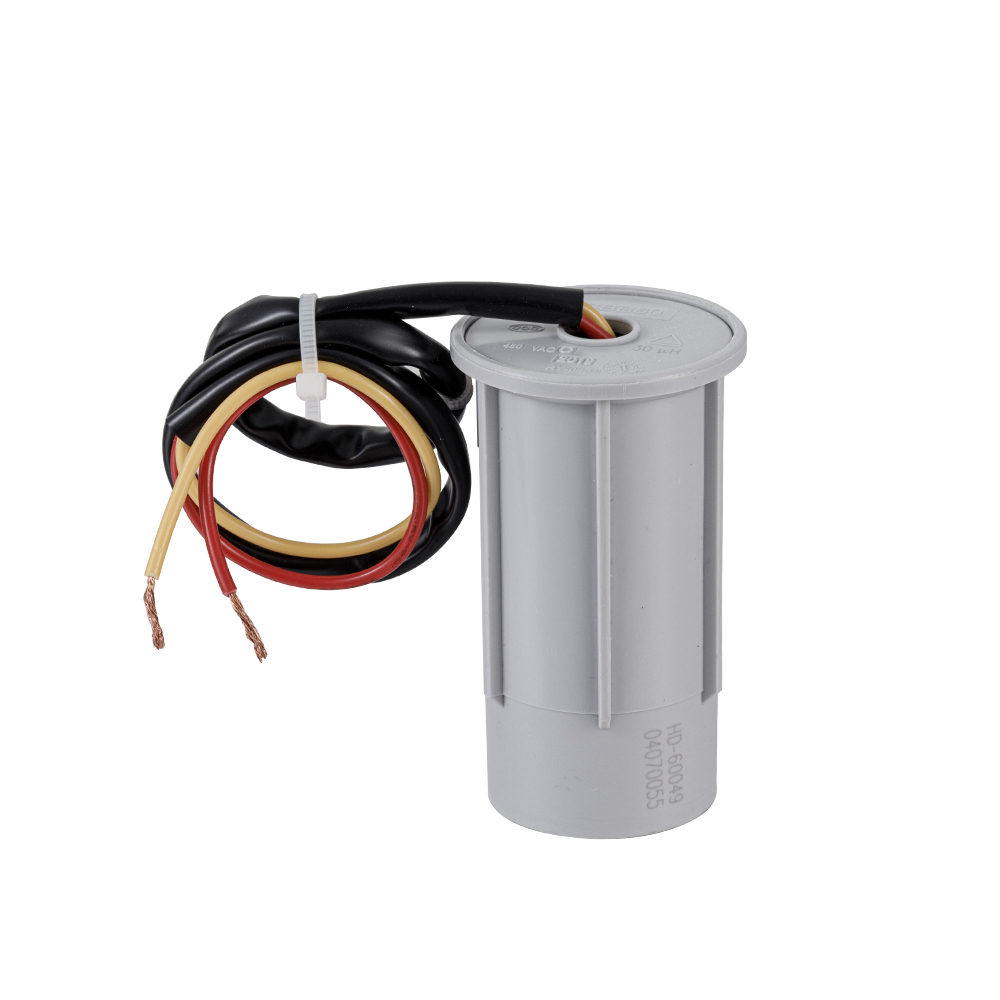

This CBB60 10+2.2μF is a high-performance dual-capacitor component. It is primarily used for starting and running AC motors, integrating two different capacitance units into a single package to achieve precise compensation of motor starting current and stable power output. This "dual-value" design is particularly common in household appliances that require multi-stage adjustment or the cooperation of main and auxiliary windings. Technical Characteristics and Application LogicComposite Dual Capacitance Configuration (10+2.2μF): This capacitor integrates two independent capacitance units of 10μF and 2.2μF. This design not only saves installation space but also meets the phase shift requirements of the motor under different operating conditions, ensuring smooth operation with low energy consumption. Voltage Rating and Electrical Strength (500V): Its rated operating voltage is up to 500V, possessing strong resistance to surge currents. Even in the face of power grid fluctuations or instantaneous overloads, its internal metallized film can maintain stable electrical performance, effectively preventing breakdown risks. Self-Healing and Loss Control: The core material has excellent "self-healing" capabilities. This means that if a small breakdown point occurs in the dielectric, the film will automatically evaporate and reform the insulation area, restoring the capacitor to normal function. At the same time, extremely low dielectric loss ensures low heat generation during long-term operation, extending the equipment's lifespan. Fully Sealed Protective Structure (S0 Standard):  Using epoxy resin full sealing technology, it not only improves the overall insulation resistance but also enhances adaptability to the physical environment. Whether in high-humidity water pump environments or the oily environment inside range hoods, this sealed structure prevents electrical performance degradation. Lead-Type Convenient Installation: Equipped with dedicated lead interfaces, simplifying the wiring process and suitable for circuit layouts in confined spaces, it is a typical industrial matching solution. Applicable ScenariosAir Circulation Systems: Fans, air coolers, ventilation fans. Kitchen and Bathroom Power Equipment: Range hoods, small water pumps. Household Life Support: Household ventilator pumps.

This is a widely used polypropylene film capacitor in the field of electric drive. Its main function is to provide phase shift for single-phase asynchronous motors, ensuring that the motor obtains sufficient starting torque at the moment of power-on and maintains stable current phase during operation. Simply put, it acts as a "booster" and "voltage stabilizer" for the motor. Technical Characteristics13μF Capacitance and 450V Withstand Voltage: The 13μF capacitance precisely matches the magnetic field conversion requirements of small and medium-sized motors, while the 450V rated voltage ensures ample safety margin even in environments with 220V or higher fluctuating voltages, preventing the capacitor from being punctured by instantaneous high voltage. S0-level Safety Explosion-proof and Self-healing Properties:  Utilizing a metallized film winding process, it possesses strong self-healing capabilities. Even if a local fault occurs in the internal dielectric, the damaged point will quickly vaporize and be isolated, allowing the capacitor to resume normal operation. The S0 rating signifies high operational reliability under non-extreme damage conditions. Fully Sealed Epoxy Resin Encapsulation: The casing is filled with highly flame-retardant epoxy resin. This fully sealed structure completely isolates external moisture and air, significantly improving the capacitor's insulation strength and corrosion resistance, allowing it to operate stably for a long time in humid or environments with large temperature differences (such as water pumps or air-cooled equipment). Impact Resistance and Strong Overload Capacity:  Specifically optimized for the surge current generated at the moment of motor startup. The internal electrodes have extremely low equivalent loss, capable of withstanding thermal shock caused by frequent switching, effectively extending the service life of the entire circuit. Bottom Bolt and Lead Wire Design:  Comes with a bottom mounting bolt for quick fixing on the equipment chassis or casing, providing strong vibration resistance. The output uses flexible lead wires, greatly simplifying wiring construction in confined spaces and ensuring a secure connection. Core Application ScenariosThis capacitor mainly serves the starting and operation of single-phase motors, commonly found in the following equipment: Fluid conveying equipment: such as household water pumps and circulation pumps. Ventilation and refrigeration systems: such as powerful electric fans, air conditioner outdoor unit fans, and range hoods. Air conditioning equipment: such as air coolers and cold storage ventilation motors.

The CBB60 30μF 450V is a film capacitor specifically designed for AC motor starting and running. It uses a polypropylene film as the dielectric and features a combination of lead wires, screw mounting points, and terminal blocks to provide continuous and stable phase compensation and current support for various household appliances and small industrial water pumps. Its S0 explosion-proof rating and fully sealed packaging ensure safe operation in complex environments. Technical Characteristics and Physical PerformanceSelf-healing structure design: When a local breakdown occurs within the dielectric, the metallized layer around the breakdown point quickly evaporates, automatically isolating the fault point and restoring insulation performance. This feature significantly extends the component's lifespan and prevents system failure due to single-point failure. Extremely low dielectric loss:  Under long-term power-on conditions, the internal heat generation is extremely low. The low-loss characteristic not only improves energy conversion efficiency but also ensures that the capacitor maintains capacity stability even in high-temperature environments, reducing performance degradation caused by thermal runaway. High insulation strength and impact resistance:  It possesses strong voltage fluctuation resistance and can withstand surge currents generated during motor startup. High insulation resistance effectively prevents leakage current, ensuring stable performance even under frequent start-stop conditions. Fully sealed epoxy resin encapsulation: The casing is made of flame-retardant material, and the interior is filled with epoxy resin. This fully sealed process isolates external moisture and dust, giving the component excellent weather resistance, allowing it to operate safely in humid or environments with large temperature differences (such as pump rooms or kitchen and bathroom appliances). Convenient engineering installation design: It comes with fixing screws and terminal blocks. This structure simplifies the assembly process, eliminating the need for complex welding processes; circuit connections can be completed through screw crimping, making it particularly suitable for after-sales maintenance and replacement or modular production line installation. Application ScenariosDue to its nominal capacity of 30μF and voltage rating of 450V, this component is widely integrated into the power systems of the following equipment: Air circulation systems: Air coolers, exhaust fans, powerful fans, and range hoods. Water supply and drainage engineering: Various small electric water pumps and booster pumps. Automated equipment: Requires small single-phase asynchronous motors with inductive load compensation.

The CBB60 40uF 450V S0 is a film capacitor specifically designed for AC motors. It primarily serves a dual role of "starting" and "running" in the circuit, providing the necessary phase difference and auxiliary torque to the motor by storing and releasing electrical charge. This model features a leaded design, offering flexible installation and possessing extremely high electrical stability and safety protection standards, making it an indispensable energy storage component in civil and industrial AC motor power systems. Technical Characteristics and Core AdvantagesElectrical Loss and Insulation Performance: This capacitor uses high-quality metallized polypropylene film as the dielectric, resulting in extremely low dielectric loss and significantly reducing heat generation during operation. Simultaneously, its high insulation resistance ensures accurate current transmission, effectively preventing leakage and improving the overall energy conversion efficiency. Self-Healing Capability and Long-Term Stability: It possesses excellent "self-healing" characteristics; when a local breakdown point occurs in the internal film, the metal plating around the fault point quickly evaporates and restores insulation. This mechanism gives the capacitor strong fault tolerance, allowing it to maintain stable capacitance even under long-term high-load operation, extending the equipment's service life. Impact Resistance and Overload Protection: This capacitor demonstrates excellent impact resistance against surge currents generated during motor startup. Its internal structure is reinforced through special processes, enabling it to withstand short-term overcurrent and overvoltage shocks. It exhibits strong robustness in complex and variable power grid environments, ensuring the system does not fail due to load fluctuations. Fully Sealed Encapsulation Process: The exterior uses a flame-retardant casing with epoxy resin full-seal filling. This physical protection structure effectively isolates against external moisture, dust, and corrosive gases, allowing it to maintain excellent physical performance even in humid or high-temperature difference environments, ensuring S0-level safety operation standards. Typical Application ScenariosDue to its excellent power compensation characteristics, this series of capacitors is widely used in various single-phase AC motor equipment: Air Handling: Industrial air coolers, high-power ventilation fans, range hoods. Fluid Machinery: Various household and industrial electric water pumps. Power Drive: Air compressors, washing machines, and other auxiliary starting applications requiring continuous and stable torque.

This CBB60 10μF 450V capacitor is a start and run capacitor specifically designed for AC motors. It is commonly installed in devices such as household appliances, water pumps, and fans, playing a crucial role in "energy storage" and "phase shifting," allowing the motor to start smoothly and maintain stable operation. Its specific specifications and technical characteristics are as follows: Core Specifications ExplainedCBB60 Model: This indicates it is a polypropylene film capacitor. This material has good voltage resistance and extremely low losses at high frequencies. 10μF Capacitance: A measure of its charge storage capacity. 10 microfarads is a very common specification, suitable for small to medium power motors. 450V Voltage Rating: This refers to its maximum operating voltage limit. It ensures circuit safety even in environments with voltage fluctuations. 2+2 Terminals: This means there are four terminals (two per group) on top of the capacitor. This design greatly facilitates parallel wiring or the distribution of multiple functions, making installation very flexible. Technical Performance and AdvantagesSelf-healing: This is a core advantage of polypropylene film. If a small breakdown point occurs in the internal dielectric, it can automatically repair the insulation performance through a physical reaction, preventing the entire unit from failing and significantly extending its lifespan. High Insulation and Low Loss: The capacitor generates very little heat during operation. This means it can maintain high insulation resistance, reduce energy waste, and ensure motor operating efficiency. Impact and Overload Resistance: A large surge current is generated at the moment the motor starts. This capacitor has strong impact resistance and can withstand the test of instantaneous high current, preventing breakdown or bulging. Structure and Protection LevelFully Sealed Epoxy Resin Encapsulation: The interior is encapsulated with epoxy resin, and the exterior is a flame-retardant plastic shell. This structure provides excellent sealing, not only protecting against moisture but also resisting environmental vibrations, ensuring that internal components are not corroded by external air and moisture. S0/C Safety Standard: Complies with capacitor safety rating specifications, meaning it has certain passive safety protection in case of failure, reducing the risk of fire caused by malfunction. Common Application ScenariosFluid Equipment: Widely used in various small household self-priming pumps and booster pumps. Ventilation systems: including household ceiling fans, exhaust fans, range hoods, and air coolers. Household appliances: washing machine spin motors, food processors, and other equipment requiring auxiliary torque for starting.

This is a CBB60 type AC running capacitor. It acts like a miniature "power reservoir," specifically designed to provide starting power and phase compensation for single-phase AC motors during operation. In household and industrial equipment, it's a core electronic component that ensures smooth and cool motor operation. The following are the technical characteristics and application logic of this model: Core Specifications and Safety AttributesParameter Logic: 10μf represents the charge storage capacity, meeting the starting requirements of small and medium-sized motors; 450V is the voltage withstand threshold, ensuring robustness even during voltage fluctuations; the S3 explosion-proof rating means its internal structure has a physical circuit breaker or pressure relief mechanism in case of extreme failure, preventing open flames. Physical Form:  It uses a C-type structure with dual white wire output. This wiring method is non-polarized, making installation extremely flexible; it can be directly connected to the motor's starting winding. Core Process AdvantagesLoss and Efficiency: The internal use of metallized film dielectric results in extremely low power loss. This means very little heat is generated during energy conversion, significantly improving the overall energy efficiency of the motor. Self-Healing Characteristics: This is the core advanced technology of this component. If the internal film experiences a local breakdown, the fault point will automatically fuse and restore insulation, allowing the capacitor to "self-repair" and continue working, extending the equipment's lifespan. Encapsulation Protection:  It uses a fully sealed epoxy resin process. This structure is not only shock-resistant but also effectively isolates external moisture, oil fumes, and corrosive gases, allowing it to maintain high insulation resistance even in harsh environments. Typical Application ScenariosThis capacitor is typically integrated into various single-phase AC drive equipment, responsible for assisting the motor in establishing starting torque: Air Circulation Systems: Such as household fans, range hoods, and air conditioners. Fluid Driving Equipment: Various small electric water pumps and household booster pumps. Specific Mechanical Devices: Ventilator drive modules and other miniature power units requiring constant speed support. Operational ReliabilityImpact Resistance: It can withstand the peak current surge generated during motor startup, and has strong overload tolerance under high-load operating conditions, ensuring long-term system operation without parameter drift.

The CBB60 12uf 450V S0 C Oil Resistant is a running capacitor specifically designed for AC motors. Its primary function is to provide the necessary phase shift during motor startup and operation, ensuring smooth and efficient power output. Its oil-resistant properties allow it to maintain a long lifespan even in harsh industrial or oily environments. The following are the core technical characteristics of this capacitor: 1. Electrical Parameters and Specifications:Capacitance and Voltage: 12uf represents its actual energy storage capacity, which determines the motor's starting torque; 450V is the maximum operating voltage limit, ensuring electrical safety under mains voltage fluctuations. S0 Safety Rating: This indicates that the capacitor is in a standard safety state (not fireproof or explosion-proof) in case of failure (requires external protection), suitable for integration into systems with existing protection measures. C-class Lifespan Rating: Corresponds to the operating life rating in international standards, typically referring to 3,000 hours of continuous operation under rated conditions. 2. Structural Design: Fully Sealed Epoxy Resin EncapsulationThe interior is completely encapsulated with epoxy resin. This fully sealed structure completely isolates the capacitor from external moisture and dust. Even in humid environments with large temperature variations, such as water pumps or air conditioners, the internal metallized film will not fail due to oxidation, ensuring high stability of insulation resistance. 3. Material Advantages: Self-healing Performance and Low LossThe capacitor's internal dielectric material has a "self-healing" function – when a small electrical breakdown occurs in the film, the metallized layer at the damaged area quickly evaporates, automatically restoring the insulation performance. This feature significantly improves the product's resistance to surge currents, making it extremely stable in frequently starting equipment (such as range hoods and fans). 4. Environmental Resistance: Special Oil-Resistant TreatmentThis model features enhanced resistance to chemical corrosion in its casing and sealing materials. In kitchen exhaust systems or working environments with oil mist, ordinary capacitors' casings are prone to embrittlement and cracking, while this capacitor effectively resists oil contamination, preventing electrical short circuits caused by casing cracks.  5. Core Application ScenariosFluid Machinery: Various small electric water pumps and booster pumps.Ventilation Systems: Industrial fans, air coolers, and high-suction range hoods.General-Purpose Motors: Suitable for any AC asynchronous motor requiring phase splitting startup and having specific power factor requirements.

The CBB60 12uF 450V is a start and run capacitor specifically designed for AC motors. It uses polypropylene film as the dielectric material and is primarily responsible for providing the necessary phase difference during motor startup and maintaining stable torque during operation. Featuring a "double white lead" wiring design and a fully sealed construction, this capacitor is a key component in ensuring the continuous and efficient operation of household appliances and small industrial equipment. Technical Characteristics and Application LogicInternal Structure and Self-Healing Mechanism: This component is constructed using metallized film winding. Its core advantage lies in its self-healing property: when a local breakdown occurs internally, the metal layer around the breakdown point quickly evaporates, automatically insulating the fault point and preventing the capacitor from failing instantly, thus extending the overall service life of the equipment. Fully Sealed Epoxy Resin Encapsulation: The capacitor features a temperature-resistant outer casing and is completely sealed internally with epoxy resin. This structure provides it with a very high protection rating (S0 level), effectively isolating it from external moisture and dust. Whether in a damp pump room or an outdoor air conditioning environment with significant temperature fluctuations, its insulation resistance remains high, preventing leakage risks. Electrical Stability and Surge Resistance: At a 450V voltage rating, this capacitor exhibits extremely low dielectric loss. Its physical characteristics give it strong overload capacity when facing the surge current during motor startup, effectively preventing voltage fluctuations from damaging the motor windings. Typical Application Scenarios: With a standard capacity of 12uF, it is widely used in the following single-phase AC motor equipment: Air Circulation Systems: Cooling fans, ventilation fans, range hoods. Fluid Equipment: Small electric water pumps, booster pumps. Cleaning Equipment: Washing machine spin motors or small industrial centrifuges. Double White Lead Design:  It uses two white flexible leads, which are non-polarized, greatly reducing installation difficulty. This flexible wiring method is particularly suitable for wiring in compact casings, ensuring a secure connection even in vibrating environments.

This 12μf 450V C S0 double black lead capacitor is a core electronic component designed for AC motor starting and running. It primarily provides phase shift for motor starting and current compensation during operation, acting as the "heart" of the electrical power system, ensuring smooth operation. Key Features:High-Efficiency Conversion and Extremely Low Loss: Its internal materials are treated with a special process, ensuring minimal energy loss during energy conversion. This means it generates low heat during long-term operation, significantly improving the energy efficiency of the entire appliance. Excellent Self-Healing and Voltage Protection: It possesses superior "self-healing" physical characteristics, meaning that when minor breakdowns occur in the internal dielectric, it can automatically repair the fault point and restore insulation performance. Combined with its surge current resistance design, it maintains structural integrity even when facing unstable voltage fluctuations or instantaneous high loads. Highly Sealed Epoxy Resin Encapsulation:  The fully sealed epoxy resin encapsulation process provides the capacitor with strong moisture, dust, and vibration resistance, allowing it to perform reliably in various harsh physical working environments. Double Black Lead Design: Equipped with two black lead wires, it not only simplifies the wiring process but also provides high compatibility and versatility in circuit installation, allowing for quick integration into existing power systems. Typical Applications:Air Circulation Systems: Widely used in various exhaust fans, range hoods, and air coolers, ensuring quiet and stable motor starting. Temperature Control Equipment: As a key component in air conditioners or circulation pumps, it supports the stability of the equipment during long-term continuous operation. Small Power Water Pumps: Provides necessary starting phase shift support during the frequent starting and stopping of small household or industrial water pumps.

This CBB60 15μf 450V capacitor is designed specifically for the starting and running of AC motors. It is primarily responsible for providing the necessary phase shift during the initial motor startup and ensuring stable current flow during operation. Its compact cylindrical shape and dual-terminal (1+1 terminal) design make it very common in various household appliances and small industrial water pumps. Core Specifications and Technical Highlights:Capacitance and Voltage Rating (15μf / 450V): The 15 microfarad capacitance accurately matches the magnetic field requirements of small and medium-sized motors. The 450V voltage rating provides ample headroom, effectively handling voltage fluctuations and preventing capacitor breakdown under instantaneous high voltage. Protection Level and Safety Structure (S0 / C): S0 represents its basic explosion-proof safety rating, combined with a Class C lifespan definition (typically referring to stable operation for thousands of hours at rated voltage). Its casing is made of flame-retardant plastic, and the interior is fully encapsulated with epoxy resin. This fully sealed structure not only isolates moisture but also enhances physical shock resistance. Wiring Design (1+1 Terminal): The product features a pair of metal terminal tabs on the top. This design simplifies the installation process, eliminating the need for complex soldering; the motor leads can simply be connected via the terminals, making it ideal for automated production and subsequent maintenance and replacement. Electrical Characteristics and Self-Healing: This capacitor uses metallized polypropylene film as the dielectric. This material possesses excellent "self-healing" capabilities – when small breakdown points occur within the film, the fault area quickly vaporizes and re-insulates, preventing the entire component from failing. At the same time, its low-loss characteristics ensure minimal heat generation during long-term operation. Application Areas: Its current carrying capacity and impact resistance make it an ideal core component for fans, air coolers, range hoods, and various small electric water pumps, ensuring that the motor starts quickly and runs quietly even under high load conditions.

The CBB60 20uF 450V sheathed capacitor is an industrial-grade AC drive component, utilizing a polypropylene film dielectric core, specifically designed for the starting and continuous operation of single-phase AC motors. Its sheathed wire design enhances physical protection, providing exceptional reliability in high-frequency vibration or complex wiring environments. Key Features and AdvantagesElectrical Loss and Load Capacity: The component exhibits extremely low internal loss, effectively reducing heat generation during operation. It possesses excellent surge current resistance, providing robust overload protection during frequent motor starts or significant load fluctuations, ensuring the electrical stability of the circuit system. Self-Healing and Insulation Mechanism:  Utilizing a high-purity metallized film, it features a significant "self-healing" function—meaning that in the event of localized dielectric breakdown, it can instantly restore insulation performance. Combined with high-standard insulation resistance design, this greatly extends the device's fatigue life under continuous operation. Fully Sealed Process Structure: The entire unit employs epoxy resin vacuum encapsulation technology, forming a tight physical barrier. This structure isolates the capacitor from external moisture, dust, and corrosive gases, allowing it to maintain constant performance parameters even under harsh conditions such as high temperature or high humidity. Industrial Application Compatibility: This model is widely compatible with various motor drive equipment. Whether it's air coolers requiring constant airflow, high-suction range hoods, or high-frequency operating household fans and miniature water pumps, this capacitor enables stable torque output and efficient phase shift control.

The CBB60 30uF 450V S0 B Oil Resistant is a high-performance AC motor starting and running capacitor. Often referred to as the "pacemaker" of the motor, it is primarily responsible for providing the necessary phase shift during equipment startup and ensuring stable current and energy efficiency during motor operation. Its oil-resistant design and specific safety rating make it extremely durable in complex industrial or household environments. Core Technical Features:Electrical Performance and Energy Efficiency: This model features extremely low dielectric loss, meaning that almost no excess heat is generated during energy conversion. The high insulation resistance design ensures precise current flow, avoiding unnecessary energy loss. Structural Safety and Protection:  Utilizing a fully sealed epoxy resin process, it meets the S0 safety rating standard. This "all-encompassing" encapsulation effectively isolates external moisture and impurities, and combined with its oil-resistant properties, maintains the stability of internal components even in harsh conditions such as oil and humidity. Impact Resistance and Self-Healing Mechanism: The component possesses excellent "self-healing" capabilities, meaning that in the event of instantaneous overvoltage breakdown, it can automatically repair the damaged point without affecting overall operation. At the same time, its structure can withstand high-frequency surge current impacts, demonstrating strong resilience under overload conditions. Power Adaptability: The 30uF capacitance and 450V voltage rating make it an ideal partner for medium-power motors. Whether for household range hoods and exhaust fans, or industrial-grade circulating pumps and air conditioners, it provides stable auxiliary torque, ensuring smooth motor starting and stopping. Physical Reliability: Classified under the B-class operating life standard, this means that under rated conditions, it has a long service life, reducing frequent maintenance caused by capacitor degradation and maintaining the consistency of the entire system.
