Can I replace CBB60 with CBB65?

Can I Replace CBB60 with CBB65? The Direct Answer

The short answer is: in most cases, no — you should not directly replace a CBB60 capacitor with a CBB65 without carefully verifying the specifications of your application. While both are AC motor run capacitors that share the same basic function of improving motor efficiency and power factor, they differ significantly in physical construction, housing design, voltage ratings, and intended installation environments. Swapping one for the other without understanding these differences can lead to equipment malfunction, premature capacitor failure, or even a safety hazard.

That said, there are specific scenarios where a CBB65 can be used as a functional substitute for a CBB60, provided the capacitance value, voltage rating, and terminal configuration are compatible. This article walks through everything you need to know before making that swap.

What Is a CBB60 Capacitor?

A CBB60 capacitor is a cylindrical, film-type AC motor run capacitor housed in a plastic casing. It is manufactured in accordance with Chinese national standard GB/T 3667, and widely used in single-phase induction motors for applications such as water pumps, washing machines, power tools, and small compressors. The "CBB" prefix indicates it is a metallized polypropylene film capacitor, while "60" refers to the specific product series designed for motor operation.

Key characteristics of the CBB60 include:

  • Cylindrical shape with a plastic (typically polypropylene) outer shell
  • Common capacitance range: 1 µF to 100 µF
  • Rated voltage: typically 250VAC or 450VAC
  • Operating temperature range: -40°C to +70°C (standard)
  • Wire lead or spade terminal connections
  • Not specifically designed for outdoor or oil-immersed environments

The CBB60 is one of the most commonly used motor capacitors globally, especially in pump motors and small household appliances. Its plastic housing makes it lightweight and cost-effective, but it also limits its resistance to moisture, oil, and high ambient temperatures compared to metal-housed counterparts.

What Is a CBB65 Capacitor?

A CBB65 capacitor is also a metallized polypropylene film AC motor run capacitor, but it features a round aluminum (metal) canister housing instead of a plastic shell. This design makes it significantly more robust and suitable for harsh environments. The CBB65 is the standard capacitor type used in air conditioning compressors, HVAC systems, and refrigeration equipment — applications where ambient temperature, humidity, and vibration levels are much higher than in typical household motor applications.

Key characteristics of the CBB65 include:

  • Round aluminum metal canister housing (oil-filled or dry film)
  • Common capacitance range: 5 µF to 60 µF (single) or dual-section configurations
  • Rated voltage: typically 370VAC or 440VAC
  • Operating temperature: up to +85°C or +105°C in high-temp rated versions
  • Spade (quick-connect) terminals at the top
  • Designed for continuous duty in enclosed or high-heat environments

The aluminum housing of the CBB65 also provides better self-healing and heat dissipation compared to the plastic-enclosed CBB60. This makes it the preferred choice wherever the capacitor is mounted inside a sealed unit — like a compressor housing — where operating temperatures routinely exceed what a CBB60 plastic body can safely tolerate.

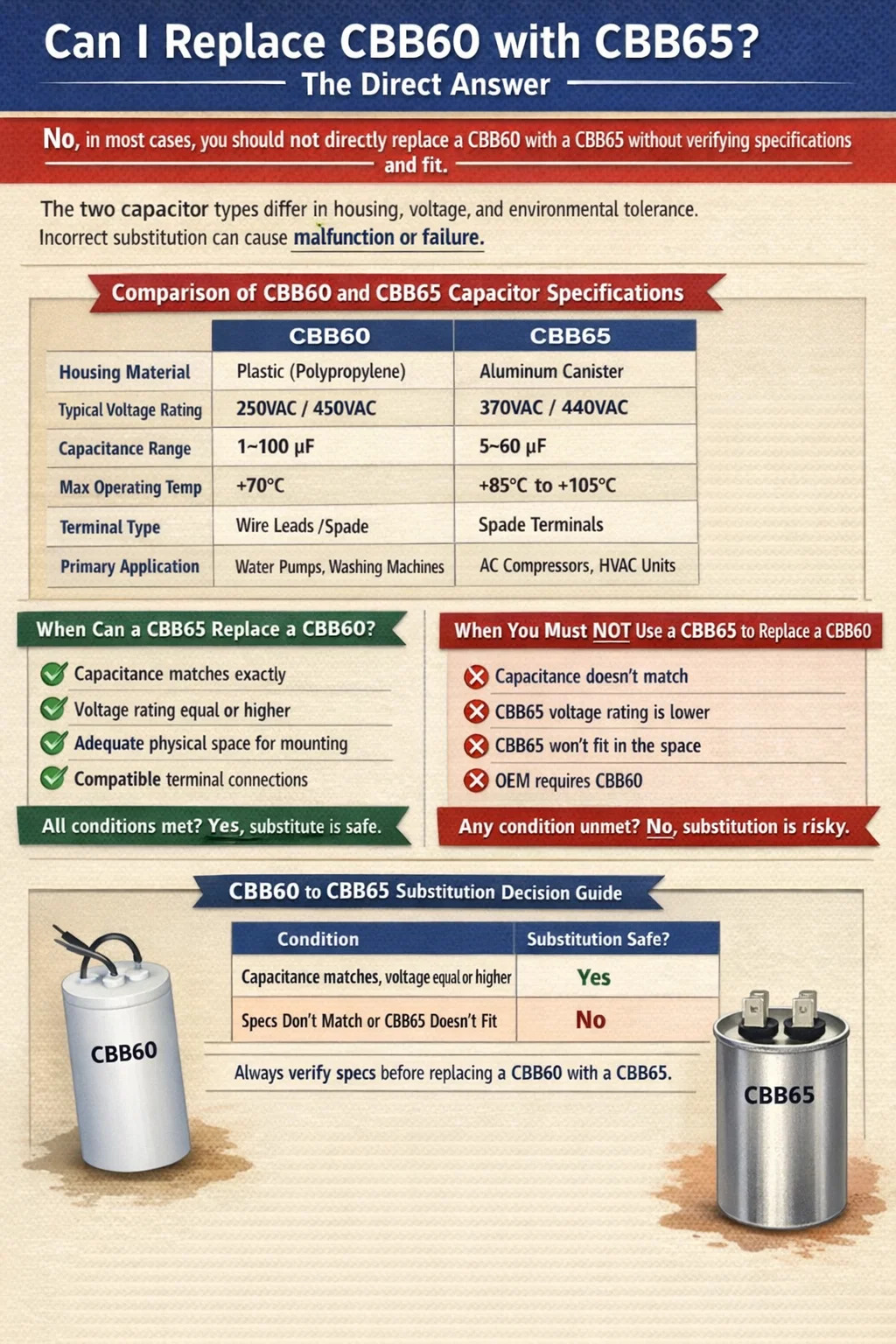

CBB60 vs CBB65: Side-by-Side Specification Comparison

Understanding the technical differences between these two capacitor types is essential before attempting any substitution. The table below outlines the key specification differences:

Comparison of CBB60 and CBB65 capacitor specifications for substitution assessment
Feature CBB60 CBB65
Housing Material Plastic (polypropylene) Aluminum metal canister
Shape Cylindrical, vertical Round canister, flat top
Typical Voltage Rating 250VAC / 450VAC 370VAC / 440VAC
Capacitance Range 1–100 µF 5–60 µF
Max Operating Temp +70°C (standard) +85°C to +105°C
Terminal Type Wire leads or spade Spade (quick-connect)
Mounting Method Bracket or free-standing Strap bracket or panel mount
Primary Application Water pumps, washing machines AC compressors, HVAC units
Environmental Rating Standard indoor use Outdoor / high-humidity rated
Price (approx.) Lower Higher

Key Reasons Why CBB60 and CBB65 Are Not Freely Interchangeable

Different Housing and Physical Dimensions

The most immediately obvious difference is the physical form. The CBB60 has a tall, slender cylindrical body made of plastic, while the CBB65 has a squat, wide aluminum canister form. These two shapes do not share the same mounting brackets or enclosure footprints. If you are replacing a component in a pump motor housing designed around the CBB60's profile, a CBB65 canister physically will not fit in the same space without modification. Forcing an incompatible form factor into a tight motor compartment creates mechanical stress and potential damage to surrounding components.

Voltage Rating Differences Can Cause Failure

CBB60 capacitors commonly come in 250VAC and 450VAC versions, while CBB65 units are typically rated at 370VAC or 440VAC. If you are using a 250VAC CBB60 in a 220V motor circuit and attempt to substitute a 370VAC CBB65, the voltage rating mismatch going the other direction — using a lower-rated CBB60 in a circuit that needs a 370VAC rated part — will result in premature dielectric breakdown, bulging, and eventual capacitor failure, sometimes with violent consequences. Always match or exceed the original voltage rating when substituting capacitors.

Temperature Tolerance Is a Real-World Concern

A standard CBB60 capacitor is rated to operate at a maximum of 70°C. This is perfectly fine for a pump motor in a well-ventilated environment. However, if you attempt to use a CBB60 inside an air conditioning compressor — which is the native environment of the CBB65 — ambient temperatures near the compressor can routinely reach or exceed 80–90°C. Under those conditions, a CBB60's plastic housing will soften, the internal film may degrade faster, and the component lifespan will drop dramatically. The CBB65's aluminum housing and higher-rated dielectric material are specifically engineered to handle this continuous heat exposure.

Terminal and Wiring Compatibility

CBB60 capacitors often use wire leads — bare or insulated wires exiting the base or top — while CBB65 capacitors universally use spade (flag) terminals at the top of the canister. If the existing wiring harness in your motor has wire-lead connectors designed for a CBB60, connecting to a CBB65's spade terminals requires additional connectors or rewiring. In professional repair contexts, this is manageable, but in a quick field replacement scenario, mismatched terminals create loose connections that can arc, overheat, or cause intermittent failures.

When Can a CBB65 Replace a CBB60?

Despite the differences outlined above, there are legitimate circumstances where a CBB65 can safely serve as a substitute for a CBB60. These conditions must all be met simultaneously:

  • Matching capacitance value: The µF rating of the CBB65 must be the same as the CBB60 being replaced. A motor specified for a 20 µF run capacitor cannot safely run on a 25 µF or 15 µF unit without re-engineering the motor circuit.
  • Equal or higher voltage rating: If the original CBB60 was rated at 450VAC, you must use a CBB65 that is also rated at 450VAC or higher. You cannot use a 370VAC CBB65 to replace a 450VAC CBB60.
  • Physical space and mounting accommodation: There must be sufficient room in the motor enclosure for the CBB65 canister's wider, shorter profile, and appropriate brackets or hardware must be available to secure it properly.
  • Terminal compatibility or adaptable wiring: Spade connectors or adaptors must be available to connect the CBB65 to the existing wire leads of the motor circuit.
  • Acceptable frequency rating: Both types are designed for 50/60 Hz systems. Confirm the motor frequency matches the capacitor's specification.

If all five conditions above are satisfied, a CBB65 is electrically compatible with a CBB60 application. In fact, because the CBB65 has a more robust housing and higher thermal tolerance, it can be considered an upgrade in terms of durability — particularly if the motor operates in a warm or humid environment. Some repair technicians routinely use CBB65 units to replace CBB60 capacitors in outdoor pump installations precisely because of the better environmental sealing of the aluminum body.

When You Must Not Use a CBB65 to Replace a CBB60

There are equally clear situations where the substitution should never be attempted, regardless of available workarounds:

  • The required capacitance value is not available in CBB65: CBB65 units typically range from 5 µF to 60 µF. If your CBB60 application requires a 1 µF, 2 µF, or 80 µF capacitor, no matching CBB65 exists on the market for those values.
  • Space constraints make physical fit impossible: In compact motor housings — such as those inside washing machine drums or submersible pump bodies — there is no room for the CBB65's wider diameter.
  • The original equipment manufacturer specifies CBB60 for warranty or certification purposes: Replacing a certified component with a non-specified type may void warranties, fail safety inspections, or violate product compliance requirements in regulated industries.
  • The voltage rating of available CBB65 units is lower than required: Never downgrade the voltage rating of a run capacitor. Doing so guarantees premature failure and possible hazard.

Practical Guide: How to Check Compatibility Before Substituting

Before replacing any CBB60 capacitor with a CBB65, perform the following verification steps:

  1. Read the label on the original CBB60 capacitor. Note the capacitance (in µF), voltage rating (VAC), frequency (Hz), and any temperature class markings.
  2. Identify the CBB65 unit you plan to use. Confirm it matches the capacitance exactly and meets or exceeds the voltage rating.
  3. Measure the available physical space in the motor housing using calipers. Compare the diameter and height of the CBB65 against the available cavity.
  4. Check the terminal type and wiring. Determine whether you need spade-to-wire adaptors, and whether those adaptors are rated for the current and voltage of the circuit.
  5. Check the motor's operating environment. If the motor operates above 70°C ambient, the CBB65's higher thermal rating is actually a benefit. If it operates below 70°C in a clean, dry indoor space, a like-for-like CBB60 replacement is preferred.
  6. Test the circuit after replacement. After installation, use a clamp meter to verify the motor draws the expected operating current. An unusual draw could indicate a capacitance mismatch affecting motor performance.

Understanding CBB60 Capacitor Failure and Why the Right Replacement Matters

CBB60 capacitors fail for several well-documented reasons, and understanding these failure modes helps clarify why choosing the right replacement is so important:

Thermal Aging

Every 10°C increase in operating temperature roughly halves the service life of a film capacitor — a well-established relationship known as the Arrhenius equation applied to capacitor aging. A CBB60 rated for 70°C that operates continuously at 80°C due to being placed in a warm motor compartment will age at roughly twice the expected rate. This is why using a CBB65 (rated to 85°C or 105°C) in a high-temperature environment provides meaningfully longer service life, even if the two units have identical capacitance and voltage ratings.

Overvoltage Stress

Voltage spikes — from switching transients, utility fluctuations, or motor back-EMF — stress the dielectric film inside both CBB60 and CBB65 capacitors. A capacitor operating at 90–95% of its rated voltage has a substantially shorter life than one operating at 70–80% of rating. When choosing a replacement, selecting a unit with a voltage rating 20–30% above the actual circuit voltage is good engineering practice. For example, in a 220V circuit, a 450VAC CBB60 or a 440VAC CBB65 both provide a healthy safety margin.

Moisture Ingress

The plastic housing of a CBB60 is more permeable to moisture over time than the sealed aluminum canister of the CBB65. In outdoor pump installations, pool equipment, or any application where the motor is exposed to humidity or splashing water, the CBB65's metal housing provides significantly better protection against moisture-induced failure. This is one legitimate reason why some pump repair specialists choose to upgrade from CBB60 to CBB65 when rebuilding motors for outdoor use, even if the original specification called for a CBB60.

Common Applications Where This Question Comes Up

The CBB60-to-CBB65 substitution question most frequently arises in the following repair and maintenance scenarios:

Water Pump Repair

CBB60 capacitors are the standard in single-phase water pump motors. Pump capacitors typically range from 8 µF to 30 µF at 450VAC. When the original CBB60 fails, technicians sometimes have CBB65 units in stock and wonder whether they can use them. For outdoor pumps, a CBB65 with matching specs is an acceptable and often preferable substitute due to better environmental sealing. For submersible pumps with very tight enclosures, physical fit may prevent the swap.

Washing Machine Motor Capacitors

Washing machines commonly use CBB60 capacitors in their drum drive motors, often in the 6 µF to 12 µF range at 450VAC. The motor housing in a washing machine is compact and not designed for the CBB65 form factor. Physical fit is typically the main obstacle here, making a like-for-like CBB60 replacement the more practical choice.

Air Conditioning and HVAC Systems

This is genuinely the CBB65's home territory. Air conditioning compressors and fan motors use CBB65 capacitors almost exclusively. If someone asks whether they can use a CBB60 to replace a failed CBB65 in an AC unit — the reverse of the main question — the answer is a firm no under most conditions, because the CBB60 will not survive the thermal and environmental conditions inside a compressor unit for any meaningful service life.

Power Tools and Small Machinery

Some larger power tools with single-phase induction motors — such as table saws, bench grinders, and dust collectors — use CBB60 capacitors. These motors are typically operated in workshop environments at moderate temperatures. The original CBB60 specification is generally appropriate here, and substitution with a CBB65 is possible if dimensions permit but offers no meaningful advantage over a properly rated CBB60 replacement.

What Happens If You Use the Wrong Capacitor?

Using an incompatible capacitor — whether wrong capacitance, wrong voltage rating, or wrong type — in a motor circuit does not always result in immediate failure. Sometimes the motor starts and appears to run normally, only to develop problems weeks or months later. Understanding what goes wrong helps underscore why the right specification matters:

  • Wrong capacitance (too high): The motor may overheat due to excessive starting or running current. The winding insulation degrades faster, shortening motor lifespan. Measured running current will typically be higher than nameplate specification.
  • Wrong capacitance (too low): The motor may fail to develop full torque, run at reduced efficiency, struggle to start under load, or produce excessive vibration and noise.
  • Undervoltage-rated capacitor: The dielectric film gradually breaks down under the sustained overstress. The capacitor may bulge, leak, or rupture — in some cases causing a small fire or releasing acrid smoke from the plastic housing.
  • Wrong temperature rating: The capacitor ages faster and loses capacitance over time. As its effective capacitance drifts downward from its rated value, the motor performance degrades gradually until the capacitor fails completely.

A failed or wrong-spec capacitor can also damage the motor windings themselves, turning what would have been a simple $5–$20 capacitor replacement into a $100–$500 motor rewind or full motor replacement. This is why spending an extra few minutes verifying specification compatibility before installation is always worth the time.

Summary: CBB60 vs CBB65 Substitution Decision Guide

Use the following decision guide to determine whether replacing a CBB60 with a CBB65 is appropriate in your situation:

Decision guide for replacing CBB60 capacitors with CBB65 units
Condition Substitution Safe? Notes
Capacitance matches exactly, voltage rating equal or higher Yes Verify physical fit and terminals
Capacitance matches, but CBB65 voltage rating is lower No Risk of dielectric failure
Capacitance does not match No Motor performance will be impaired
CBB65 physically does not fit the housing No Mechanical interference risk
All specs match, outdoor/high-humidity
