CBB60 Capacitor Polarity: Is It Positive or Negative?

CBB60 Capacitor Polarity: The Direct Answer

The CBB60 capacitor is neither positive nor negative. It is a non-polarized AC capacitor, which means it has no designated positive or negative terminal. You can connect either terminal to either side of the circuit without any risk of damage or malfunction. This is one of the most fundamental characteristics that distinguishes it from electrolytic capacitors, which are strictly polarized and will fail — or even explode — if connected incorrectly.

Many people searching for polarity information about CBB60 capacitors come from a background of working with DC circuits, where electrolytic capacitors are common. In those contexts, polarity matters enormously. But the CBB60 is designed specifically for alternating current (AC) environments, where the current direction reverses continuously — typically 50 or 60 times per second depending on your local grid frequency. In such an environment, a polarized capacitor would be destroyed almost immediately. The CBB60 handles this seamlessly because its internal structure is symmetric and non-polarized.

So if you see two terminals on a CBB60 capacitor and wonder which is which — stop worrying. They are interchangeable. Just connect them to your circuit and the capacitor will do its job.

What Is a CBB60 Capacitor and What Is It Used For

The CBB60 is a metalized polypropylene film capacitor designed for AC motor starting and running applications. The name "CBB" is a Chinese standard designation where "CB" refers to the capacitor type and "B60" refers to the specific series within that classification. These capacitors are sometimes also called "motor run capacitors" or "AC film capacitors," and they are widely used across the globe in single-phase induction motors.

You will find CBB60 capacitors in a wide range of everyday equipment, including:

• Water pumps and submersible pumps used in homes, agriculture, and construction
• Air compressors and air conditioning units
• Washing machines (particularly older drum-type models)
• Electric fans and ventilation equipment
• Power tools that use single-phase AC induction motors
• Swimming pool pumps and spa equipment
• Agricultural irrigation motors

The typical capacitance range for CBB60 capacitors runs from 1 µF to 100 µF, with voltage ratings commonly at 250VAC or 450VAC. Some higher-duty models are rated at 500VAC. The most frequently encountered values in water pump applications are between 8 µF and 30 µF. For washing machine motors, 6 µF to 16 µF is common. The capacitor body is typically cylindrical with two or four wire leads extending from one end, encased in a plastic shell that provides insulation and environmental protection.

The internal construction uses a thin film of polypropylene as the dielectric material, with aluminum metallization deposited directly onto the film. This design gives the capacitor its self-healing property — if a tiny portion of the dielectric is punctured by a voltage spike, the local metallization evaporates and effectively repairs the fault, extending the capacitor's service life significantly compared to older paper or foil designs.

Why CBB60 Capacitors Have No Positive or Negative Terminal

To understand why polarity is irrelevant for a CBB60 capacitor, it helps to understand the basic physics of capacitors and how alternating current behaves differently from direct current.

How AC Current Changes Everything

In a DC circuit, current flows in one direction only. A polarized capacitor like an electrolytic has an oxide layer on one plate that only functions as a dielectric when the correct terminal is connected to the positive voltage. If you reverse the polarity, the oxide layer breaks down, gas builds up inside the capacitor, and catastrophic failure follows — sometimes violently.

AC current reverses direction at the grid frequency. In a 50 Hz system, the current completes 50 full cycles per second, meaning it reverses direction 100 times per second. In a 60 Hz system, it reverses 120 times per second. A capacitor in this environment must be able to charge and discharge in both directions with equal efficiency. This is exactly what the polypropylene film dielectric in a CBB60 provides — it charges and discharges symmetrically regardless of which terminal is at higher potential at any given moment.

The Role of the Film Dielectric

Polypropylene is a non-polar polymer. Unlike aluminum oxide (used in electrolytic capacitors), polypropylene does not depend on the direction of the electric field to maintain its dielectric properties. The film works identically whether the electric field points from left to right or from right to left. This material property is what makes the CBB60 fully symmetric and non-polarized at the physical and chemical level.

The two electrodes in a CBB60 are chemically identical — both are aluminum metallization layers on polypropylene film. There is no oxide layer, no asymmetry, and no preferred direction. This is a fundamental difference from electrolytic capacitors, and it is the reason you will never find a "+" or "−" marking on a CBB60 capacitor body.

Reading the Markings on a CBB60 Capacitor

Since the CBB60 capacitor has no polarity markings, understanding what the printed labels do mean is still important for correct application. Here is a breakdown of the typical markings you will encounter:

Notice that none of these markings indicate positive or negative terminals — because there are none. The two wire leads on the capacitor are completely interchangeable for all practical purposes. Whether you connect the left lead or the right lead to the motor's starting winding makes no difference electrically.

What does matter critically is matching the capacitance value and voltage rating to the original specifications of your motor or appliance. Using a capacitor with the wrong capacitance — even by as little as 20% — can cause the motor to run inefficiently, overheat, or fail to start. Always replace a CBB60 with one of identical or very close capacitance and equal or higher voltage rating.

How to Connect a CBB60 Capacitor Correctly

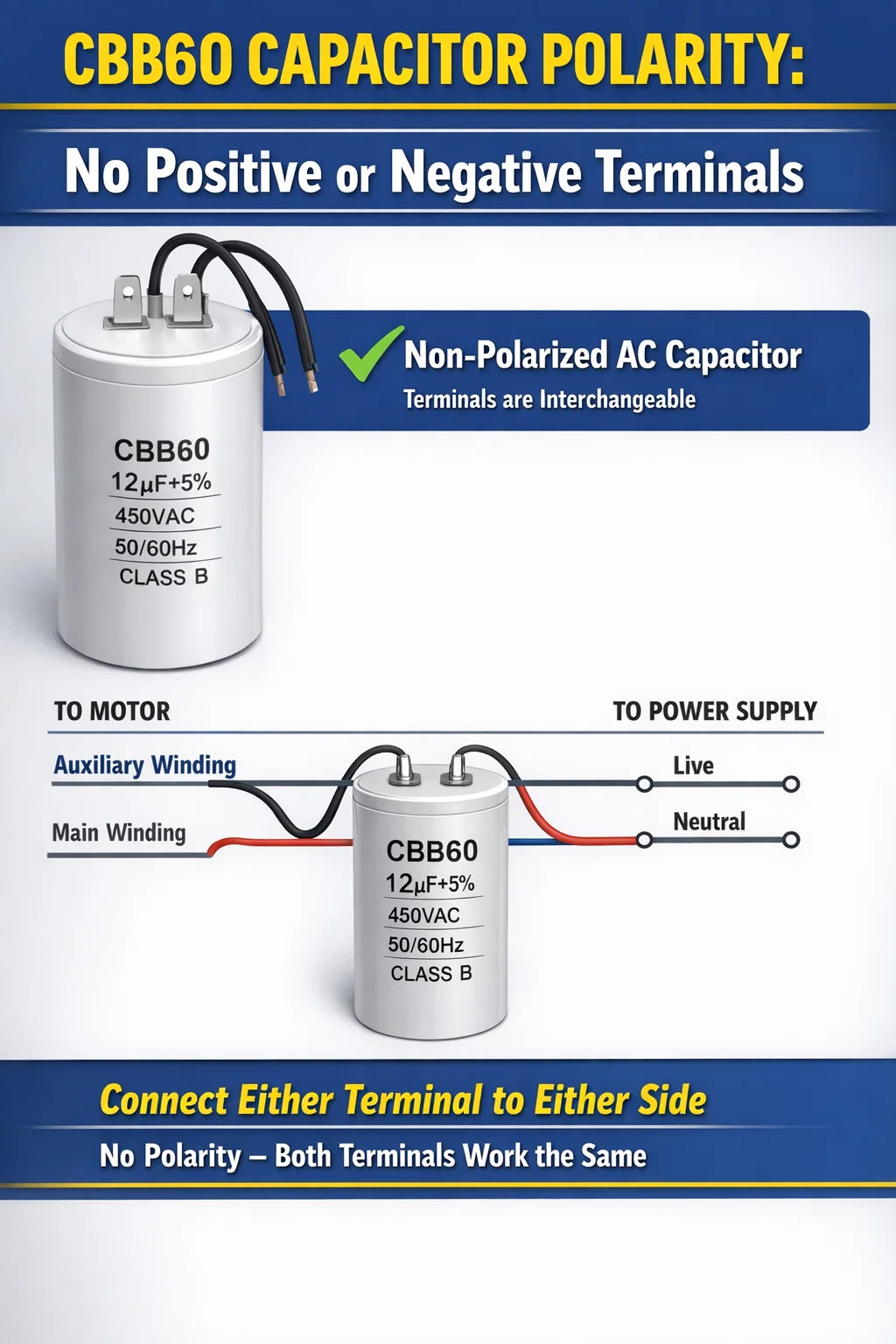

Since polarity is not a concern, the wiring of a CBB60 capacitor focuses entirely on connecting it to the right points in the motor circuit. Here is how it works in a typical single-phase induction motor application:

Basic Connection in a Single-Phase Motor

A standard single-phase induction motor has two sets of windings: a main winding and an auxiliary (starting) winding. The CBB60 capacitor is connected in series with the auxiliary winding. This creates a phase shift between the current in the two windings, producing a rotating magnetic field that allows the motor to start and run.

The typical wiring sequence is:

1. Connect one terminal of the CBB60 to the auxiliary winding terminal on the motor
2. Connect the other terminal of the CBB60 to the live (line) terminal of the power supply
3. The main winding connects directly across the power supply (live and neutral)
4. Both windings share the neutral connection

Because the two terminals of the CBB60 are interchangeable, it does not matter which terminal you attach to the winding and which you attach to the supply line. The circuit behavior is identical either way.

Four-Lead CBB60 Capacitors

Some CBB60 capacitors come with four leads instead of two. This does not mean they are polarized — it simply means the capacitor has two internal sections that can be connected in parallel (for full capacitance) or in series (for reduced capacitance and higher effective voltage rating). This configuration is sometimes used to allow flexibility in motor matching without stocking multiple capacitor values. In most replacement scenarios, you will connect the four leads as two pairs to achieve parallel operation and the full rated capacitance.

Always check the wiring diagram printed on the motor or in the service manual when dealing with four-lead capacitors. The configuration can affect motor performance significantly.

Safety Precautions When Wiring

Even though polarity is not a concern, safety absolutely is. Follow these precautions whenever working with CBB60 capacitors:

• Discharge the capacitor before handling — even after power is removed, a CBB60 can hold a dangerous charge for a significant period. Short the terminals briefly with an insulated resistor (around 10 kΩ, 10 W) before touching them
• Always disconnect power at the breaker before opening any motor housing or junction box
• Use insulated tools and wear rubber-soled footwear
• Confirm that the replacement capacitor's voltage rating matches or exceeds the original specification — never install an under-rated capacitor
• Inspect the wire insulation on the leads for any cracking or heat damage before making connections

Comparing CBB60 Capacitors to Polarized Electrolytic Capacitors

A common source of confusion is the difference between CBB60 film capacitors and electrolytic capacitors. Understanding the distinction clearly prevents costly mistakes when selecting replacements or diagnosing faults.

One practical implication of this table: never attempt to substitute an electrolytic capacitor for a CBB60 in a motor circuit. Even if you find an electrolytic capacitor with the same capacitance value, its inability to handle reverse polarity at AC frequencies will cause it to fail within seconds of operation. The failure can be explosive and dangerous.

How to Tell If a CBB60 Capacitor Has Failed

CBB60 capacitors degrade over time, particularly in high-temperature environments. When a CBB60 fails, the motor it serves typically shows clear symptoms. Knowing these symptoms allows you to diagnose the problem quickly rather than replacing the entire motor unnecessarily.

Common Symptoms of a Failed CBB60 Capacitor

• Motor hums but does not start — this is the most classic sign. The main winding energizes and creates a hum, but without the phase-shifted current from the capacitor, there is no rotating field and the motor stays stationary
• Motor starts if manually spun but cannot self-start — a partially degraded capacitor may still provide enough phase shift once the rotor is moving, but not enough to overcome initial inertia
• Motor runs slower than normal or draws more current than rated
• Motor overheats during normal load conditions
• Visible physical damage to the capacitor body — bulging, cracking, burn marks, or oil leakage from the case
• A burning smell coming from the motor housing

Testing a CBB60 Capacitor with a Multimeter

You can perform a basic check using a digital multimeter with a capacitance measurement function. After safely discharging the capacitor, connect the probes to the two terminals — because there is no polarity, it does not matter which probe touches which terminal. The meter should display a capacitance value close to the rated value printed on the body.

A healthy CBB60 will typically measure within ±10% of its rated capacitance. For example, a 20 µF capacitor should read between 18 µF and 22 µF. A reading significantly below the rated value — such as 8 µF on a 20 µF capacitor — indicates the dielectric has degraded and the capacitor should be replaced. A reading of zero or open circuit means the capacitor has failed completely.

Some simpler multimeters only have resistance measurement. In that case, a rough test is to set the meter to a high resistance range (such as 2 MΩ) and briefly touch the probes to the capacitor terminals. A working capacitor will show a momentary low reading as it charges from the meter's internal battery, then the reading will climb toward infinity as the capacitor holds the charge. If the meter reads zero (short circuit) or stays at maximum from the beginning (open circuit), the capacitor has failed.

When Visual Inspection Is Enough

In many cases, you do not need a meter at all. If the CBB60 capacitor body shows any of the following, replace it immediately without further testing:

• The cylindrical shell is swollen or bulging at any point
• There is a crack or split in the plastic casing
• There are scorch marks, melted areas, or darkening of the casing
• There is visible oily residue on or around the body (indicating dielectric oil has leaked)
• One or more of the wire leads has separated from the body or shows corrosion at the entry point

Selecting the Right Replacement CBB60 Capacitor

When buying a replacement CBB60 capacitor, three parameters matter above everything else: capacitance value, voltage rating, and terminal configuration. Getting any of these wrong can cause the motor to underperform, overheat, or fail again quickly.

Matching Capacitance Precisely

The capacitance value determines how much phase shift the capacitor introduces between the main and auxiliary windings. The motor manufacturer has calculated this value for optimal starting torque and running efficiency. Deviating significantly from this value — by more than about 10% — will cause measurable problems:

• Too low a capacitance: reduced starting torque, the motor may fail to start under load, higher running current, overheating
• Too high a capacitance: excessive current through the auxiliary winding, overheating of both winding and capacitor, reduced motor life

Always source a replacement with exactly the same capacitance rating as the original. If the original value is unclear because the label has been damaged, check the motor's nameplate or technical documentation for the specified capacitor value.

Voltage Rating: Match or Exceed

The voltage rating of the replacement must be equal to or higher than the original. If the original was rated at 250VAC, you can use a 250VAC or 450VAC replacement — but not a 150VAC capacitor. Installing an under-rated capacitor is a fire hazard and will lead to rapid failure. Using a higher-rated capacitor is perfectly safe and sometimes beneficial in demanding applications where voltage spikes are common.

Physical Size and Mounting

CBB60 capacitors come in standard cylindrical sizes, with the diameter and length depending on the capacitance and voltage rating. A higher capacitance or voltage rating generally means a larger body. When replacing in a tight motor housing, confirm that the physical dimensions of the replacement will fit the available space. The lead length and diameter should also be compatible with the existing wiring connections.

Quality and Certification Matters

The market for CBB60 capacitors includes products of highly variable quality. Substandard capacitors may have actual capacitance values far from the stated rating, lower breakdown voltages than marked, and significantly shorter service lives. When purchasing replacements, look for capacitors that carry recognized safety certifications such as CQC (China Quality Certification), TÜV, VDE, or UL. These certifications indicate that the capacitor has been independently tested and meets established safety and performance standards.

Practical Tips for Working With CBB60 Capacitors

Beyond the basic questions of polarity and replacement, there are several practical points worth knowing if you regularly work with motors, pumps, or appliances that use CBB60 capacitors.

Keep a Spare on Hand for Critical Equipment

For equipment like irrigation pumps, sump pumps, or air conditioning units where downtime causes significant problems, keeping a spare CBB60 capacitor of the correct rating is a practical investment. These capacitors are inexpensive — typically between $2 and $15 depending on capacitance and rating — and a failed capacitor is one of the most common reasons single-phase motors stop working. Having the right spare on the shelf means a 10-minute repair instead of a multi-day wait for parts delivery.

Temperature Affects Capacitor Life

Heat is the main enemy of CBB60 capacitors. Most are rated for operation up to 70°C, with some high-specification models rated to 85°C. Operating a capacitor continuously near its maximum temperature rating dramatically shortens its lifespan. For motors installed in poorly ventilated enclosures or in hot climates, consider using a capacitor rated for a higher temperature than the minimum required. Ensuring adequate ventilation around the motor housing also helps extend capacitor life significantly.

Moisture and Environmental Protection

In outdoor applications or humid environments — common for irrigation pumps and pool equipment — the wire leads of a CBB60 capacitor can corrode over time if exposed to moisture. The connections between the leads and the motor terminals are particularly vulnerable. When replacing a capacitor in such environments, use waterproof connectors or wrap connections with self-amalgamating tape to prevent moisture ingress. Inspect the connections at least once per season in high-humidity conditions.

Do Not Run a Motor Without Its Capacitor

Some technicians, when diagnosing a motor that will not start, temporarily disconnect the capacitor to check whether the motor windings are functional. While the motor may spin if manually started, running it this way — even briefly — can damage the auxiliary winding windings. Always have the correct capacitor in circuit before applying sustained power to the motor. Short diagnostic tests of a few seconds are generally tolerable, but do not run the motor unloaded and without a capacitor for any extended period.
