A CBB60 capacitor is a film-type AC motor run capacitor used primarily to start and run single-phase induction motors in water pumps, submersible pumps, washing machines, air compressors, and similar motor-driven appliances. It provides the phase shift needed to generate a rotating magnetic field inside the motor, enabling it to start under load and maintain smooth, efficient operation during continuous use. Unlike electrolytic start capacitors, the CBB60 is rated for permanent connection in the circuit and remains energized throughout the motor's operation cycle.
The "CBB" designation identifies it as a metallized polypropylene film capacitor — a Chinese standard classification. The "60" refers to the specific subcategory covering motor-run capacitors designed for AC applications. These components are widely produced to IEC 60252 and GB/T 3667 standards, and their reliability directly determines whether a pump or motor starts on the first attempt or fails prematurely.

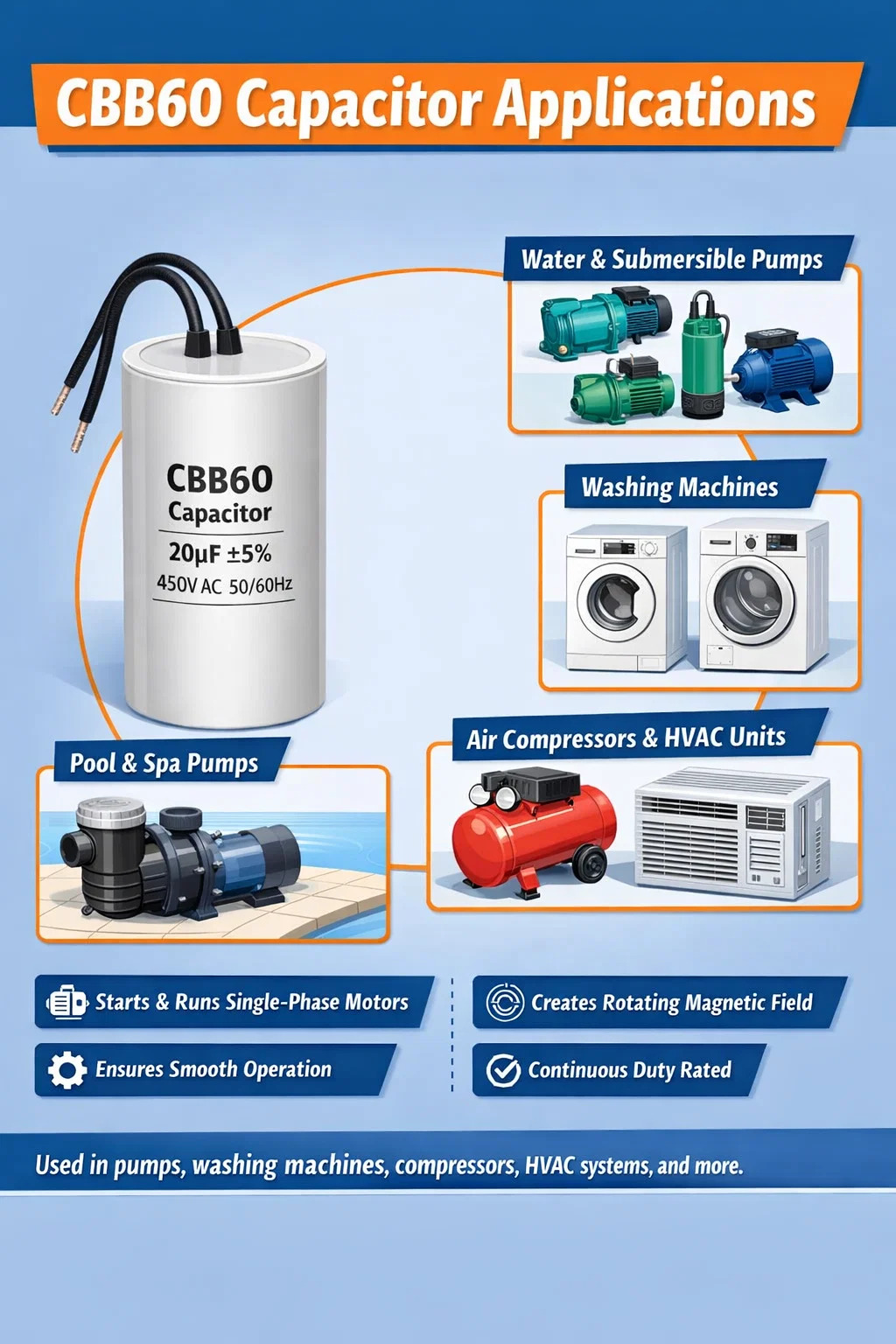

The CBB60 capacitor appears in a surprisingly wide range of equipment. While pump applications dominate the market, the component's ability to handle continuous AC voltage at rated frequency makes it suitable wherever a single-phase motor needs help creating a second phase.
This is the dominant use case globally. Residential water pumps ranging from 0.37 kW to 2.2 kW almost universally rely on a CBB60 run capacitor. Garden pumps, shallow-well jets, deep-well submersibles, and pressure booster pumps all need a capacitor to split the single-phase supply into two effective phases. Capacitance values for pump applications typically fall between 6 µF and 100 µF, with working voltages of 250 VAC or 450 VAC depending on the supply voltage and motor design.
A failed CBB60 in a pump circuit causes the motor to hum at startup but fail to rotate — it draws locked-rotor current (often 6–8 times the rated running current) without spinning, which can overheat and burn the winding within seconds if the thermal protection fails to trip in time.
Drum-type and top-loading washing machines use CBB60 capacitors on the main wash motor and often on the drain pump motor as well. Capacitance values here are typically 8 µF to 20 µF at 450 VAC. A washing machine that starts but fails to agitate or spin properly — despite the motor making a buzzing sound — is a classic symptom of a degraded CBB60 capacitor whose capacitance has dropped below the motor's minimum threshold.
Single-phase air compressors used in workshops and automotive service bays often require high-capacitance CBB60 units — values of 50 µF to 100 µF are common on 1.5 kW to 3 kW compressor motors. Some HVAC fan motors and small compressors in window air conditioning units also use CBB60-style run capacitors, though in North American markets the oval aluminum-can format is more prevalent while the cylindrical CBB60 shape dominates Asia and much of Europe.
Pool and spa circulation pumps, irrigation system pumps, grain processing motors, small lathes, and even some refrigeration compressors in commercial coolers make use of CBB60 capacitors. Any application running a permanent split-capacitor (PSC) or capacitor-start capacitor-run (CSCR) single-phase induction motor can potentially use a CBB60 in the run position.
Single-phase AC power by itself cannot create a rotating magnetic field in a motor stator — it only produces a pulsating field that makes the rotor vibrate but not spin. To solve this, motor designers use a run capacitor connected in series with a second (auxiliary) winding. The capacitor shifts the current phase in that winding by approximately 90 electrical degrees relative to the current in the main winding. This artificial two-phase supply creates the rotating magnetic field that produces torque and allows the motor to self-start and run continuously.
The CBB60 remains permanently in the circuit — unlike electrolytic start capacitors, which are switched out via a centrifugal switch or relay once the motor reaches about 75–80% of synchronous speed. This means the CBB60 must handle continuous AC voltage stress without significant capacitance drift. The metallized polypropylene film construction gives it this capability: polypropylene has extremely low dissipation factor (tan δ ≤ 0.001 at 1 kHz), meaning virtually no energy is wasted as heat inside the capacitor during operation.
An important self-healing property distinguishes metallized film capacitors from foil types. If a microscopic defect in the dielectric film causes a localized breakdown, the metal electrode vaporizes around the fault spot, isolating it rather than creating a short circuit. This mechanism allows CBB60 capacitors to survive occasional voltage spikes that would destroy a non-self-healing design.
Reading a CBB60 capacitor label correctly is essential for selecting the right replacement. The following table explains the common parameters and their typical ranges.
| Parameter | Typical Range | Significance |
|---|---|---|
| Capacitance | 2 µF – 100 µF | Determines phase shift strength; must match motor nameplate |
| Tolerance | ±5% (J) or ±10% (K) | Tighter tolerance = more consistent motor performance |
| AC Voltage Rating | 250 VAC / 450 VAC / 630 VAC | Must meet or exceed actual operating voltage; never underrate |
| Frequency | 50 Hz / 60 Hz | Affects reactive current; check motor nameplate frequency |
| Operating Temperature | –25°C to +85°C (standard); up to +105°C (premium) | Higher rating extends service life in hot enclosures |
| Dissipation Factor (tan δ) | ≤ 0.001 at 1 kHz | Indicates internal loss; lower is better for continuous use |
| Insulation Resistance | ≥ 3000 MΩ (or ≥ 100 MΩ·µF) | Safety and leakage current performance indicator |
The AC voltage rating is the parameter most often misunderstood. A 250 VAC rated CBB60 is suitable for motors supplied from 220–240 VAC mains, but the rating must account for the fact that the capacitor voltage in a running PSC motor can be higher than the supply voltage. In some high-slip motor designs, the capacitor terminal voltage reaches 1.1 to 1.5 times the supply voltage. This is why pump capacitors in 230 VAC markets are frequently specified at 450 VAC — providing a substantial safety margin and dramatically extending service life. Using a 250 VAC capacitor where 450 VAC is specified drastically shortens lifespan through accelerated dielectric aging.
Always replace with the same capacitance value as specified on the motor nameplate or in the service manual. An undervalue reduces starting torque and can prevent the motor from starting under load. An overvalue shifts the current phase too far, unbalancing the winding currents, increasing heat, and potentially causing the auxiliary winding to overheat. Deviations beyond ±10% of the rated value are generally considered outside acceptable limits for run capacitor substitution.
The CBB60 has a distinctive cylindrical shape with a white or gray plastic case, typically made from flame-retardant polypropylene housing. The internal winding consists of two metallized polypropylene film layers wound tightly together. Metal end caps are sprayed (Schoopage process) onto the ends of the wound element to make contact with the metallized film layers, and leads or wire terminals are attached to these end caps.
The wound element is encapsulated in epoxy resin before being inserted into the plastic case. This resin fill serves multiple purposes: it prevents moisture ingress, damps vibration, improves heat transfer from the element to the case, and holds the winding mechanically stable during motor vibration.
Terminal configurations vary by market and application:
Physical dimensions are not standardized across manufacturers. A 20 µF / 450 VAC CBB60 might have a body diameter of 35 mm and height of 60 mm from one manufacturer and 40 mm × 70 mm from another. When ordering replacements, always verify that the physical dimensions fit the existing motor bracket or mounting clip.
Understanding where the CBB60 fits relative to other common motor capacitor types helps in selecting the right component and diagnosing motor problems accurately.
| Type | Dielectric | Use in Circuit | Typical Capacitance | Voltage Rating |
|---|---|---|---|---|
| CBB60 | Metallized polypropylene film | Run (permanent) | 2–100 µF | 250–630 VAC |
| CBB61 | Metallized polypropylene film | Run (fan/AC motors) | 1–30 µF | 250–450 VAC |
| CBB65 | Metallized polypropylene film | Run (HVAC compressors) | 5–60 µF | 370–450 VAC |
| CD60 (Electrolytic) | Aluminum oxide electrolytic | Start only (switched out) | 50–1500 µF | 110–330 VAC |
The CBB61 looks physically similar to the CBB60 — both use cylindrical plastic housings — but the CBB61 is engineered for fan and air conditioning indoor unit motors that have lower starting torque requirements. Substituting a CBB61 into a heavy-duty pump application can cause premature failure because the CBB61 case and terminals are not rated for the higher capacitance values and continuous current loads typical in pump service. The CBB60 cylindrical case is structurally more robust and typically IP44 or IP54 rated, making it suitable for humid pump rooms and outdoor enclosures.
Capacitor failure is one of the most common causes of motor malfunction, and CBB60 capacitors degrade in predictable ways. Recognizing the failure modes speeds up diagnosis and prevents unnecessary motor replacement.
Discharge the capacitor first by shorting its terminals through a 10 kΩ resistor for at least 5 seconds — never short them directly, as the brief current surge can damage the internal metallization. Then measure capacitance with a digital multimeter set to capacitance mode or a dedicated LCR meter. A reading within ±5% of the labeled value indicates the capacitor is healthy. Readings below 80% of rated capacitance or an open-circuit reading (shown as OL or overload on most meters) confirm the capacitor needs replacement.
Insulation resistance testing with a megohmmeter at 500 VDC is used in professional service environments to detect early-stage dielectric degradation before capacitance drift becomes severe. A healthy CBB60 should show insulation resistance well above 1000 MΩ; readings below 100 MΩ indicate the dielectric has absorbed moisture or is starting to fail.
Most CBB60 failures are not random — they result from specific operating or installation conditions that can be identified and corrected to extend service life. A well-specified and properly installed capacitor can last 10 to 20 years in continuous pump service. Poor-quality units or those exposed to adverse conditions may fail within 2–3 years.
The leading cause of premature failure. Grid voltage variations, switching surges, and capacitive voltage rise in the motor auxiliary winding all stress the dielectric. Each volt above the rated working voltage accelerates aging exponentially — a rule of thumb in film capacitor engineering is that every 10°C increase in temperature or every 10% overvoltage roughly halves service life. Specifying 450 VAC capacitors for 230 VAC pump applications rather than 250 VAC provides meaningful protection against surge events.
The capacitor's internal temperature combines ambient temperature with self-heating from its own dielectric losses and conducted heat from the motor. Capacitors mounted directly against the motor frame in poorly ventilated enclosures can experience junction temperatures 20–30°C above ambient. Keeping the capacitor away from heat sources, using a separate mounting bracket with airflow, or choosing a higher temperature class (85°C or 105°C rated) all reduce this risk.
Pump rooms and outdoor installations expose capacitors to high humidity. Polypropylene film has naturally low moisture absorption, but poor sealing of the case or terminal gland areas allows moisture to track along leads and into the body over time. Always verify the IP rating of the capacitor housing matches the installation environment. IP44 is the minimum for wet or damp locations; IP54 or IP55 is preferable for direct outdoor use or splash-prone installations.
Each motor start produces a brief inrush current spike through the capacitor. Applications with pressure switch control that cycle the pump on and off frequently — potentially dozens of times per hour — stress the capacitor more than those where the motor runs continuously. If start frequency exceeds the motor manufacturer's rated duty cycle, consider a capacitor with a higher surge current rating or reduce start frequency through pressure tank sizing.
The replacement process is straightforward if the right information is gathered first. Follow this sequence to avoid ordering errors.
When the original value is unknown and the motor nameplate has been lost, a rough estimate can be made from motor power rating. As a general rule, single-phase induction motors require approximately 7–8 µF per kilowatt of rated output for a run capacitor, though this varies significantly by motor design and pole count. This figure is only a starting estimate — proper values should always be confirmed with manufacturer data.
Film capacitors used in motor applications store significant energy. A 50 µF capacitor charged to 450 VAC peak (approximately 636 V peak) stores over 10 joules of energy — enough to cause a severe burn or cardiac arrest if discharged through the human body. Standard safety practices include:
No. A run capacitor that is too large causes excessive current in the auxiliary winding during normal running, leading to overheating and shortened motor life. If more starting torque is needed, the solution is to add a dedicated start capacitor (electrolytic type) in parallel with the run capacitor, switched out by a relay or centrifugal switch. Do not oversize the run c
