What is the lifespan of a CBB60 capacitor?

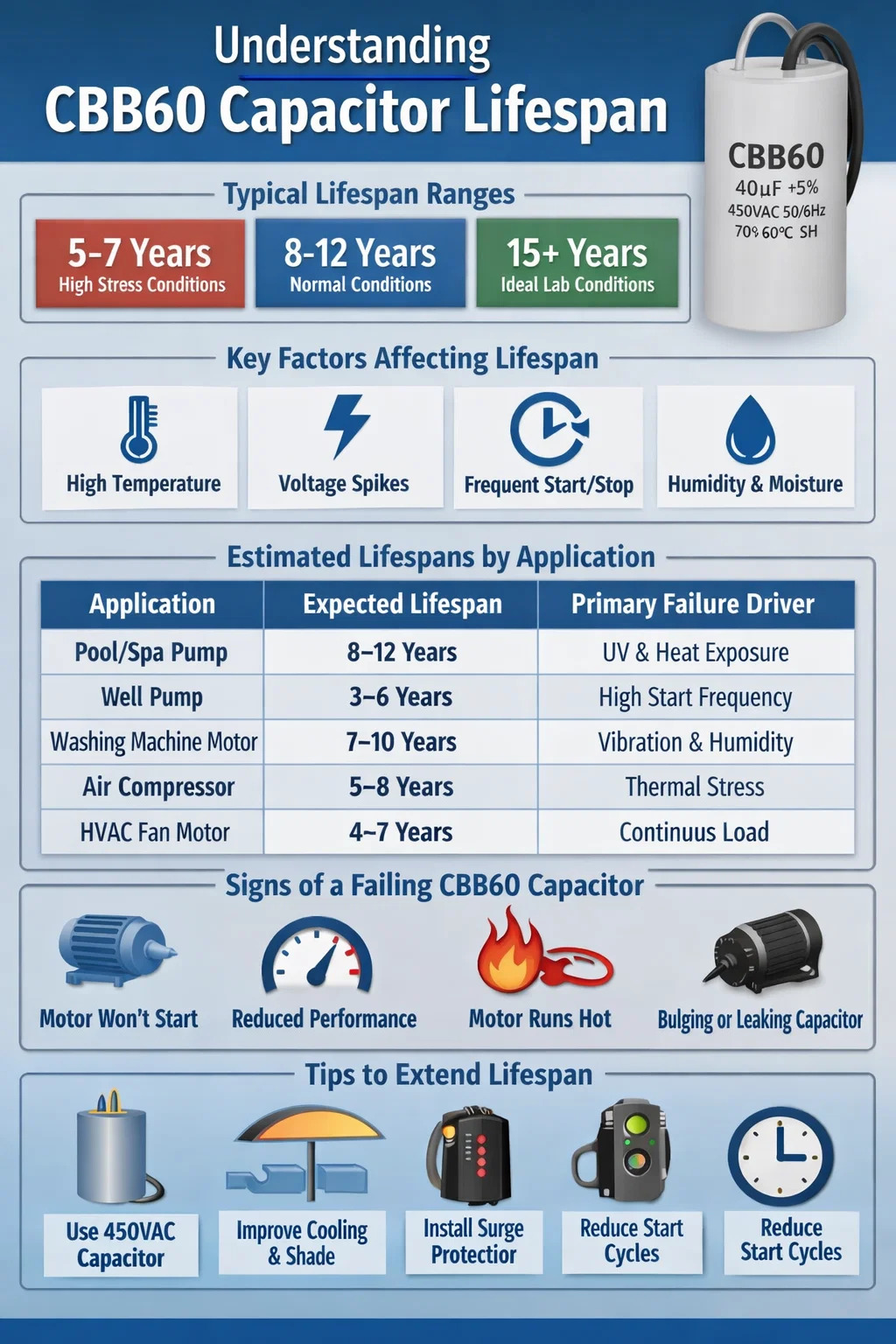

How Long Does a CBB60 Capacitor Last?

The lifespan of a CBB60 capacitor typically ranges from 8 to 12 years under normal operating conditions, though many units fail earlier — often within 5 to 7 years — when subjected to heat stress, voltage spikes, or continuous high-load cycling. In ideal laboratory conditions with controlled temperature and rated voltage, some CBB60 run capacitors have demonstrated operational life exceeding 15 years. However, real-world installation environments rarely meet these ideal parameters.

The CBB60 is a metalized polypropylene film capacitor, widely used in single-phase AC motors — particularly for water pumps, air compressors, washing machines, and pool pumps. Its role is to provide the phase shift needed to start and run the motor efficiently. Because it operates continuously under AC voltage, its degradation is gradual but inevitable.

Understanding the lifespan of a CBB60 capacitor is critical for maintenance scheduling, cost management, and preventing unexpected motor failures. A failed run capacitor doesn't just stop the motor — it can cause the motor windings to overheat and burn out, turning a $10 part replacement into a $200+ motor repair.

What Factors Determine CBB60 Capacitor Lifespan

No single factor controls how long a CBB60 run capacitor lasts. Lifespan is the cumulative result of thermal stress, voltage exposure, humidity, and usage patterns. Below are the most critical variables:

Operating Temperature

Temperature is the single most destructive force acting on a CBB60 capacitor. Most CBB60 capacitors are rated for a maximum operating temperature of 70°C, with some premium variants rated to 85°C or even 105°C. The Arrhenius rule of thumb in capacitor degradation states that for every 10°C rise in operating temperature, capacitor lifespan is approximately halved. A unit designed for 12 years at 40°C ambient may only last 6 years in a 50°C environment — and just 3 years at 60°C.

Outdoor pump applications in hot climates are particularly vulnerable. Capacitors mounted in direct sunlight or inside poorly ventilated motor housings can experience ambient temperatures 20–30°C above air temperature, dramatically compressing their useful life.

Rated Voltage vs. Actual Operating Voltage

CBB60 capacitors are commonly rated at 250VAC or 450VAC. Running a capacitor continuously at or near its rated voltage ceiling accelerates dielectric film degradation. Voltage transients — spikes caused by switching, lightning, or grid instability — can cause partial discharge events within the film layers, gradually eroding the dielectric material even without causing immediate failure.

Installing a 450VAC-rated CBB60 in a 230V system provides a significant voltage margin that meaningfully extends service life compared to using a 250VAC unit in the same application.

Duty Cycle and Start Frequency

A CBB60 capacitor used in a pump that starts and stops 50 times per day experiences far more stress than one in a motor running continuously for 8 hours. Each start cycle introduces an inrush current surge and thermal cycling. High-frequency start applications — like pressure-tank well pumps or swimming pool systems on timers — can exhaust a capacitor in 3 to 5 years, regardless of its rated lifespan.

Humidity and Environmental Exposure

Moisture ingress into the capacitor housing causes electrochemical corrosion of the internal film and lead connections. CBB60 capacitors used in wet environments — pool pump motors, irrigation systems, outdoor compressors — need proper IP-rated enclosures. Without adequate sealing, humidity can reduce lifespan by 30–50% compared to dry indoor installations.

Manufacturing Quality and Capacitance Tolerance

Not all CBB60 capacitors are manufactured to the same standard. Budget units from unverified suppliers often use thinner dielectric film, lower-purity polypropylene, and lower-grade end-spray metallization. These units may begin showing significant capacitance drift — the primary indicator of aging — within 2–3 years. Premium CBB60 capacitors with ±5% capacitance tolerance and UL/TÜV certification generally maintain stable performance much longer than uncertified alternatives with ±10% or wider tolerances.

CBB60 Capacitor Lifespan by Application Type

Different applications subject the CBB60 run capacitor to different stress profiles. The table below summarizes expected real-world lifespans across common use cases:

Signs That a CBB60 Capacitor Is Failing or Has Already Failed

Because a CBB60 run capacitor degrades gradually, early symptoms are easy to miss. By the time the motor refuses to start entirely, significant stress may have already been placed on the motor windings. Recognizing early warning signs allows for proactive replacement before secondary damage occurs.

Motor Struggles or Fails to Start

The most obvious symptom. A motor that hums loudly but doesn't spin, or one that starts only after several attempts, is almost always dealing with a weak or dead run capacitor. In pump applications, this often manifests as the pump making a buzzing sound with no water flow.

Reduced Motor Performance or Speed

A capacitor that has lost significant capacitance — say, dropped from a rated 25µF to 18µF — may still allow the motor to start but with reduced torque and efficiency. A pump may deliver noticeably less pressure or flow rate. An air compressor may take longer to reach operating pressure. These performance drops often get attributed to mechanical wear when the real cause is capacitor degradation.

Motor Runs Hot

A failing CBB60 capacitor forces the motor to draw higher current to compensate for reduced phase shift efficiency. This excess current manifests as elevated motor temperature. If a motor housing that normally runs warm to the touch has become too hot to hold, check the capacitor before assuming the motor bearings or windings are at fault.

Physical Damage Visible on the Capacitor

Inspect the capacitor directly. Key visual indicators of failure include:

• Bulging or deformed plastic casing
• Cracks or splits in the housing
• Discoloration or burn marks around terminals
• Oily residue or leakage (rare in film capacitors but possible in extreme failures)
• Corroded or loose terminal connections

Any of these physical signs indicate the capacitor should be replaced immediately, regardless of whether the motor is currently running.

Capacitance Measurement Out of Tolerance

The definitive test. Using a digital multimeter with capacitance function or a dedicated capacitor tester, measure the actual capacitance and compare it to the rated value printed on the label. A capacitor reading more than 10% below its rated value should be considered degraded and replaced. A reading more than 20% low almost certainly explains motor performance problems. For example, a 30µF CBB60 reading 22µF is well past its useful service life.

How to Test a CBB60 Run Capacitor Properly

Testing a CBB60 capacitor is straightforward with the right tools and safety precautions. The capacitor stores charge and must be safely discharged before handling.

Step-by-Step Testing Procedure

1. Disconnect power to the motor and wait at least 60 seconds.
2. Discharge the capacitor by briefly connecting a 20,000-ohm resistor across its terminals — never short-circuit it directly.
3. Remove the capacitor from the circuit by disconnecting its wires.
4. Set your multimeter to capacitance mode (µF).
5. Connect the meter probes to the capacitor terminals (polarity doesn't matter for AC film capacitors).
6. Read the measured value and compare to the rating printed on the capacitor label.
7. Replace if the measured value is more than 10% below the rated value.

For a 40µF CBB60, the acceptable range is typically 36µF to 44µF. A reading of 33µF signals degradation. A reading of 15µF indicates near-total capacitor failure.

Some HVAC technicians and motor specialists also test for equivalent series resistance (ESR), which increases as the dielectric film ages. High ESR even in a unit with acceptable capacitance can still cause performance problems — though this test requires a dedicated ESR meter rather than a standard multimeter.

How to Extend the Lifespan of a CBB60 Capacitor

Several straightforward practices can meaningfully extend the service life of a CBB60 capacitor, deferring replacement costs and reducing unplanned downtime.

Overrate the Voltage

For any 230V application, use a 450VAC-rated CBB60 rather than a 250VAC unit. The extra voltage headroom dramatically reduces dielectric stress. The cost difference is minimal — typically $1 to $3 — while the lifespan benefit can be measured in years.

Improve Thermal Management

Where possible, install the motor and capacitor in shaded, ventilated locations. Adding a simple shade cover over an outdoor pump motor can reduce ambient temperature by 10–15°C, which according to the Arrhenius relationship could double the capacitor's functional lifespan. Ensure motor enclosures have adequate airflow and are not packed with insulation material that traps heat.

Use a Surge Protector or Varistor

Installing a metal oxide varistor (MOV) or whole-circuit surge protector upstream of the motor protects the CBB60 from voltage transients. This is particularly important in areas with frequent thunderstorms or unstable grid power. A MOV clamps voltage spikes before they can stress the capacitor's dielectric film.

Reduce Unnecessary Start Cycles

For well pump systems, increasing the pressure tank volume reduces the number of daily start cycles. A properly sized pressure tank can cut daily starts from 80+ to fewer than 20, significantly extending capacitor life. For pool pumps, running longer single cycles rather than multiple short ones achieves the same benefit.

Schedule Proactive Replacement

Rather than waiting for failure, replace CBB60 capacitors on a preventive schedule. For high-duty-cycle applications, replacing every 5 years is prudent. For seasonal-use pumps, every 8–10 years. A CBB60 capacitor typically costs between $5 and $25 depending on capacitance and voltage rating — a fraction of the cost of a motor winding repair or full motor replacement caused by a failed capacitor.

Selecting a Replacement CBB60 Capacitor

When replacing a failed CBB60, matching the specifications correctly is critical. Using the wrong capacitance value — even slightly — affects motor starting torque and running efficiency. Using an undersized voltage rating risks premature failure of the new unit.

Key Specifications to Match

• Capacitance (µF): Must match exactly or stay within ±5–10% of the original value. Common CBB60 values range from 1µF to 100µF. Do not substitute a different value without consulting the motor manufacturer's specifications.
• Voltage rating (VAC): Must equal or exceed the original rating. Upgrading from 250VAC to 450VAC in a 230V system is acceptable and beneficial.
• Frequency: Confirm 50Hz or 60Hz compatibility depending on your grid frequency.
• Physical size: The replacement must physically fit the capacitor mounting bracket. CBB60 capacitors come in oval, round, and rectangular housings with varying dimensions.
• Temperature rating: For hot environments, select a unit rated to 85°C or 105°C rather than the standard 70°C.
• Certification: Look for UL, CE, or TÜV markings as minimum quality assurance indicators.

Avoid the temptation to purchase the cheapest available option. Unbranded CBB60 capacitors sold at extremely low prices often have capacitance values that drift outside tolerance within one to two years, restarting the failure cycle quickly. Investing in a quality unit from a recognized manufacturer — such as Vishay, Kemet, Epcos, or Shengye — provides better reliability and a genuine 8–12 year service life.

CBB60 vs. Other Run Capacitor Types: How Lifespan Compares

The CBB60 is a metalized polypropylene film capacitor. Understanding how it compares to other technologies helps contextualize its lifespan expectations.

The CBB60's polypropylene film construction gives it a significant lifespan advantage over traditional electrolytic or oil-filled paper capacitors. Its key feature — self-healing capability — means that minor dielectric breakdowns caused by voltage spikes are automatically repaired through localized vaporization of the thin metal layer, allowing the capacitor to continue operating after events that would permanently destroy other capacitor types.

Common CBB60 Capacitor Failure Modes Explained

Understanding how CBB60 capacitors fail helps predict end-of-life and distinguish between gradual degradation and sudden catastrophic failure.

Gradual Capacitance Loss

The most common failure mode. Over years of operation, the metalized polypropylene film undergoes slow electrochemical degradation. The metallization layer — typically aluminum or zinc — gradually oxidizes and recedes from the film edges inward, reducing the effective plate area and therefore the capacitance. This process accelerates with heat. A CBB60 that starts life at 25µF may drift to 22µF after 5 years and 18µF after 10 years in a hot environment.

Open Circuit Failure

When a CBB60 fails open, it provides zero capacitance. The motor receives no phase shift assistance and typically either refuses to start or starts very slowly with excessive humming. Open failures are often caused by fatigue fractures in the internal lead connections, terminal corrosion, or complete exhaustion of the self-healing reserve after too many voltage transients.

Short Circuit Failure

Less common but more dangerous. A shorted CBB60 creates a low-resistance path across the AC supply, drawing very high current that can trip circuit breakers, damage wiring, or destroy the motor start windings within seconds. Short circuit failures in film capacitors are most often caused by catastrophic overvoltage events — lightning strikes, severe power surges — that overwhelm the self-healing mechanism and punch permanent conductive paths through the dielectric film.

Thermal Runaway

A specific failure pathway where internal heat generation — caused by increasing ESR as the capacitor ages — further accelerates degradation, which in turn generates more heat. This positive feedback loop can cause rapid failure progression. It is most common in capacitors already operating near their temperature rating ceiling. Thermal runaway often produces the characteristic bulging or cracked housing seen on failed units.

Maintenance Schedule Recommendations for CBB60 Capacitors

Proactive maintenance of CBB60 run capacitors is straightforward and takes less than 15 minutes per inspection. The investment of time is far smaller than the cost and disruption of unexpected equipment failure.

Annual Inspection (All Applications)

• Visually inspect for physical damage, deformation, or discoloration
• Check terminal connections for corrosion or looseness
• Note any changes in motor starting behavior or performance
• Verify enclosure ventilation is unobstructed

Every 3 Years (High-Duty or Outdoor Applications)

• Measure capacitance with a multimeter and record the value
• Compare against rated value — replace if more than 10% below spec
• Track the trend: a unit that was 24µF (rated 25µF) three years ago and is now 21µF is degrading faster than expected

Preventive Replacement Timeline

• Well pumps and high-cycle applications: replace every 4–5 years
• Pool pumps and seasonal equipment: replace every 7–8 years
• Low-use indoor applications: replace every 10 years or at first sign of drift
• Commercial HVAC systems: align replacement with compressor or motor overhaul schedules

Keeping a log of capacitor installation dates and measured capacitance values over time is an effective practice for facilities managers overseeing multiple pump or motor systems. Pattern recognition across a fleet of equipment quickly reveals which installation environments are hardest on capacitors, allowing targeted improvements to cooling or protection.
