Which Home Appliances Use a CBB60 Capacitor? Full Guide

Which Home Appliances Commonly Use CBB60?

The direct answer: the CBB60 capacitor is most commonly found in single-phase AC motors used in water pumps, air conditioners, washing machines, pool pumps, and compressors. These are all motor-driven appliances that require a run capacitor to maintain efficient, continuous operation. The CBB60 — also known as a motor run capacitor or AC film capacitor — is specifically engineered for exactly these high-duty-cycle, continuous-run motor circuits. If you've ever replaced a water pump motor or had an HVAC technician service your air conditioner, there's a strong chance a CBB60 capacitor was involved.

Unlike general-purpose electrolytic capacitors, the CBB60 uses a polypropylene film dielectric that allows it to handle AC voltages continuously — typically rated at 250VAC or 450VAC — without degrading quickly. Its capacitance usually ranges from 1µF to 100µF, making it suitable for a wide range of motor sizes found in household and light commercial equipment. Understanding exactly which appliances rely on this component helps homeowners and technicians diagnose failures faster and source the right replacement.

Water Pumps: The Most Common Application for CBB60 Capacitors

Water pumps — whether for domestic water supply, garden irrigation, or pool circulation — are the single largest application segment for the CBB60 capacitor. Single-phase induction motors in these pumps cannot self-start without a phase-shifting capacitor. The CBB60 creates the necessary phase difference between the start and run windings, allowing the motor to develop starting torque and maintain a stable rotating magnetic field during continuous operation.

For a typical domestic water pump rated at 370W to 750W, the associated CBB60 capacitor will usually have a capacitance of 8µF to 20µF at 450VAC. Larger pumps — such as those used in swimming pool filtration systems rated at 1HP to 2HP — may require capacitors in the 25µF to 50µF range. Using an undersized capacitor causes the motor to overheat and draw excessive current; an oversized one leads to instability and reduced efficiency.

Signs of a Failed CBB60 in a Water Pump

• Pump motor hums but fails to start or start is sluggish
• Motor trips the thermal overload protector shortly after starting
• Visible bulging, cracking, or leakage on the capacitor body
• Measured capacitance more than 5% below the rated value
• Motor runs but at noticeably reduced speed or output pressure

Pool pump capacitors in particular are subject to extreme environmental stress — outdoor heat, UV exposure, and humidity — which shortens the lifespan significantly compared to indoor appliance capacitors. In hot climates, a pool pump CBB60 capacitor may need replacement every 3 to 5 years, even under normal operation.

Air Conditioners and HVAC Systems

Air conditioners are arguably the most high-profile application for CBB60-type capacitors in the home. Both the compressor motor and the outdoor condenser fan motor in a split-type air conditioner typically require run capacitors. In many units, a dual-run capacitor handles both functions in a single housing, but the electrical characteristics are identical to a standard CBB60 — polypropylene film, AC-rated, and designed for continuous duty.

For a 1-ton to 1.5-ton residential split air conditioner, the compressor run capacitor is typically rated at 35µF to 45µF at 370VAC or 440VAC. The fan motor capacitor in the same unit is usually smaller — around 5µF to 10µF. In window-type room air conditioners, a single CBB60 capacitor often serves the combined start/run function of a PSC (Permanent Split Capacitor) motor, with values commonly in the 2µF to 6µF range at 450VAC.

HVAC technicians report that capacitor failure is one of the leading causes of air conditioner service calls during summer months. Heat is the enemy of capacitors — every 10°C rise in operating temperature roughly halves the expected service life. In a poorly ventilated outdoor condenser unit, ambient temperatures can exceed 60°C to 70°C on hot days, which is well above the CBB60's standard temperature rating of 85°C or 105°C depending on the grade.

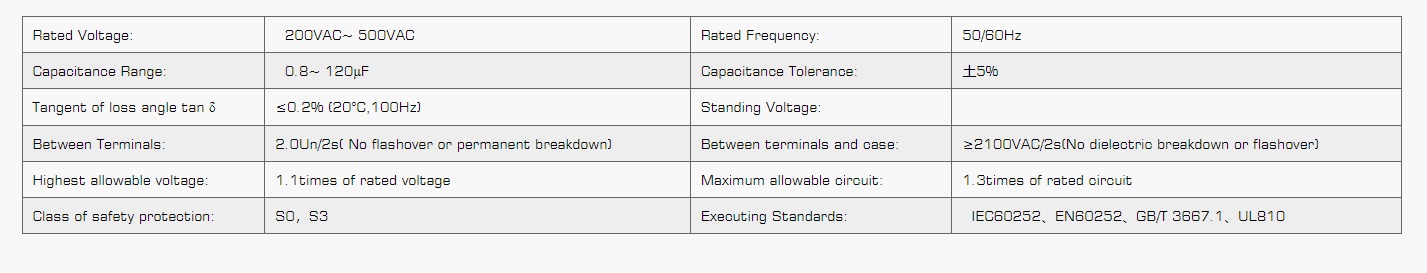

Typical CBB60 Capacitor Specs for Air Conditioning Equipment

Washing Machines and Tumble Dryers

Top-loading washing machines with single-phase induction motors — still the dominant design in many markets worldwide — rely on a CBB60 capacitor as an integral part of their motor circuit. The capacitor enables the motor to produce the torque needed for the heavy drum load during the wash and spin cycles. Without a functioning capacitor, the motor either fails to start entirely or operates at severely reduced torque, leading to incomplete spin cycles and wet laundry.

For a standard 5kg to 7kg capacity top-loading washer with a motor in the 180W to 370W range, the CBB60 capacitor will typically be rated at 6µF to 12µF at 450VAC. Larger commercial-grade top-loaders may use capacitors up to 20µF. In drum-type (front-loading) washers, the motor design varies — many modern front-loaders use universal motors or inverter-driven motors that do not require a run capacitor — but older front-loading designs and many budget models still incorporate single-phase induction motors paired with a CBB60.

Tumble dryers with electric resistance heating and a blower motor also commonly use CBB60 capacitors on the drum motor and blower fan motor circuits. In a typical vented electric tumble dryer, you might find two separate CBB60 capacitors: one for the drum motor (usually 3µF to 8µF) and one for the blower motor (often 2µF to 5µF).

Why Washing Machine Capacitors Fail Early

Washing machine motors experience some of the most demanding electrical stress of any home appliance capacitor. Every wash cycle involves multiple starts under load, voltage spikes from inrush current, and in the spin phase, sustained high-torque operation. Capacitors in this application are exposed to vibration from the machine itself, which can weaken internal connections over time. In practice, a washing machine CBB60 capacitor may last anywhere from 5 to 12 years, depending on usage frequency and power quality in the local grid.

Refrigerators and Freezers With Compressor Start Circuits

While many modern refrigerators use PTC (Positive Temperature Coefficient) starters rather than run capacitors, a significant portion of older refrigerators, large chest freezers, and commercial refrigeration units continue to use capacitor-start or capacitor-run compressor motors. In these designs, a CBB60 capacitor — or a CBB61 flat version of the same technology — is used either as a permanent run capacitor or in combination with an electrolytic start capacitor.

Large chest freezers (200 liters and above) are particularly likely to use a run capacitor, as their higher-powered compressors benefit from the efficiency improvement a run capacitor provides. Typical values for refrigerator or freezer run capacitors range from 3µF to 15µF at 250VAC. The lower voltage rating (250VAC vs the 450VAC common in pump applications) is appropriate because refrigerator compressor motors operate at lower voltages with respect to the capacitor.

It's important not to confuse the cbb60 capacitor with the electrolytic start capacitor sometimes found in refrigerators. The CBB60 is a film-type capacitor intended for continuous duty — it remains in circuit during normal operation. An electrolytic start capacitor, by contrast, is only in circuit for a fraction of a second during motor starting and must be disconnected by a relay or PTC device once the motor reaches speed.

Ventilation Fans, Exhaust Fans, and Ceiling Fans

Ceiling fans, industrial exhaust fans, attic ventilation fans, and range hood fans all typically use single-phase induction motors with a permanent split capacitor (PSC) configuration — and the CBB60 capacitor (or its close variant, the CBB61) is the component that makes this configuration work. In PSC motors, the capacitor is permanently connected to the auxiliary winding, creating the phase shift that produces starting torque and maintains running efficiency.

For a standard ceiling fan with a motor power of 50W to 75W, the run capacitor will typically be 2µF to 4µF at 250VAC. Larger industrial exhaust fans in the 100W to 370W range may use capacitors up to 8µF to 12µF. Speed-control in ceiling fans is often achieved by switching between different capacitor values — which is why some ceiling fan motor housings contain two or three capacitors of different values to provide low, medium, and high speed settings.

The CBB61 variant deserves a mention here as it is essentially the same polypropylene film capacitor technology as the CBB60, but packaged in a flat (rectangular) housing rather than the cylindrical form factor of the CBB60. The CBB61 is more commonly used in ceiling fans and smaller ventilation fans where mounting space dictates a flat profile. Both types share the same core electrical characteristics and the same failure modes.

Ceiling Fan Capacitor Values for Different Speed Settings

• High speed: typically uses the full capacitance value (e.g., 4µF)
• Medium speed: reduced capacitance via switching or tapped winding (e.g., 3µF or 2.5µF)
• Low speed: minimum capacitance (e.g., 1.5µF to 2µF)

When a ceiling fan runs only at one speed or stops responding to speed control, a degraded or shorted capacitor is among the first things to check. Capacitance drift of more than ±5% from the rated value is generally considered cause for replacement in fan applications.

Other Household and Light Commercial Applications

Beyond the major appliance categories above, the CBB60 capacitor appears in a surprisingly wide range of other motor-driven equipment found in and around the home. Each of these applications has its own typical capacitance range and voltage requirements, but all share the same fundamental need: a reliable, long-life AC film capacitor to support single-phase motor operation.

• Garage door openers: The chain-drive or screw-drive motor in a typical residential garage door opener (rated 350W to 750W) often uses a CBB60 run capacitor in the 5µF to 12µF range at 250VAC or 450VAC.
• Air compressors: Portable and stationary single-phase air compressors for home workshops typically use both a start capacitor (electrolytic) and a run capacitor (CBB60). The CBB60 run capacitor in a 1HP to 2HP compressor is commonly rated at 20µF to 40µF at 450VAC.
• Submersible pumps: Borehole pumps and submersible sump pumps use CBB60 capacitors rated for continuous immersion-adjacent duty, typically 10µF to 30µF at 450VAC, often with a higher temperature tolerance of 105°C.
• Dehumidifiers: The compressor and fan motor in a residential dehumidifier both use run capacitors; values depend on unit size but often range from 2µF to 8µF at 370VAC or 450VAC.
• Heat pumps: Similar to air conditioners in design, heat pump outdoor units use CBB60-equivalent run capacitors on both the compressor and fan motor.
• Water heater circulation pumps: Solar water heater systems and hydronic heating systems with small circulation pumps commonly use CBB60 capacitors rated at 4µF to 10µF at 250VAC.
• Grain dryers and agricultural fans: Large axial fans used in agriculture and grain handling often rely on CBB60 capacitors, sometimes in capacitor banks for high-power three-phase simulation circuits.

How to Identify and Verify a CBB60 Capacitor in an Appliance

When servicing any of the appliances listed above, identifying the correct cbb60 capacitor for replacement requires reading three key parameters from the existing component's label: capacitance (in µF), voltage rating (VAC), and sometimes the frequency rating (50Hz or 60Hz). These values must be matched exactly or within acceptable tolerances for safe, effective operation.

The voltage rating of the replacement capacitor must be equal to or greater than the original — never lower. Using a 250VAC capacitor where a 450VAC one is required is a safety hazard that can result in dielectric breakdown, capacitor failure, and fire. In practice, it is generally acceptable to use a 450VAC capacitor in a 250VAC application, as the higher voltage rating provides additional safety margin without affecting capacitance performance.

Capacitance tolerance for CBB60 replacement should stay within ±5% of the rated value for run capacitor applications. Going significantly above the rated capacitance causes the motor to draw excess current in the auxiliary winding; going significantly below reduces torque and starting reliability. For compressor and pump applications where motor efficiency is critical, staying within ±3% is preferable.

Step-by-Step Capacitor Verification Process

1. Disconnect the appliance from power and allow it to sit for at least 5 minutes before touching any capacitor — some capacitors retain a dangerous charge after power removal.
2. Discharge the capacitor safely using a discharge resistor (typically 10kΩ to 20kΩ, 5W) connected across the terminals before handling.
3. Read the existing capacitor's label for capacitance (µF), voltage (VAC), and temperature rating.
4. Use a digital multimeter with capacitance measurement function to measure the actual capacitance of the old capacitor; compare to the rated value.
5. If measured capacitance is more than 5% below rated value, or if the capacitor shows physical damage (bulging, cracking, leakage), replace it.
6. Select a replacement CBB60 capacitor with matching or higher voltage rating and capacitance within ±5% of the original.
7. Verify the physical dimensions (diameter and length for cylindrical CBB60) fit the mounting bracket or housing of the appliance.

CBB60 vs Other Capacitor Types: Why This Specific Component Is Used

A common question from both technicians and curious homeowners is: why specifically the CBB60 capacitor, and not an electrolytic capacitor or a ceramic capacitor? The answer lies in the fundamental electrical requirements of AC motor run circuits.

Electrolytic capacitors are polarized — they can only safely handle DC voltage, not AC. Connecting an electrolytic capacitor across an AC motor winding would rapidly destroy it and create a fire or explosion hazard. The CBB60's polypropylene film dielectric is non-polarized and handles AC voltage efficiently, with very low internal resistance (ESR) and minimal dielectric loss — characteristics that are critical for continuous AC operation.

Ceramic capacitors, while also non-polarized, are available only in very small capacitance values (picofarads to microfarads) and cannot achieve the 5µF to 100µF capacitance range needed for motor run applications in the physical sizes that are practical for appliance use.

The CBB60 capacitor also offers self-healing properties — one of the most important features for long-term reliability. When a minor dielectric breakdown occurs at a microscopic defect, the metallized electrode film in the CBB60 vaporizes locally, isolating the defect and restoring insulation. This prevents a minor defect from cascading into catastrophic failure. Most CBB60 capacitors are rated for a service life of 100,000 hours under standard operating conditions — far exceeding the electrolytic capacitors used in start circuits.

Comparison: CBB60 vs Other Capacitor Types for Motor Applications

What Happens When a CBB60 Capacitor Fails in a Home Appliance

Understanding the failure modes of a cbb60 capacitor helps in diagnosing appliance problems accurately before committing to more expensive repairs. The failure behavior varies depending on how the capacitor fails — open circuit, short circuit, or gradual capacitance loss.

Open Circuit Failure

When a CBB60 fails open (the internal connection breaks), the motor loses its run capacitor entirely. In a PSC motor (ceiling fans, window ACs), the motor will fail to start or start very slowly with reduced torque. In a capacitor-start/capacitor-run compressor motor, the running efficiency drops severely, causing overheating and thermal protection tripping. Open-circuit failures are the most common failure mode in aged CBB60 capacitors and are usually caused by internal connection fatigue from thermal cycling.

Short Circuit Failure

A shorted CBB60 capacitor is less common but more dangerous. It creates a direct low-impedance path across the motor winding, causing immediate overcurrent, blown fuses, or tripped circuit breakers. In severe cases, a short circuit in a capacitor can generate enough heat to cause the capacitor housing to crack or explode. This is why CBB60 capacitors for motor applications always include internal overpressure disconnect (OPD) mechanisms — a pressure-sensitive internal disc that disconnects the connection before catastrophic failure occurs.

Gradual Capacitance Loss

The most insidious failure mode is gradual capacitance loss due to dielectric degradation over time — often caused by prolonged exposure to elevated temperatures, high humidity, or overvoltage events. The appliance continues to work, but with reduced efficiency: a pump delivers lower flow rate, an air conditioner consumes more power for the same cooling output, or a washing machine takes longer to reach full spin speed. Many homeowners attribute these symptoms to general wear and tear rather than a degraded capacitor, leading to unnecessarily high electricity bills and premature motor wear.
