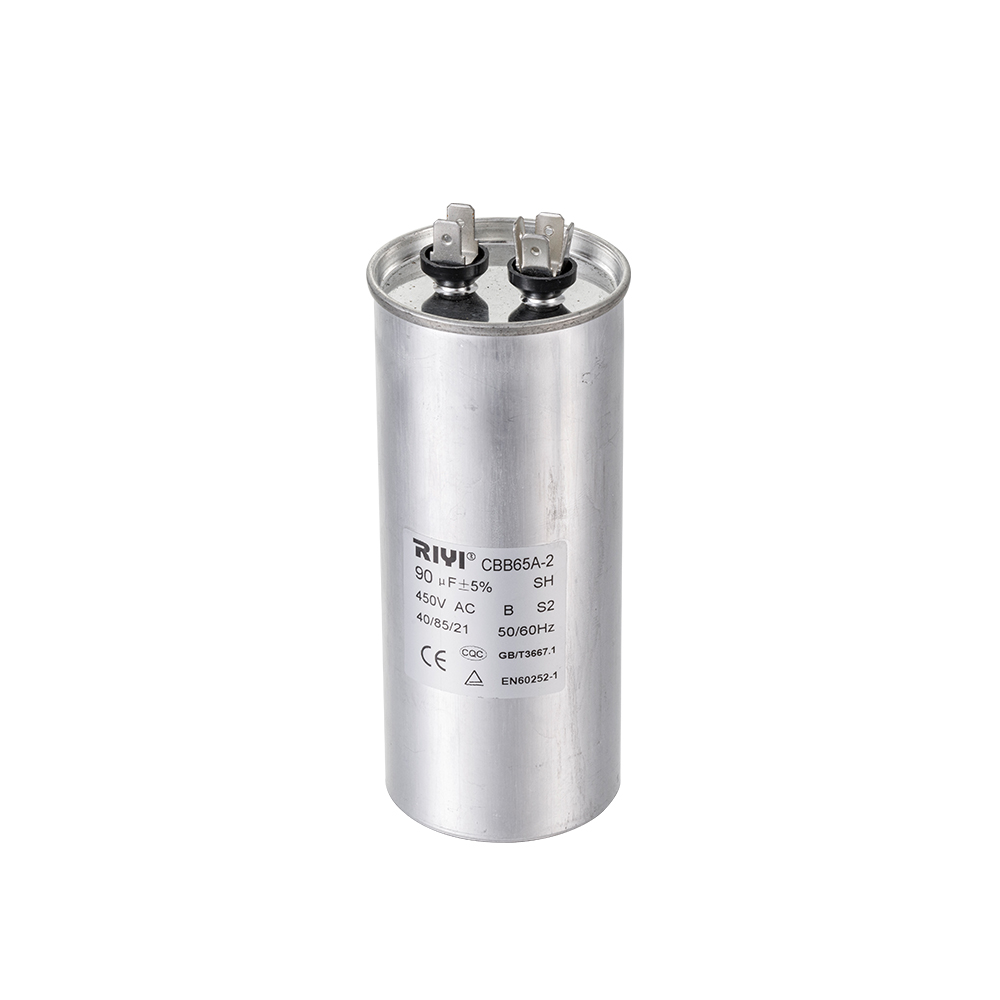

Cbb65 90uf 450v S2 B Explosion-Proof Aluminum Housing 2+4 terminal

The CBB65 90μF 450V AC operating capacitor is an indispensable power unit in modern motor drive systems. Its core function is to provide strong starting torque and stable operating current for compressors and high-power induction motors through large-capacity charge storage and phase shift.

Key Technological Highlights and Features:
Electrical Redundancy and Self-Healing Mechanism: The product utilizes a high-performance metallized dielectric material, possessing significant "self-healing" capabilities. When a local dielectric breakdown occurs, the metallized layer around the breakdown point rapidly evaporates, automatically insulating the fault point and maintaining the overall capacitance stability, ensuring that electrical performance does not degrade due to instantaneous overload.

S2 Level Physical Explosion-Proof Safety Architecture: Unlike ordinary structural designs, this model integrates a pressure-sensitive disconnect device within the aluminum shell sealing system. Under extreme abnormal conditions, the internal pressure triggers the deformation of the top cover, physically disconnecting the circuit connection and confining the failure risk within the metal casing, achieving an intrinsically safe level.

High-Efficiency Conversion and Thermal Management: Its extremely low dielectric loss tangent ensures very low heat generation during high-voltage conversion. Coupled with an optimized aluminum heat dissipation casing, the capacitor maintains high insulation resistance in high-temperature environments, effectively suppressing electromagnetic interference and extending the service life of the core winding.

Impact Resistance and Load Stability: Designed for the frequent starting characteristics of air conditioning compressors, large washing machines, and drying equipment, this model features enhanced surge current resistance. The high capacity of 90μF combined with a 450V voltage rating allows it to maintain constant output characteristics even during power grid fluctuations or heavy load starting.

2+4 Pin Standardized Interface Solution: The top features a 2+4 multi-terminal wiring arrangement, adapting to multi-circuit tapping requirements. This specification not only simplifies industrial installation processes but also ensures tight electrical connections and vibration resistance under long-term operation through a standardized terminal layout.
