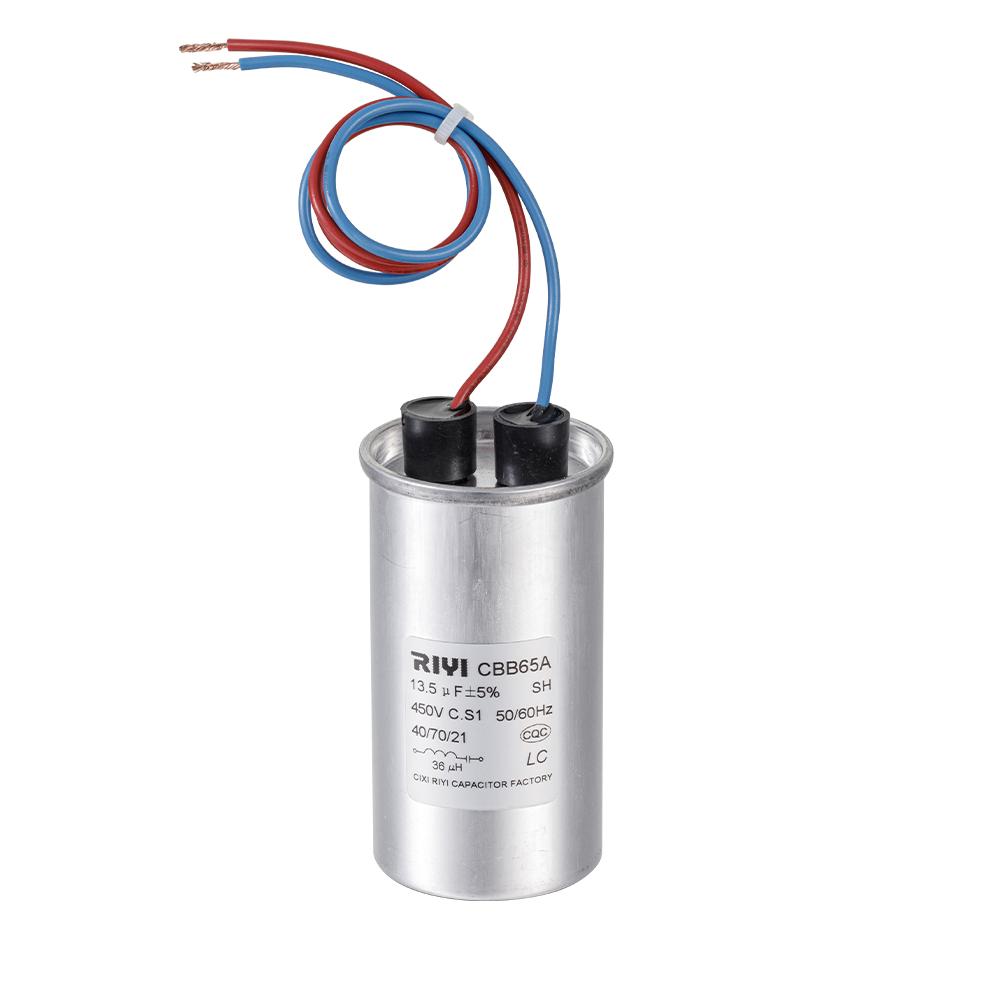

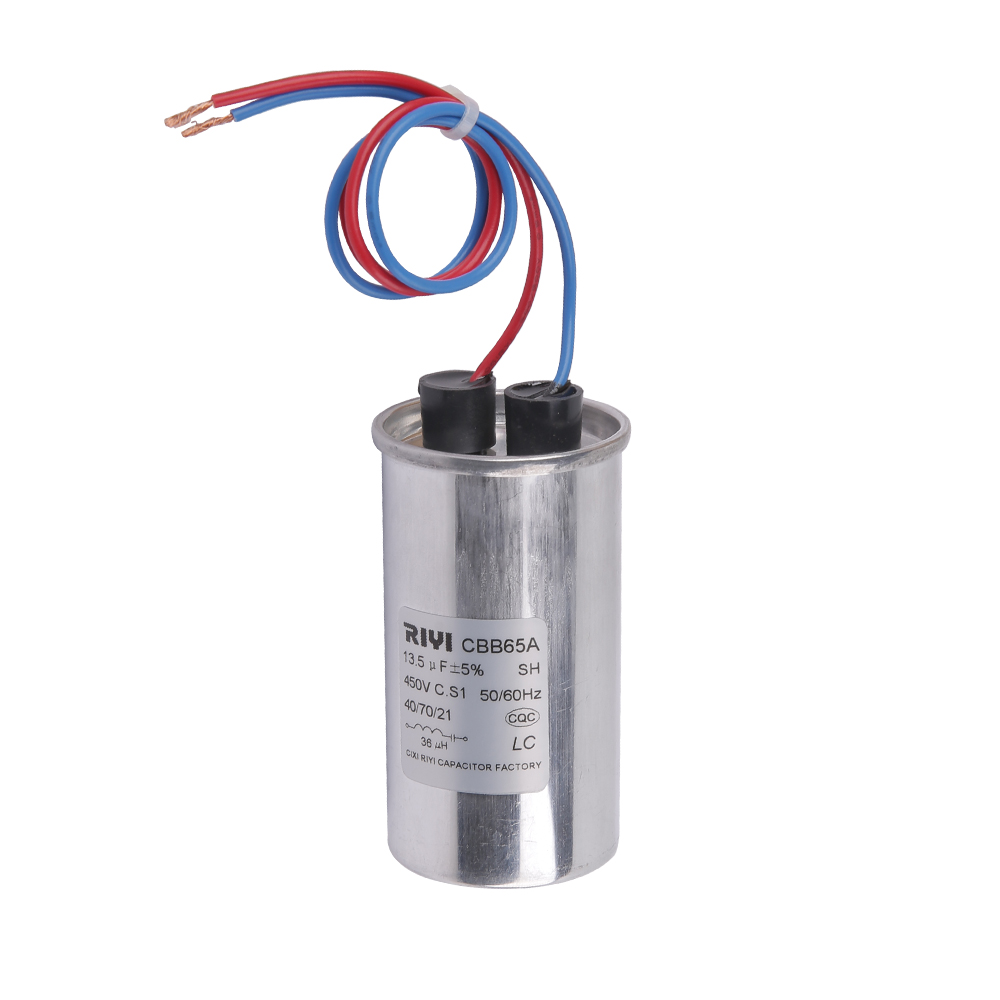

Cbb65 13.5uf 450v C With Inductance, Lead

The CBB65 13.5μF 450V capacitor with inductance and leads is a core power component specifically designed for AC motors. Essentially an energy buffer and phase conversion device, it provides precise capacitance in the circuit, helping air conditioner compressors or large motors obtain the necessary torque at startup and ensuring efficient and stable operation.

The following are the core technical characteristics and application logic of this capacitor:

Energy Storage and Electrical Specifications: This component has a rated capacitance of 13.5 microfarads (μF) and a voltage rating of 450V. This specification is typically used to match medium and small household appliance drive systems. The "inductance" design effectively filters high-frequency noise in the circuit, while the "lead" structure provides physical convenience for complex or compact internal wiring.

Durability and Self-Healing Mechanism:  It uses a high-performance metallized film as the dielectric, possessing excellent self-healing capabilities. When the dielectric experiences localized electrical breakdown, the metal layer around the breakdown point quickly evaporates, insulating the fault point and restoring capacitor performance. This feature, combined with its excellent surge current resistance, ensures system reliability during frequent switching.

Loss Control and Electrical Strength: It features a low loss tangent and high insulation resistance. This means that the capacitor itself generates very little heat during energy conversion, effectively extending the lifespan of the motor windings and maintaining consistent performance over time without significant capacitance degradation due to aging.

Explosion-Proof Safety Structure: The casing integrates a pressure-sensitive explosion-proof device. When the internal pressure increases due to overload or abnormal temperature rise, the safety valve quickly disconnects the internal connection, completely eliminating the risk of fire or explosion caused by overheating.

Scenario Adaptability: This capacitor primarily serves the starting and running of induction motors (Running Capacitor). It is an indispensable auxiliary component for the spin-drying motors of automatic washing machines, dryer drum drives, and air conditioner compressors, directly affecting the energy efficiency and quiet operation of these devices.
