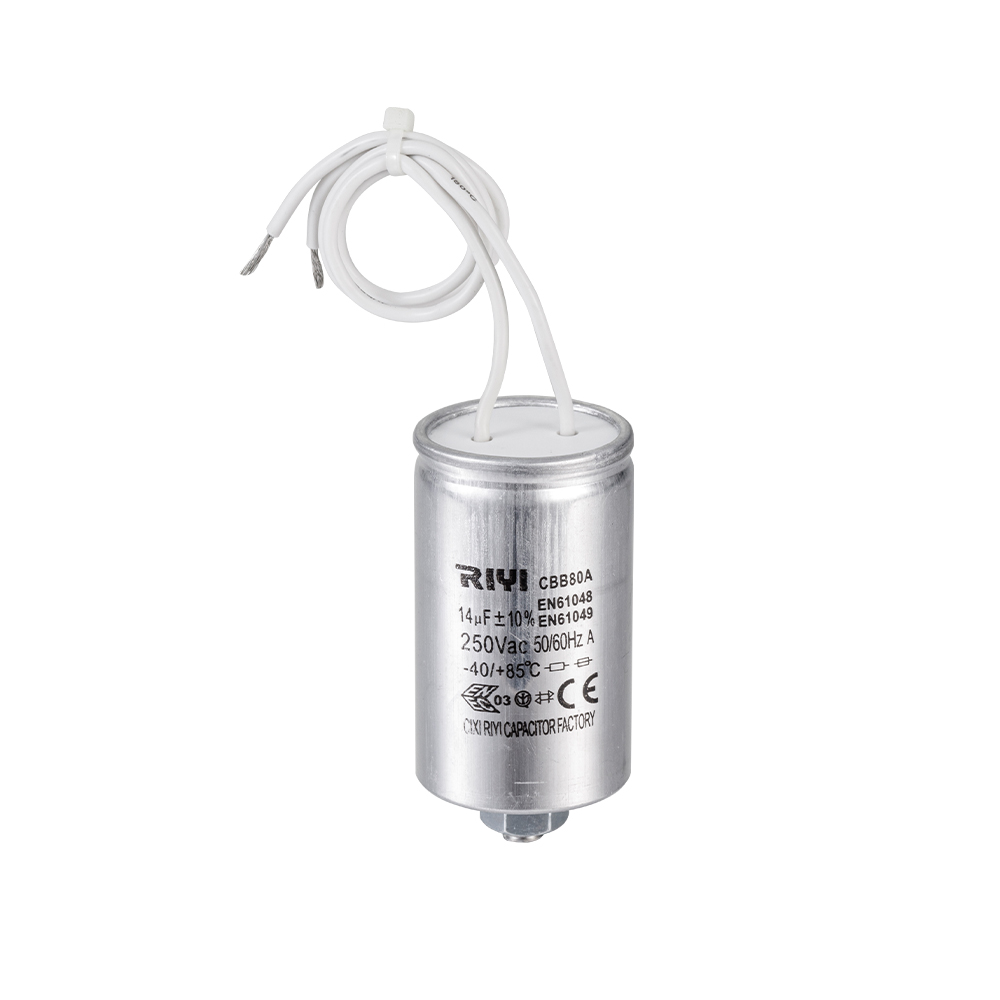

CBB80 Aluminum Shell, Vde Silicone Wire 85℃ With Screw, With Resistance, Electric Fuse

CBB80 Aluminum Shell, Vde Silicone Wire 85℃ With Screw, With Resistance, Electric Fuse

1.Features And Uses
It is made of high-quality German Chuangsipu high temperature resistant polypropylene film non-inductively wound. The outer shell is made of high temperature resistant plastic shell or aluminum shell oxidation and bright treatment. The internal structure is equipped with discharge resistance and fuse. With low loss,
High insulation resistance, good self-healing performance, current impact resistance, strong overload capability, etc. It is used in high and low pressure sodium lamps, mercury lamps, and metal halide lamps for power factor compensation.
2. Conditions of use
Altitude: The altitude of the safe operation area does not exceed 3000m.
Residual voltage when voltage is applied: should not exceed 10% of the rated voltage.
Pollution: There is no conductive dust, no corrosive gas, no flammable and explosive media in the installation and operation area.
Operating temperature: The operating range of capacitor temperature is -40℃~105℃.
Contact now
  • CBB80 Aluminum Shell, Vde Silicone Wire 85℃ With Screw, With Resistance, Electric Fuse
  • Product Details

Rated Voltage:

250VAC

Rated Frequency:

50/60Hz

Capacitance Range:

2~50μF

Capacitance Tolerance:

土5%

Tangent of loss angle tan δ

≤0.2%（20oC，100Hz）

Standing Voltage:



Between Terminals:

T-T=2.0Un/2s( No flashover or permanent breakdown)

Terminals to case:

T-C≥2100VAC/2s(No dielectric breakdown or flashover)

Highest allowable voltage:

1.1times of rated voltage

Maximum allowable circuit:

1.3times of rated circuit
Executing Standards:

IEC61048、IEC61049、EN61048、EN61049、UL810
