AC Cbb65 Insert Type Explosionproof Capacitor Provider

Home / Products / CBB65 Explosion-Proof Capacitor / Insert

AC Cbb65 Insert Type Explosionproof Capacitor Suppliers

Insert is the terminal-type group inside our CBB65 Explosion-Proof Capacitor range. Every model here keeps the CBB65 explosion-proof design, with an internal explosion-proof device for reliable safety performance, and comes in an explosion-proof aluminum housing with insert-type terminals.

Models Listed:
• Terminal layouts: 2+2, 4+4, 2+4 and 2+3+4, plus 1+1 terminal with screw.
• Capacitance values including 5uF, 10uF, 25uF, 30uF, 35uF, 40uF and 50uF, and dual values such as 20+4uF and 30+6uF.
• Rated voltages of 300V, 370V and 450V, with S2 listed in the model names; several models also carry a UL marking in the name.

Why Choose the Insert Type:
• Terminals suit equipment that was designed around a terminal layout instead of loose wires.
• It inherits the CBB65 strengths: low loss, high insulation resistance, good self-healing and strong overload capability.

Typical Applications:
• Air conditioner compressors.
• Large washing machines and other large household appliances.

Browse Also: CBB65 Lead for wire-lead versions of the same range. Cixi Riyi wholesales these capacitors and can develop custom versions from your drawings or samples.

CIXI RIYI CAPACITOR FACTORY
As China ac cbb65 insert type explosionproof capacitor suppliers and ac cbb65 insert type explosionproof capacitor factory, CIXI RIYI CAPACITOR FACTORY is a professional enterprise specializing in the production of AC motor capacitors, compensation capacitors for lighting fixtures, filters, and other products. The company is located on the south bank of Hangzhou Bay Bridge, where traffic is very convenient.
The company has 25,000 square meters of industrial plants and production for the workshop. Has strong technical force, advanced equipment, exquisite workmanship, and perfect detection means. It is market-oriented and based on the principle of meeting the customer's needs, while researching and producing a series of products. It had passed the ISO9001 quality management system and the ISO14001environmental management system certification, and all kinds of products have obtained certificates such as CQC, TUV, VDE, IMQ, UL, CE, etc.
Since its inception, the company has worked hard, strives for excellence, and with utmost dedication, it serves the electronics industry, power industry, household electrical appliance industry, and provides support services for high-tech enterprises. And as a result, we won the trust of our customers and became a well-known enterprise at home and abroad.
RIYI looks forward to working with your cooperation and creating a better tomorrow!
CERTIFICATE OF HONOR
  • <Honor
  • <Certificate
  • <Certificate
  • <Certificate
  • <Certificate
  • <Certificate
  • <Certificate
  • <Certificate
  • <Certificate
  • <Certificate
  • <Certificate
NEWS UPDATE
MESSAGE FEEDBACK
Industry knowledge

Cixi Riyi Capacitor Factory manufactures the insert-terminal group catalogued here as AC Cbb65 Insert Type Explosionproof Capacitor Suppliers — metallized polypropylene film run capacitors in explosion-proof aluminum housings, terminated with insert-type blade terminals instead of loose lead wires. We build them for appliances and commercial equipment whose wiring is designed around fixed terminal positions, where the part has to drop in with the correct terminal geometry, capacitance and voltage.

Every model in this group keeps the internal explosion-proof device sealed inside the aluminum can, and the film dielectric delivers low loss, high insulation resistance, self-healing behaviour and strong overload capability. We supply 300 V, 370 V and 450 V AC ratings, single sections from 5 µF to 120 µF, and dual sections such as 20+4 µF, 30+6 µF and 60+5 µF.

25,000 m²
Plant and workshops60,000 pcs
Daily output150+ staff
21 technical, 3 engineersISO9001 / ISO14001
CQC, TUV, VDE, IMQ, UL, CE

Insert Group at a Glance

Design aspect Our configuration
Termination Insert-type blade terminals fixed in the aluminum cover, layouts 2+2, 4+4, 2+4, 2+3+4, plus 1+1 terminal with screw
Housing Explosion-proof aluminum housing, cylindrical body with internal pressure-relief device
Dielectric Metallized polypropylene film, self-healing, low loss
Voltage ratings 300 V, 370 V and 450 V AC, S2 listed in the model names
Capacitance range 5 µF to 120 µF single sections; dual values including 20+4, 30+6 and 60+5 µF
UL-marked models Several ratings carry a UL marking in the model name
Sister group Wire-lead versions are listed under AC Cbb65 Wire Lead Explosionproof Capacitor Suppliers

Model Coverage: Capacitance, Voltage and Terminal Layout

Capacitance Rated voltage Terminal layout Marking
5 µF 370 V S2 2+2 UL
10 µF 450 V S2 B 4+4 —
10 µF 450 V S2 1+1 with screw —
20+4 µF 450 V S2 2+3+4 UL
25 µF / 30 µF 450 V S2 2+4 UL (30 µF)
30+6 µF 450 V S2 2+3+4 UL
35 µF 300 V S2 1+1 with screw —
35 µF / 40 µF / 50 µF 450 V S2 2+2 or 2+4 UL (50 µF)
55 µF / 60+5 µF / 65 µF 450 V S2 2+4, 2+3+4, 4+4 UL (60+5, 65 µF)

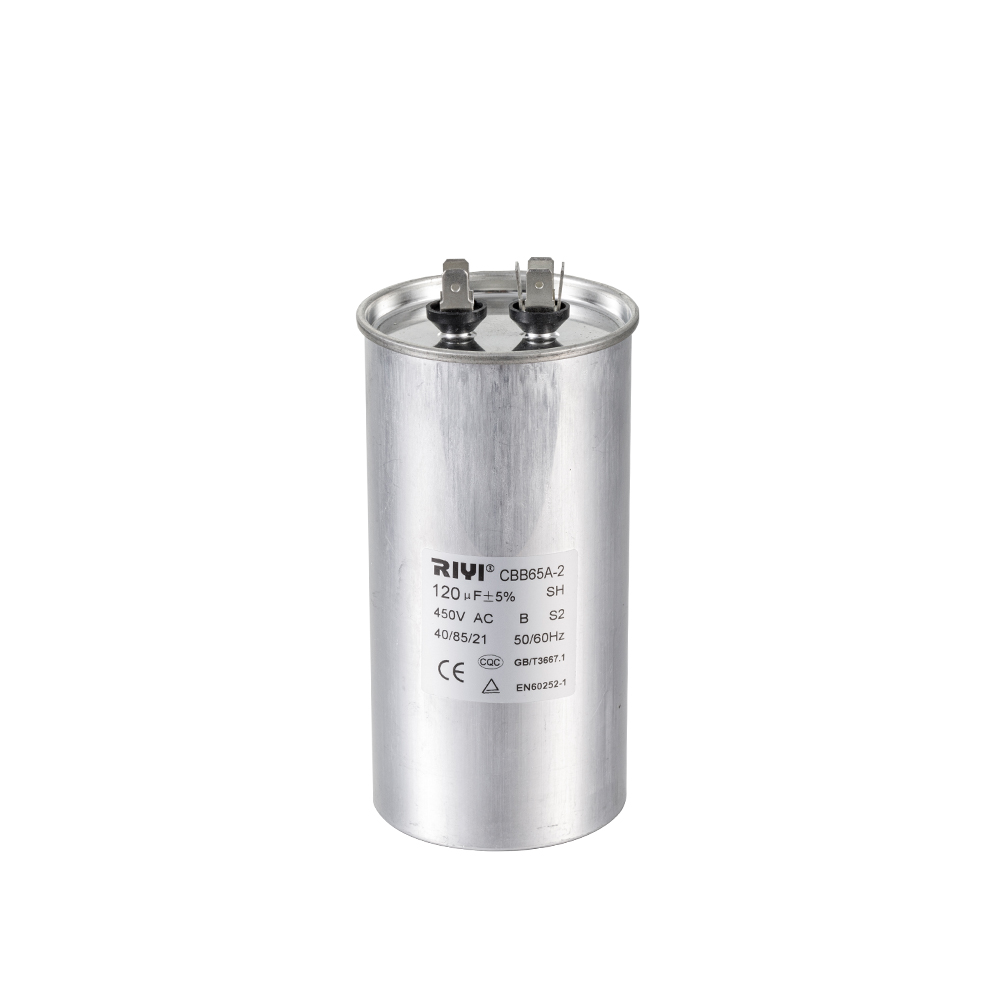

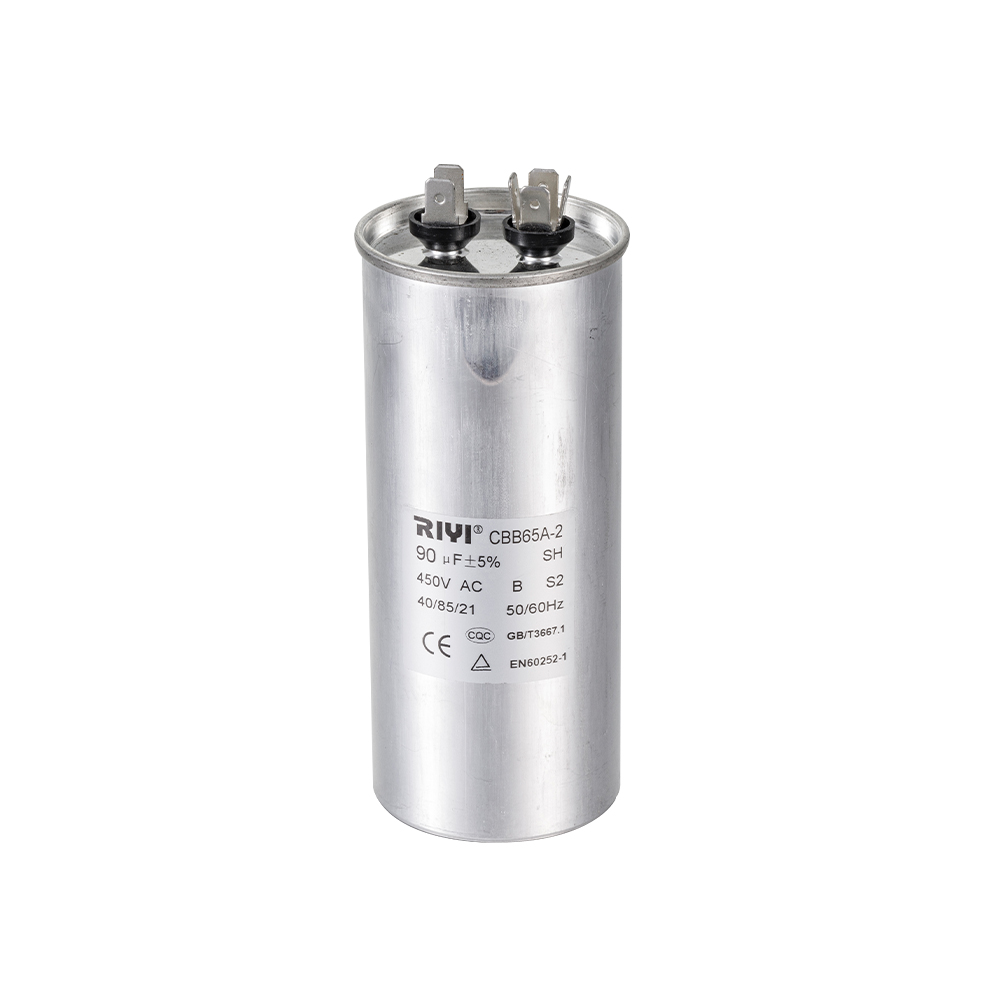

90 µF / 120 µF 450 V S2 B 2+4 —
45 µF ±5% 450 V SH 2+4 —

Reading the Specification

Capacitance spread across the insert group (single-section values shown against the largest listed rating).

  • 5 µF
  • 10 µF
  • 25 µF
  • 35 µF
  • 50 µF
  • 65 µF
  • 90 µF
  • 120 µF

Listed insert models by rated voltage.

450 V
16 models		 370 V
1 model		 300 V
1 model

Where the Insert Type Fits

Terminal capacitors suit production lines and service networks built around a fixed terminal block. The 450 V, 25 µF to 120 µF range covers air-conditioning compressor circuits, while 10 µF to 50 µF sections in 2+2 and 2+4 layouts serve large washing machines, dryers and comparable household appliances. For pumps, fans and other single-phase motor duties, our wider range of CBB60 AC motor run and start capacitor manufacturers configurations covers the same motor families with case and lead options.

  • Compressor circuits

    Dual-section ratings such as 20+4, 30+6 and 60+5 µF carry run and start duty in one can.

  • Large appliances

    Washing machines and dryers where the harness terminates into a fixed blade pattern.

  • Replacement programmes

    Common 450 V values matched to the terminal layout already in the equipment.

Explosion-Proof Construction and Quality Control

  1. Metallized polypropylene film is wound in-house; our workshop runs 11 automatic slitting machines and 15 imported automatic winding machines.
  2. The wound element is housed in an explosion-proof aluminum can whose internal safety device limits pressure rise under fault conditions.
  3. Insert terminals are seated and secured in the cover so the blade pattern stays true through assembly and installation.
  4. Electrical testing covers capacitance, insulation resistance and dielectric withstand before packing; detection equipment is calibrated as part of our ISO9001 system.
  5. Environmental management follows ISO14001, and our product certificates include CQC, TUV, VDE, IMQ, UL and CE across the range.
  6. Models designated UL in the model name are supplied against those listed ratings.

Capacity, Customization and Delivery Scope

As a China capacitor factory with 25,000 m² of plant, we hold a daily output of 60,000 pieces across the AC motor capacitor programme, supported by more than 150 employees and a technical team of 21, including 3 engineers. Bulk orders for insert-type CBB65 ratings are scheduled against confirmed capacitance, voltage, terminal layout and marking. We develop custom versions from customer drawings or samples — capacitance value, terminal arrangement, housing dimension and printed marking can all be fixed by drawing before tooling starts. Cargo leaves through Ningbo, with air freight available for urgent consignments; the full CBB65 family, including wire-lead versions, sits under our AC CBB65 Explosion-Proof Capacitor Manufacturers range.

Information We Use to Configure Your Solution

What we need Why it shapes the build
Capacitance and voltage Determines section count, can size and S2 rating
Terminal layout Fixes the cover tooling and blade positions
Equipment type and duty cycle Guides film thickness and thermal margin
Mounting and space envelope Confirms can diameter, height and clamp position
Marking and packaging Controls print content and carton quantities
Acceptance criteria Sets the test record issued with each batch

Questions We Answer Before Production

What defines the insert type against the wire-lead version?

The insert group is terminated with blade terminals set into the aluminum cover, so the capacitor plugs into an existing terminal block. The identical CBB65 construction is also available with lead wires for equipment wired by harness.

Which capacitance and voltage combinations can we order?

Single sections from 5 µF to 120 µF and dual sections including 20+4, 30+6 and 60+5 µF, at 300 V, 370 V or 450 V AC with S2 construction. Terminal layouts cover 2+2, 4+4, 2+4, 2+3+4 and 1+1 with screw.

Do you produce custom ratings?

Yes. We develop and produce from customer drawings or samples, fixing capacitance, terminal arrangement, housing dimension and marking before the production run.

How is quality documented for a project?

Manufacturing runs under ISO9001 and ISO14001, and our products hold CQC, TUV, VDE, IMQ, UL and CE certificates. For volume programmes we agree the acceptance criteria with the customer and issue the corresponding test record with each batch.

What capacity supports large orders?

Our workshop runs 11 automatic slitting machines and 15 automatic imported winding machines at a daily output of 60,000 pieces, so insert-type CBB65 volumes can be planned alongside the rest of the AC motor capacitor programme.
