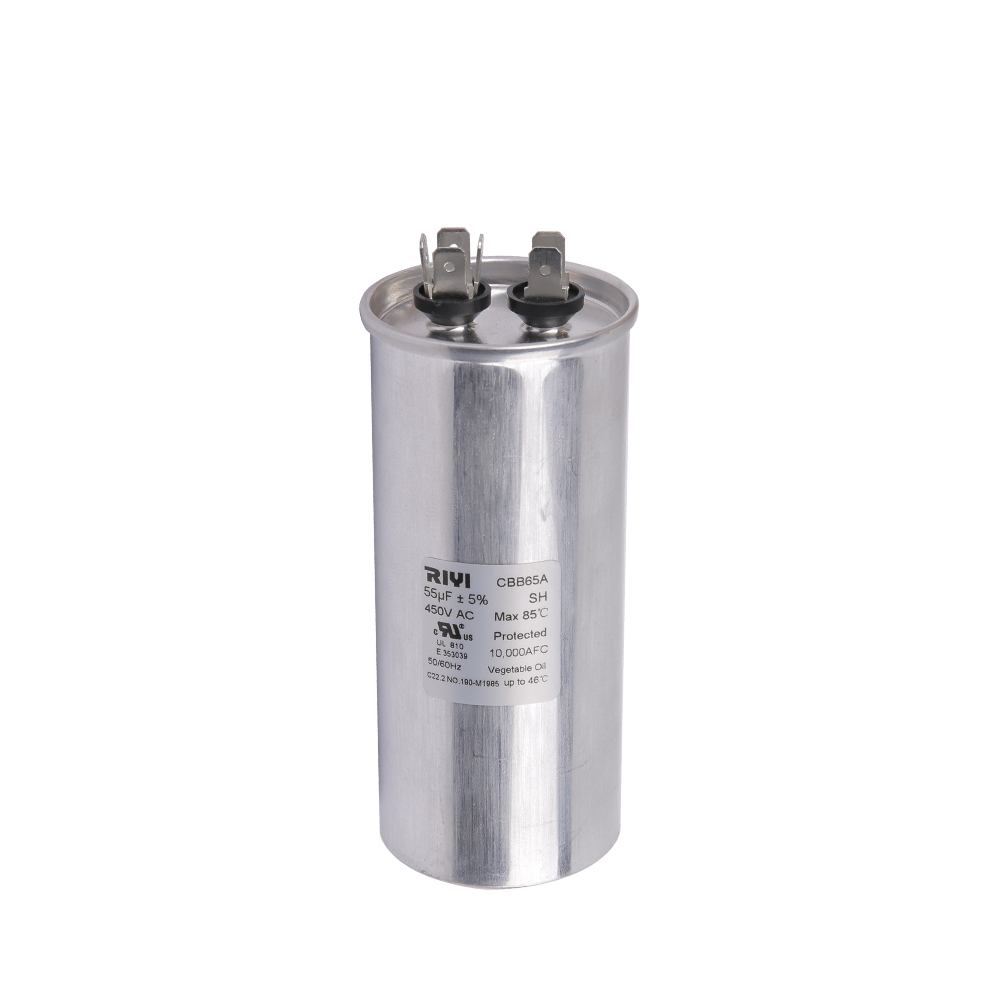

Cbb65 55uf 450v S2 Explosion-Proof Aluminum Housing 2+4 terminal

The CBB65 55µF 450V AC running capacitor is a core component in motor drive circuits. Through its aluminum casing and internal safety structure, it provides the necessary starting phase difference support and running compensation for household appliances (such as air conditioner compressors, automatic washing machines, dryers, etc.), ensuring the smooth operation of the power system.

High-Efficiency Conversion and Self-Healing Mechanism: The capacitor uses high-quality metallized film internally, effectively reducing energy loss during operation. Its self-healing property is particularly crucial: when a minor dielectric breakdown occurs, the damaged area automatically restores insulation, maintaining stable capacitance and extending overall lifespan.

Multiple Safety Protection Logic (S2 Level): The product features a built-in physical pressure explosion-proof device. In the event of extreme overload or abnormal conditions leading to increased internal pressure, the protective structure will actively cut off the power supply.  Combined with the robust aluminum alloy casing, this effectively prevents secondary risks caused by electrical faults.

Strong Impact Resistance:  This capacitor possesses extremely strong impact resistance and overload tolerance against the peak current generated during motor startup. Even in power grid environments with significant voltage fluctuations, it maintains high insulation resistance, ensuring that core parameters do not deviate.

2+4 Terminal Connection Flexibility: The unique plug-in terminal layout (2 terminals on one end, 4 on the other) simplifies the wiring process for complex circuits. This design not only improves installation efficiency but also provides ample wiring space for parallel connections or multi-channel signal feedback in different equipment models.

Environmental Adaptability and Heat Dissipation: The aluminum casing not only offers excellent oxidation and corrosion resistance but also assists in rapid heat dissipation of internal components. This allows the capacitor to maintain performance without degradation even in harsh operating environments with high temperature and humidity, reducing the frequency of equipment maintenance.

INQUIRE
PRODUCT DESCRIPTION CONTACT US
Product Parameters:

Rated Voltage:

200VA~500VAC

Rated Frequency:

50/60Hz

Capacitance Range:

5～120μF

Capacitance Tolerance:

±5%

Tangent of loss angle tan δ

≤0.2% (20°C,100Hz)

Standing Voltage:



Between Terminals:

2.0Un/2s( No flashover or permanent breakdown)

Terminals to case:

≥2100VAC/2s(No dielectric breakdown or flashover)

Highest allowable voltage:

1.1times of rated voltage

Maximum allowable circuit:

1.3times of rated circuit

Class of safety protection:

S2

Executing Standards:

IEC60252、EN60252、GB/T 3667.1、UL810
