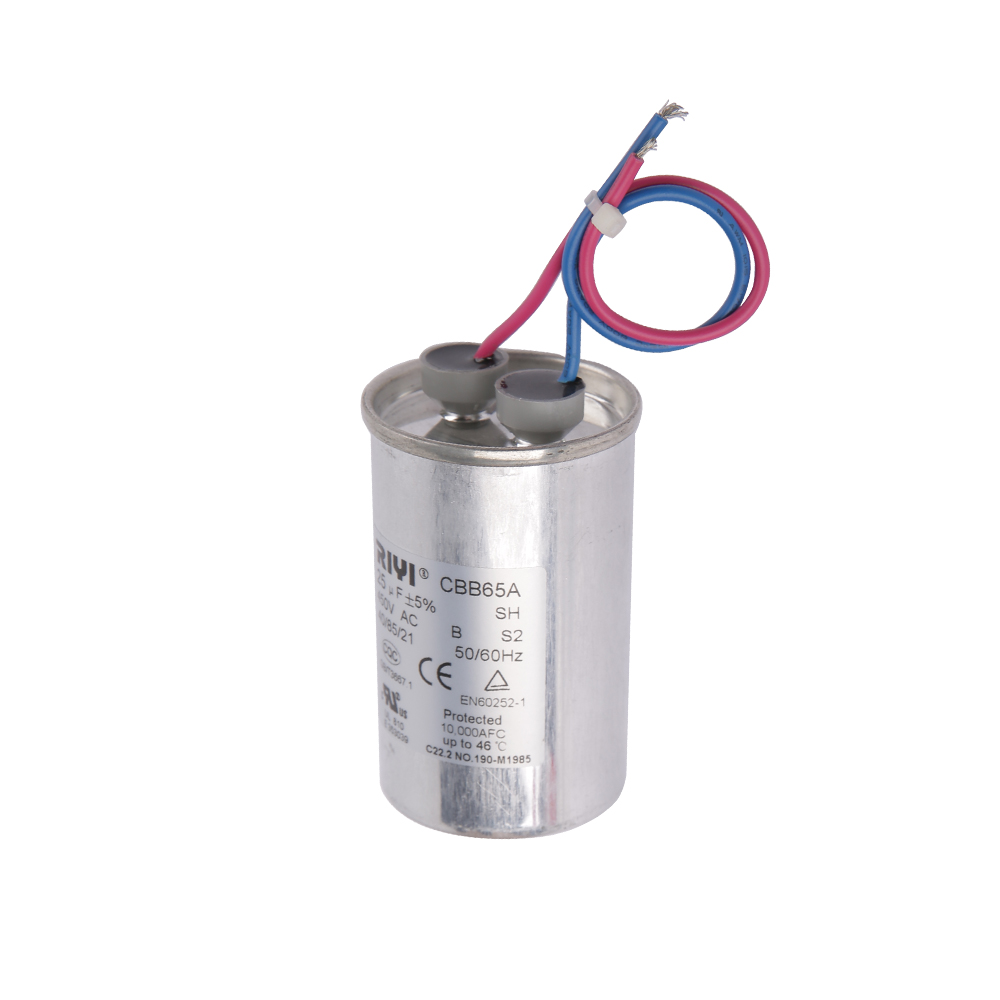

Cbb65 25uf 450v S2 B Explosion-Proof Lead

This CBB65 25μF 450V S2 B capacitor is specifically designed for motor starting and running. It acts as a "booster" and "stabilizer" for motors in applications like air conditioner compressors or washing machines, not only ensuring smooth motor startup but also balancing current and improving efficiency during operation.

This capacitor is made with metallized film and typically features an aluminum casing. Its core selling points are its electrical safety and stability in environments.

Core Specifications and Technical Characteristics:
Electrical Storage and Voltage Rating (25μF / 450V): The 25 microfarad (μF) capacity ensures the necessary instantaneous pulse strength for motor startup; the 450V rated voltage provides ample headroom, ensuring the capacitor remains stable and does not break down even during power grid fluctuations or voltage peaks.

S2-level Explosion-Proof Safety Standard: This is a key attribute of this model. It features an internal mechanical explosion-proof device. When a capacitor failure causes an increase in internal pressure, the explosion-proof structure of the casing will activate, forcibly cutting off the power supply. This physical power cut-off mechanism completely eliminates the risk of fire or explosion.

Self-healing: This is a "self-repairing" capability of the capacitor. If a small breakdown point occurs in the internal insulating film, the material will quickly oxidize and insulate the breakdown point, thus restoring performance. This means it can maintain a very long service life even under high load.

Impact Resistance and High Overload Capacity:  The product's structural design is reinforced to withstand the large current surges caused by frequent motor starts. It can withstand instantaneous high-intensity loads without significant temperature rise or loss due to current surges, ensuring the reliability of the equipment under harsh working conditions.

Wide Compatibility: This product is a common component in home appliance repair and manufacturing. Due to its low loss and high insulation resistance, it is an ideal choice for smooth operation of high-power motor equipment such as air conditioner compressors, automatic washing machines, and dryers.

INQUIRE
PRODUCT DESCRIPTION CONTACT US
Product Parameters:

Rated Voltage:

200VA~500VAC

Rated Frequency:

50/60Hz

Capacitance Range:

5～120μF

Capacitance Tolerance:

±5%

Tangent of loss angle tan δ

≤0.2% (20°C,100Hz)

Standing Voltage:



Between Terminals:

2.0Un/2s( No flashover or permanent breakdown)

Terminals to case:

≥2100VAC/2s(No dielectric breakdown or flashover)

Highest allowable voltage:

1.1times of rated voltage

Maximum allowable circuit:

1.3times of rated circuit

Class of safety protection:

S2

Executing Standards:

IEC60252、EN60252、GB/T 3667.1、UL810
Product Description:

This CBB65 25μF 450V S2 B capacitor is specifically designed for motor starting and running. It acts as a "booster" and "stabilizer" for motors in applications like air conditioner compressors or washing machines, not only ensuring smooth motor startup but also balancing current and improving efficiency during operation.

This capacitor is made with metallized film and typically features an aluminum casing. Its core selling points are its excellent electrical safety and stability in extreme environments.

Core Specifications and Technical Characteristics:
Electrical Storage and Voltage Rating (25μF / 450V): The 25 microfarad (μF) capacity ensures the necessary instantaneous pulse strength for motor startup; the 450V rated voltage provides ample headroom, ensuring the capacitor remains stable and does not break down even during power grid fluctuations or voltage peaks.

S2-level Explosion-Proof Safety Standard: This is a key attribute of this model. It features an internal mechanical explosion-proof device. When a capacitor failure causes an increase in internal pressure, the explosion-proof structure of the casing will activate, forcibly cutting off the power supply. This physical power cut-off mechanism completely eliminates the risk of fire or explosion.

Self-healing: This is a "self-repairing" capability of the capacitor. If a small breakdown point occurs in the internal insulating film, the material will quickly oxidize and insulate the breakdown point, thus restoring performance. This means it can maintain a very long service life even under high load.

Impact Resistance and High Overload Capacity:  The product's structural design is reinforced to withstand the large current surges caused by frequent motor starts. It can withstand instantaneous high-intensity loads without significant temperature rise or loss due to current surges, ensuring the reliability of the equipment under harsh working conditions.

Wide Compatibility: This product is a common component in home appliance repair and manufacturing. Due to its low loss and high insulation resistance, it is an ideal choice for smooth operation of high-power motor equipment such as air conditioner compressors, automatic washing machines, and dryers.
