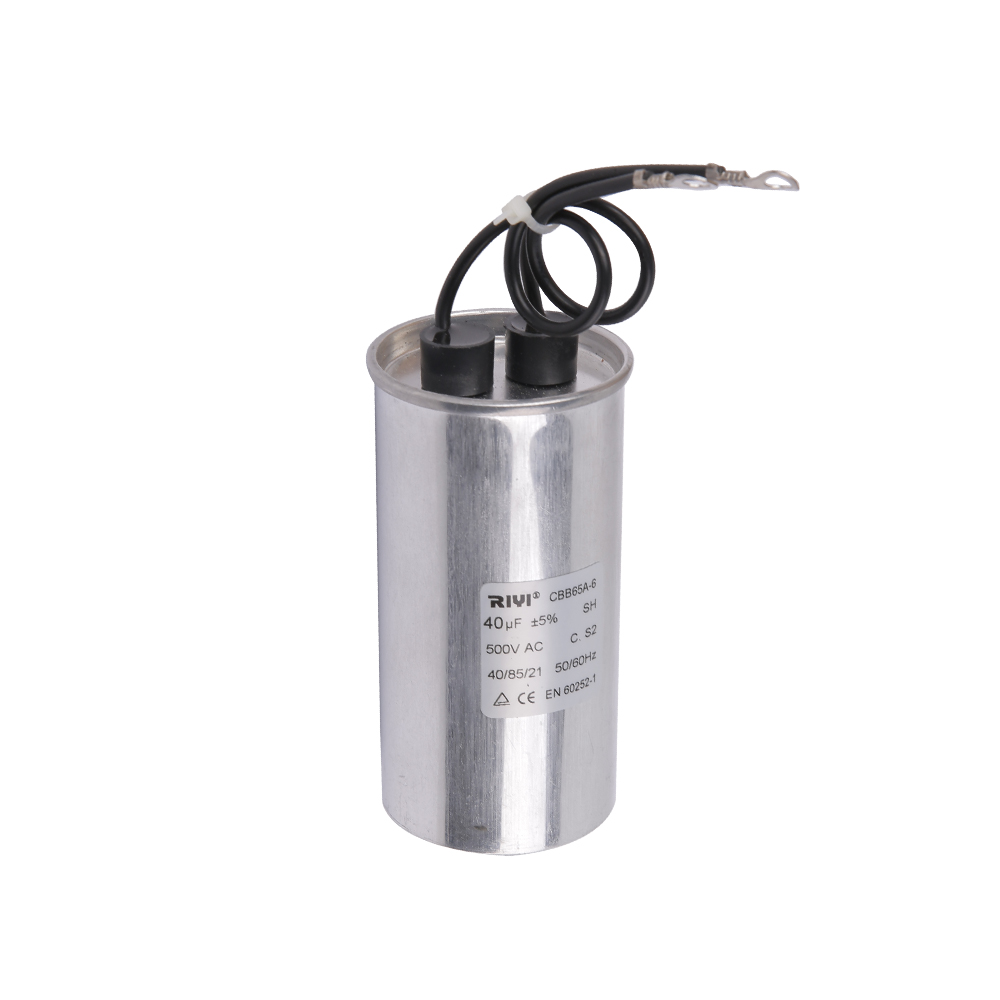

Cbb65 40 Uf 500v S2 C 85℃, Lead

This CBB65 40μF 500V S2 capacitor is the "starting heart" of motor-driven appliances (especially air conditioners, washing machines, etc.). By storing and releasing electrical energy, it provides the necessary rotational power for the motor, ensuring smooth and safe operation during startup and running.

Core Specifications and Performance
Energy Storage Parameters (40μF / 500V):  With a charge capacity of 40 microfarads, it can operate stably in a high-voltage environment of 500 volts. This high voltage resistance design provides ample power redundancy for frequent motor starts, effectively coping with the impact of voltage fluctuations.

Physical Architecture and Weather Resistance (85℃ / Lead):  It uses a leaded output structure for flexible installation. The core components are encapsulated in a housing with high heat dissipation capabilities, supporting continuous full-load operation in harsh high-temperature environments of 85℃, making it ideal for high-heat working environments such as air conditioner compressors.

Dynamic Self-healing: The internal dielectric material has excellent self-healing properties. Even if extreme instantaneous high voltage causes local breakdown, the material can automatically repair its electrical characteristics, preventing the device from being scrapped due to a single breakdown point, greatly extending the overall service life of the appliance.

S2 Class Explosion-proof Safety Standard:  It has a built-in dedicated explosion-proof pressure relief device. When the capacitor experiences abnormal heating due to overload or long-term fatigue, the device will actively cut off the circuit, containing the hazard within the housing and ensuring the overall electrical safety of household appliances.

High-Efficiency Current Throughput: It features extremely low dielectric loss and high insulation resistance. This means that very little heat is generated during energy conversion, demonstrating strong overload resistance and surge current tolerance, making the current surge during motor startup smoother.

INQUIRE
PRODUCT DESCRIPTION CONTACT US
Product Parameters:

Rated Voltage:

200VA~500VAC

Rated Frequency:

50/60Hz

Capacitance Range:

5～120μF

Capacitance Tolerance:

±5%

Tangent of loss angle tan δ

≤0.2% (20°C,100Hz)

Standing Voltage:



Between Terminals:

2.0Un/2s( No flashover or permanent breakdown)

Terminals to case:

≥2100VAC/2s(No dielectric breakdown or flashover)

Highest allowable voltage:

1.1times of rated voltage

Maximum allowable circuit:

1.3times of rated circuit

Class of safety protection:

S2

Executing Standards:

IEC60252、EN60252、GB/T 3667.1、UL810
