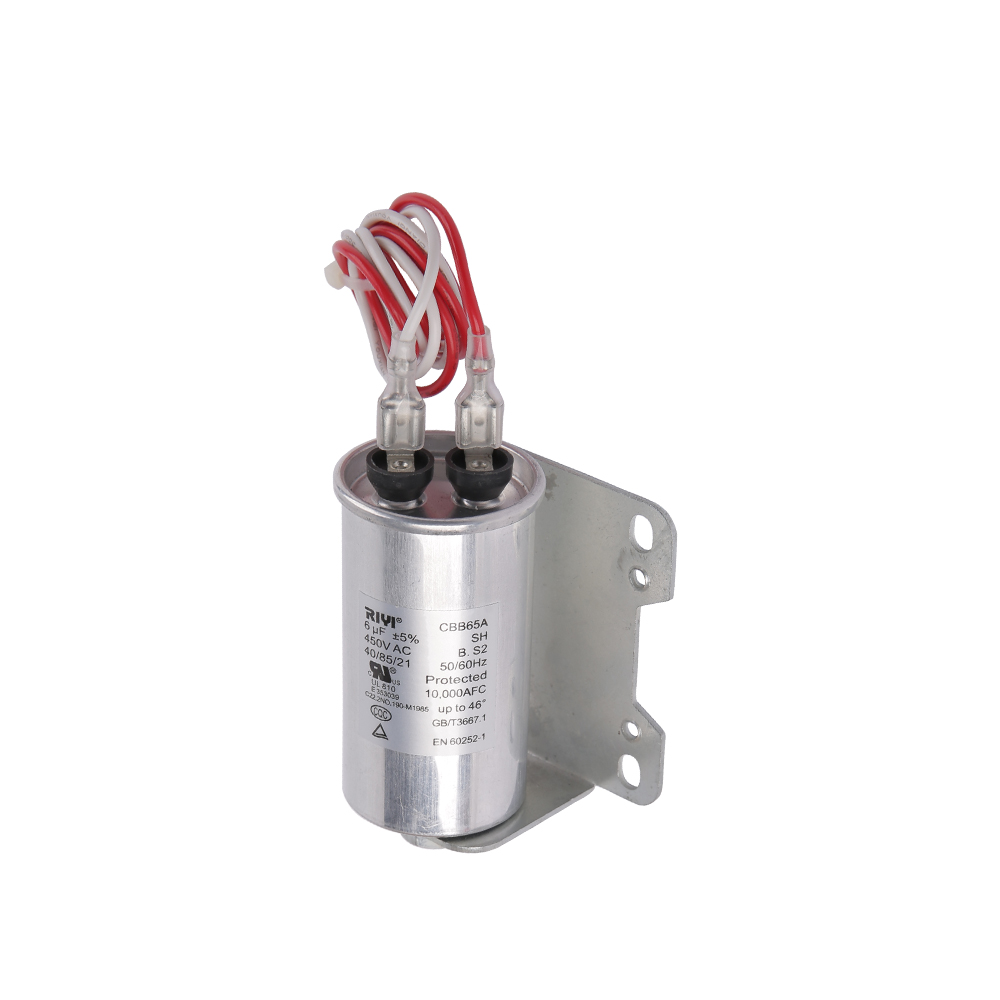

Cbb65 6uf 450v B S2 UL Insert With Lead, With Screw, With Mounting Plate

This CBB65 6μF 450V capacitor is a film capacitor specifically designed for motor starting and running. It primarily acts as an "energy storage and phase shifting" component, providing the necessary power support for air conditioner compressors or washing machines, ensuring sufficient torque at motor startup and maintaining stable operation.

Core Specifications and Technical Features:
Capacitance and Voltage Rating: The 6μF nominal capacitance combined with a 450V voltage rating ensures high charge storage stability in high-load AC circuits, effectively handling voltage fluctuations.

Physical Interface and Mounting Structure: This model uses an insert with lead connection method, greatly simplifying the wiring process. It features a fixing bolt and mounting plate at the bottom, a multi-point fixing design that ensures the capacitor remains stable and secure even in high-frequency vibration environments (such as during compressor operation).

Safety Protection Level (S2/UL/Explosion-proof):  It possesses S2-level explosion-proof safety performance. An integrated pressure-sensitive circuit breaker automatically disconnects the circuit if internal pressure becomes abnormal. Combined with UL certification, the component's safety under extreme overload conditions is verified by industry standards.

Self-healing and Dielectric Loss: Utilizing metallized polypropylene film technology, it boasts excellent self-healing capabilities. Even if the film experiences localized breakdown, it can quickly restore its insulation state, reducing maintenance frequency and extending the system's lifespan.

All-weather Adaptability: Optimized for complex operating conditions such as those found in air conditioners and dryers, this capacitor features improved insulation resistance and surge current resistance, maintaining consistent performance output regardless of humid environments or instantaneous high temperatures and pressures.
