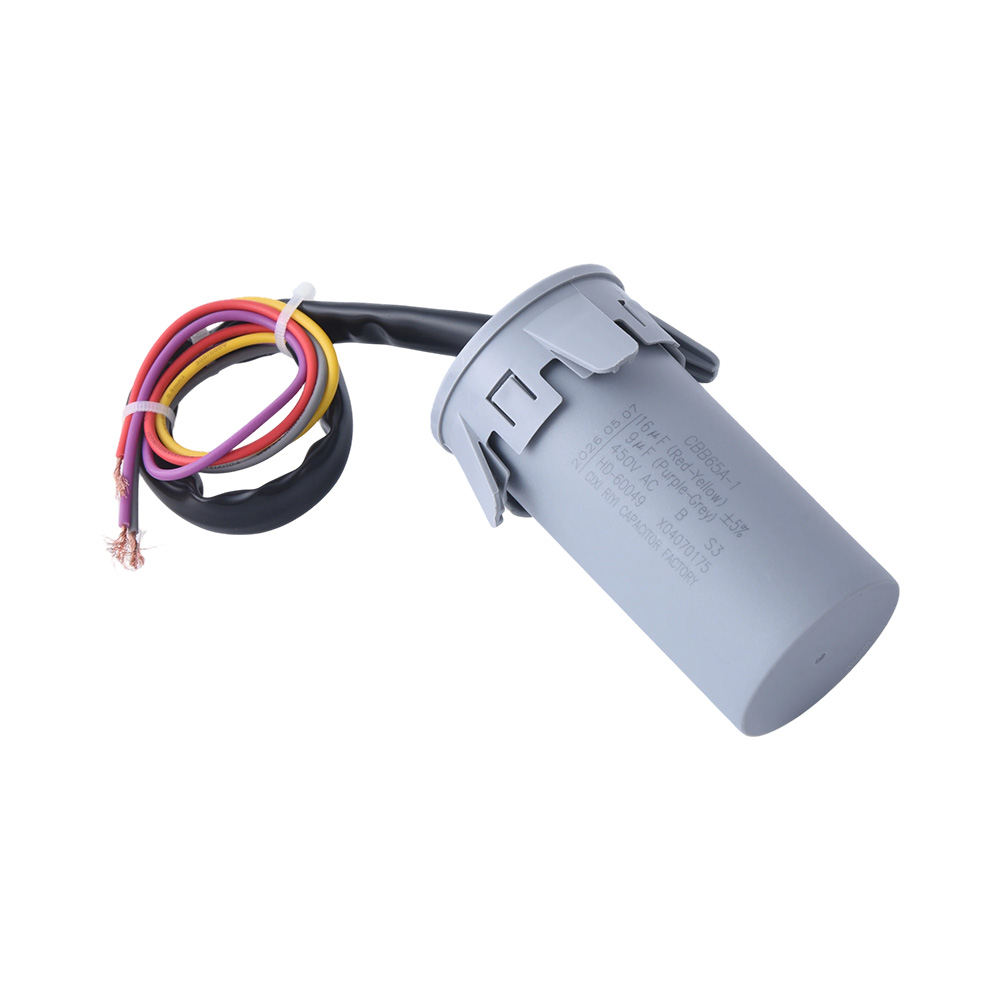

CBB65A 16μF(Red-Yellow)/9μF(Purple-Grey) 450V S3 Explosion-Proof Lead

CBB65A 16μF(Red-Yellow)/9μF(Purple-Grey) 450V S3 Explosion-Proof Lead: an explosion-proof dual run capacitor with wire leads. Color markings identify each section: Red-Yellow for the 16uF side and Purple-Grey for the 9uF side, so installers can match leads to the correct winding.

Key Features:
• Red-Yellow marks the 16uF section and Purple-Grey marks the 9uF section, so leads can be matched to the correct winding.
• A 450V S3 explosion-proof dual capacitor with wire leads.
• Metallized polypropylene film dielectric with self-healing ability: a small breakdown point clears itself instead of ending the capacitor's life.
• Minimal self-heating during long operation protects both the capacitor and nearby motor windings.
• Safety-protected construction gives added assurance in appliances installed in homes and light commercial sites.
• It withstands brief overloads without a sudden loss of capacitance.

Technical Specifications:
• Capacitance: 16uF (Red-Yellow) / 9uF (Purple-Grey); Rated voltage: 450V; Safety class: S3, explosion-proof; Connection: wire leads
• Ask us for the full parameter sheet and test data for this model.

Typical Applications:
• Air conditioners that use two windings or two motors.
• Dryers and other appliances with split run circuits.
• Service replacement where the original color scheme has to be matched.

Selection and Replacement Tips:
• Replace like for like by color code and uF values; swapped sections change motor behavior.
• Always compare capacitance (uF), rated voltage (V) and terminal type with the original part.
