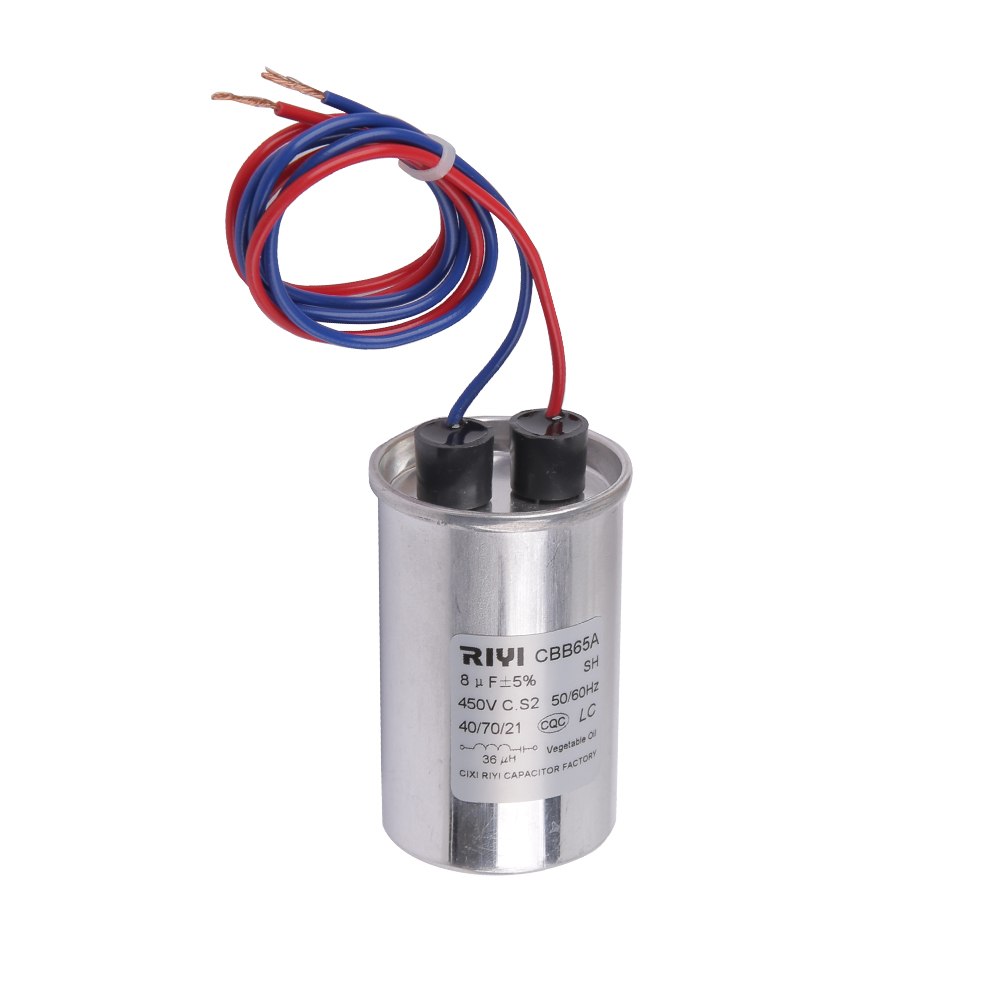

Cbb65 8uf 450v C S2 With Inductance, Lead

The CBB65 8μF 450V C S2 is a high-performance capacitor commonly used in AC motor drives. It is primarily responsible for providing the necessary phase shift and compensation during motor startup and operation, ensuring the smooth running of air conditioner compressors or washing machine motors.

Core Parameters and Specifications
Capacitance and Voltage Rating (8μF / 450V): This defines the capacitor's energy storage capacity and maximum operating voltage threshold. In AC circuits, this specification meets the continuous operation requirements of most household appliances.
Lead Design:  The leaded connection method facilitates flexible wiring and soldering within complex electrical appliances, enhancing installation versatility.

Electrical Performance and Loss
Low-Loss Operation: This component generates very little heat during energy conversion, meaning it will not overheat due to its own power consumption, thus ensuring the overall efficiency of the circuit.
Insulation and Self-Healing: It possesses extremely high insulation resistance and has a "self-healing" characteristic – even if a very small breakdown occurs in the internal dielectric, it can quickly restore its insulation state through a physical mechanism, preventing complete damage.


Safety Protection Level (S2 Standard)
Explosion-Proof Structure: It integrates a special pressure protection device. In extreme abnormal conditions or at the end of its lifespan, the device will prevent the casing from bursting through a physical disconnection, ensuring the safety of the equipment environment.
Overload and Surge Resistance: It can withstand the huge surge current generated during motor startup and maintains performance without degradation even under voltage fluctuations or excessive load.


Inductive Reactance Compensation (With Inductance)
Dynamic Stability: The design with inductive reactance characteristics provides better matching at specific frequencies, optimizing the motor's starting torque, reducing operating noise, and helping to filter out some interference in the circuit.


Industry Application Scenarios
This capacitor is a core component of high-efficiency motors and is widely embedded in power systems such as air conditioner compressors, automatic washing machines, and tumble dryers, playing a crucial role in starting assistance and current phase adjustment.

INQUIRE
PRODUCT DESCRIPTION CONTACT US
Product Parameters:

Rated Voltage:

200VA~500VAC

Rated Frequency:

50/60Hz

Capacitance Range:

5～120μF

Capacitance Tolerance:

±5%

Tangent of loss angle tan δ

≤0.2% (20°C,100Hz)

Standing Voltage:



Between Terminals:

2.0Un/2s( No flashover or permanent breakdown)

Terminals to case:

≥2100VAC/2s(No dielectric breakdown or flashover)

Highest allowable voltage:

1.1times of rated voltage

Maximum allowable circuit:

1.3times of rated circuit

Class of safety protection:

S2

Executing Standards:

IEC60252、EN60252、GB/T 3667.1、UL810
