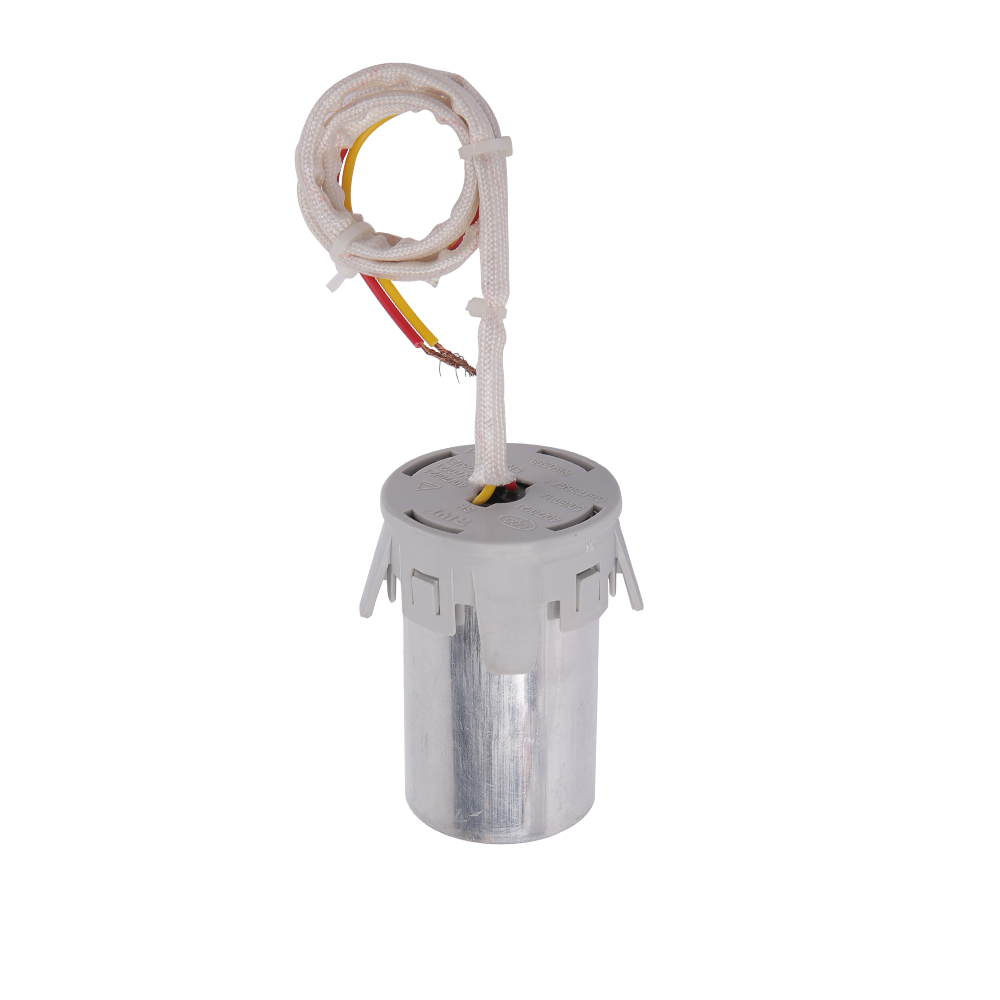

Cbb65 8uf 450v S2 B With Mounting Ferrule Lead

This CBB65 8μF 450V S2 class start-run capacitor is a core electronic component specifically designed for AC motors. Its main function is to provide the necessary phase shift during motor startup and ensure stable current and high efficiency during motor operation, acting as a "heart strengthener" for high-power appliances such as air conditioner compressors and washing machines.

Core Features Analysis
Operating Performance and Loss Control: The product uses high-quality dielectric materials with extremely low dielectric loss. During long-term operation, it generates minimal heat. This low-loss characteristic effectively reduces the overall power consumption of the equipment, ensuring the motor always operates in an ideal output state.

Self-Healing and Durability: As a high-performance capacitor, it possesses excellent self-healing technology. When instantaneous high-voltage breakdown occurs internally, the metal layer around the breakdown point quickly evaporates, restoring insulation at the short-circuit point. This "self-repair" capability greatly extends the component's lifespan in complex voltage environments.

Circuit Protection and Overload Support: It has strong resistance to surge current and overload tolerance. During motor startup or in situations with significant voltage fluctuations, the capacitor can withstand instantaneous power loads far exceeding normal levels, ensuring the circuit does not fail due to instantaneous surges.

Physical Safety Protection Mechanism: This model meets the S2 class safety and explosion-proof standard. It integrates a pressure-sensitive explosion-proof pressure relief device. If the capacitor generates internal pressure due to extreme abnormalities, the explosion-proof disc will disconnect the circuit first, eliminating the risk of explosion and providing physical safety isolation for the entire machine.

Mechanical Structure and Installation Details: The product is specially equipped with a mounting ferrule and lead wire design. The base not only enhances mechanical strength but also reduces the risk of loosening in long-term vibration environments; the lead wire design simplifies the wiring process and improves installation efficiency in confined spaces (such as next to air conditioner heat sinks).
